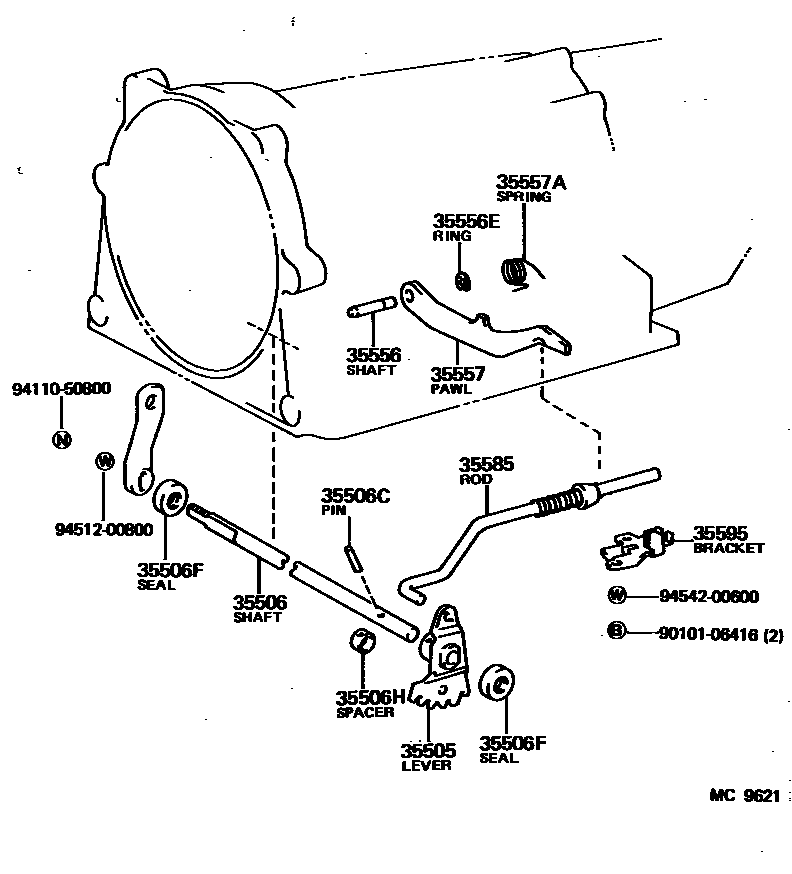

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22030iAE86..4FC198308-198312

main35505-22040iAE86..4FC198312-198707

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-40010iAE86..4FC198308-198707

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iAE86..4FC198308-198707

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001×2iAE86..4FC198308-198707

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iAE86..4FC198308-198707

35556SHAFT, PARKING LOCK PAWL

main35556-22010iAE86..4FC198308-198508

main35556-26010iAE86..4FC198508-198707

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iAE86..4FC198308-198707

35557PAWL, PARKING LOCK

main35557-35010iAE86..4FC198308-198707

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iAE86..4FC198308-198707

35585ROD, PARKING LOCK

main35501-22020iAE86..4FC198308-198707

35595BRACKET, PARKING LOCK PAWL

main35595-16010iAE86..4FC198308-198310

main35595-22020iAE86..4FC198310-198408

main35595-40010iAE86..4FC198408-198707

9010106416

main90101-06416

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

15 parts on this diagram · 2 diagrams in section
