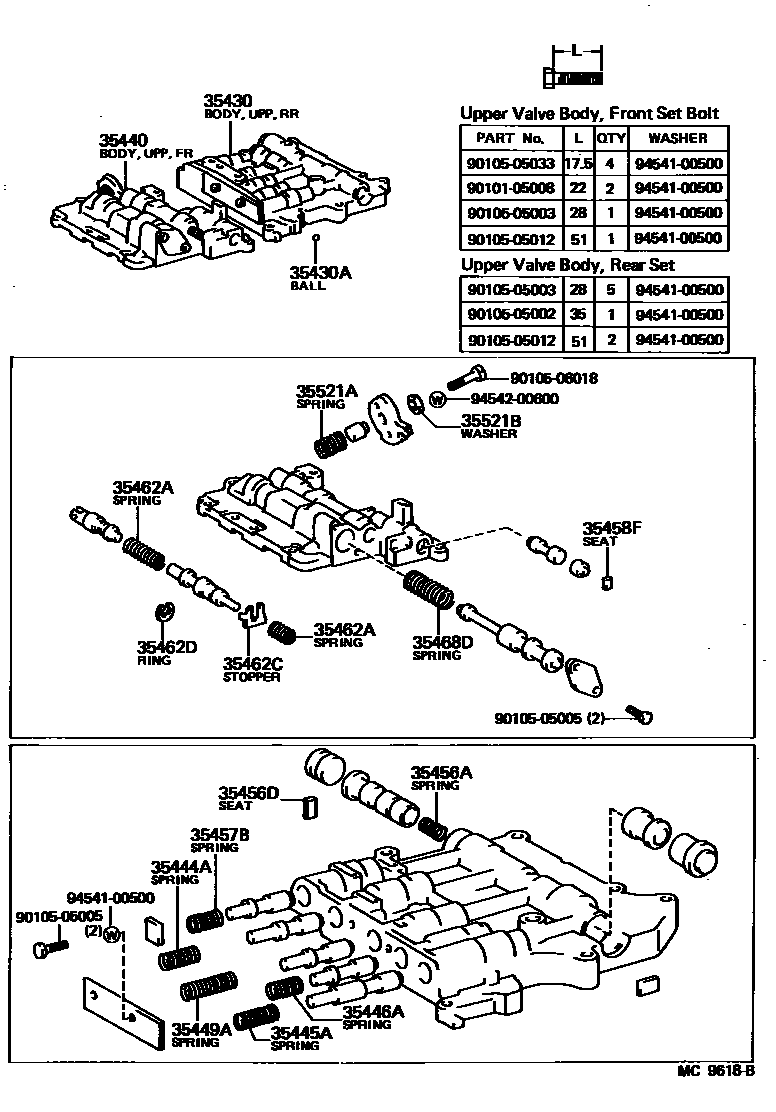

VALVE BODY & OIL STRAINER (ATM)
35430BODY ASSY, REAR UPPER VALVE
35430ABALL (FOR REAR UPPER VALVE BODY)
OD=5.535,RUBBER,OD=5.56,GUM
0D=5.56,OD=5.56,STEEL
35440BODY ASSY, FRONT UPPER VALVE
35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)
35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)
35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456DSEAT (FOR 2-3 SHIFT VALVE)
35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)
35458FSEAT (FOR CUT BACK VALVE)
35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)
L=19.24,SECONDARY,WD=0.71,CW=8
L=39.71,PRIMARY,WD=1.19,CW=11.5
35462CSTOPPER, VALVE VIBRATING
35462DRING, E (FOR THROTTLE VALVE)
35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35521ASPRING (FOR THROTTLE VALVE CAM RETURN)
35521BWASHER (FOR THROTTLE VALVE CAM SET)
9010105008
main90101-05008
9010505002
main90105-05002
9010505003
main90105-05003
9010505005
main90105-05005
9010505012
main90105-05012
9010505033
main90105-05033
9010506018
main90105-06018
9454100500
main94541-00500
9454200600
main94542-00600
26 parts on this diagram · 3 diagrams in section
