ALTERNATOR

0001 1 0002 1

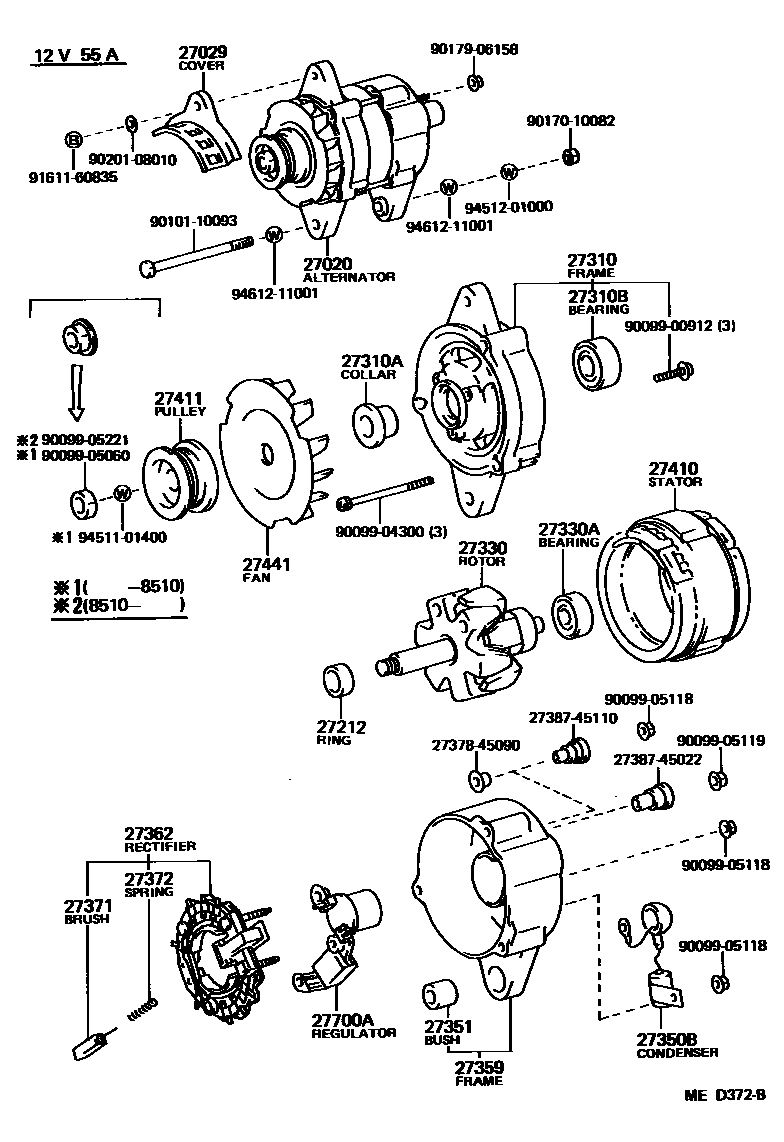

27020ALTERNATOR ASSY

main27060-16030i4AC..AE86198308-198707

12V 55A

main27060-16050i4AGEC..AE86198408-198507

12V 60A

main27060-16090i4AGEC..AE86198507-198608

12V 60A

main27060-16091i4AGEC..AE86198608-198707

12V 60A

27029COVER, ALTERNATOR

main27029-15012i4AC..AE86198308-198707

12V 55A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-15150i4AC..AE86198510-198707

12V 55A

main27412-45070i4AC..AE86198308-198510

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15120i4AC..AE86198501-198707

12V 55A

main27310-16080i4AGEC..AE86198408-198501

12V 60A

main27310-16081i4AGEC..AE86198501-198707

12V 60A

sub27310-11110

main27310-61070i4AC..AE86198308-198501

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i4AC..AE86198501-198510

12V 55A

main27412-16040i4AC..AE86198510-198707

12V 55A

main27412-31040i4AC..AE86198308-198501

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i4AC..AE86198308-198501

12V 55A

main90099-10142i4AC..AE86198501-198707

12V 55A

sub90099-10223

main90099-10152i4AGEC..AE86198408-198501

12V 60A

main90099-10159i4AGEC..AE86198501-198707

12V 60A

sub90099-10199

27330ROTOR ASSY, ALTERNATOR

main27330-10020i4AGEC..AE86198501-198707

12V 60A

sub27330-10021

main27330-43040i4AC..AE86198308-198707

12V 55A

main27330-63041i4AGEC..AE86198408-198501

12V 60A

sub27330-10020

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i4AC..AE86198308-198707

12V 55A

main90099-10140i4AGEC..AE86198408-198707

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i4AC..AE86198308-198707

12V 55A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4AC..AE86198308-198707

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16050i4AC..AE86198308-198707

12V 55A

main27359-16081i4AGEC..AE86198408-198707

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-63030i4AC..AE86198308-198707

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011i4AC..AE86198308-198707

12V 55A

main27371-63020i4AGEC..AE86198408-198707

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i4AC..AE86198308-198707

12V 55A

main27372-63020i4AGEC..AE86198408-198501

12V 60A

sub27372-87501

main27372-72100i4AGEC..AE86198501-198707

12V 60A

sub27372-63020

27410STATOR ASSY, ALTERNATOR

main27410-72040i4AC..AE86198308-198707

12V 55A

27411PULLEY, ALTERNATOR

main27411-15110i4AC..AE86198308-198707

12V 55A

main27411-16010i4AGEC..AE86198408-198501

12V 60A

main27411-16011i4AGEC..AE86198501-198507

12V 60A

main27411-63081i4AGEC..AE86198507-198707

12V 60A

sub27411-16180

27441FAN, ALTERNATOR

main27441-63030i4AC..AE86198308-198707

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i4AGEC..AE86198408-198707

12V 60A

sub27700-70030

main27700-63030i4AC..AE86198308-198707

12V 55A

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009905221

main90099-05221

9010110093

main90101-10093

9017010082

main90170-10082

9017906158

main90179-06158

9020108010

main90201-08010

9161160835

main91611-60835

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

35 parts on this diagram · 2 diagrams in section
