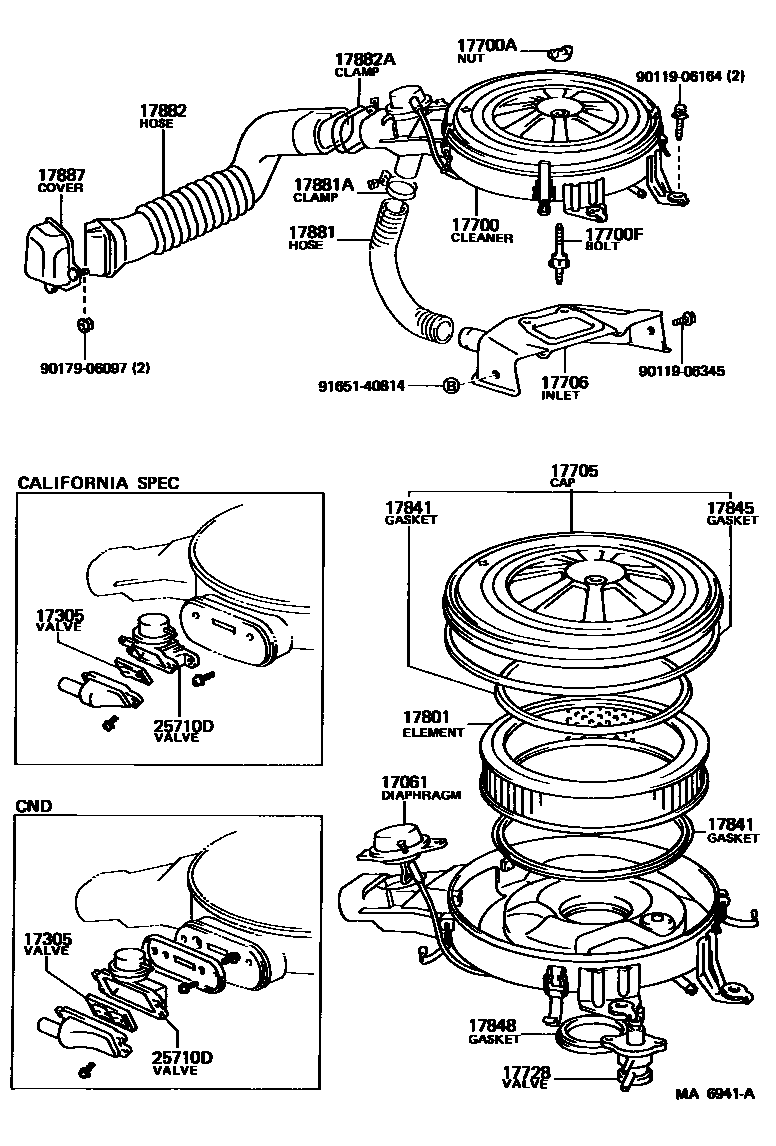

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
17305VALVE SUB-ASSY, REED
CALIFORNIA SPEC
CALIFORNIA SPEC
17700CLEANER ASSY, AIR
CALIFORNIA SPEC
CALIFORNIA SPEC
17700ANUT, WING(FOR AIR CLEANER)
17700FBOLT, STUD(FOR AIR CLEANER SETTING)
17705CAP SUB-ASSY, AIR CLEANER
17706INLET SUB-ASSY, AIR CLEANER, NO.2
17728VALVE, THERMOSTATIC
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
*G,L=1060
17848GASKET, AIR CLEANER TO CARBURETOR
sub17848-10020
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
AIR FLOW METER SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17887COVER, AIR CLEANER HOSE
25710DVALVE ASSY, AIR SWITCHING
CALIFORNIA SPEC
CALIFORNIA SPEC
9011906164
main90119-06164
9011906345
main90119-06345
9017906097
main90179-06097
9165140814
main91651-40814
22 parts on this diagram · 2 diagrams in section
