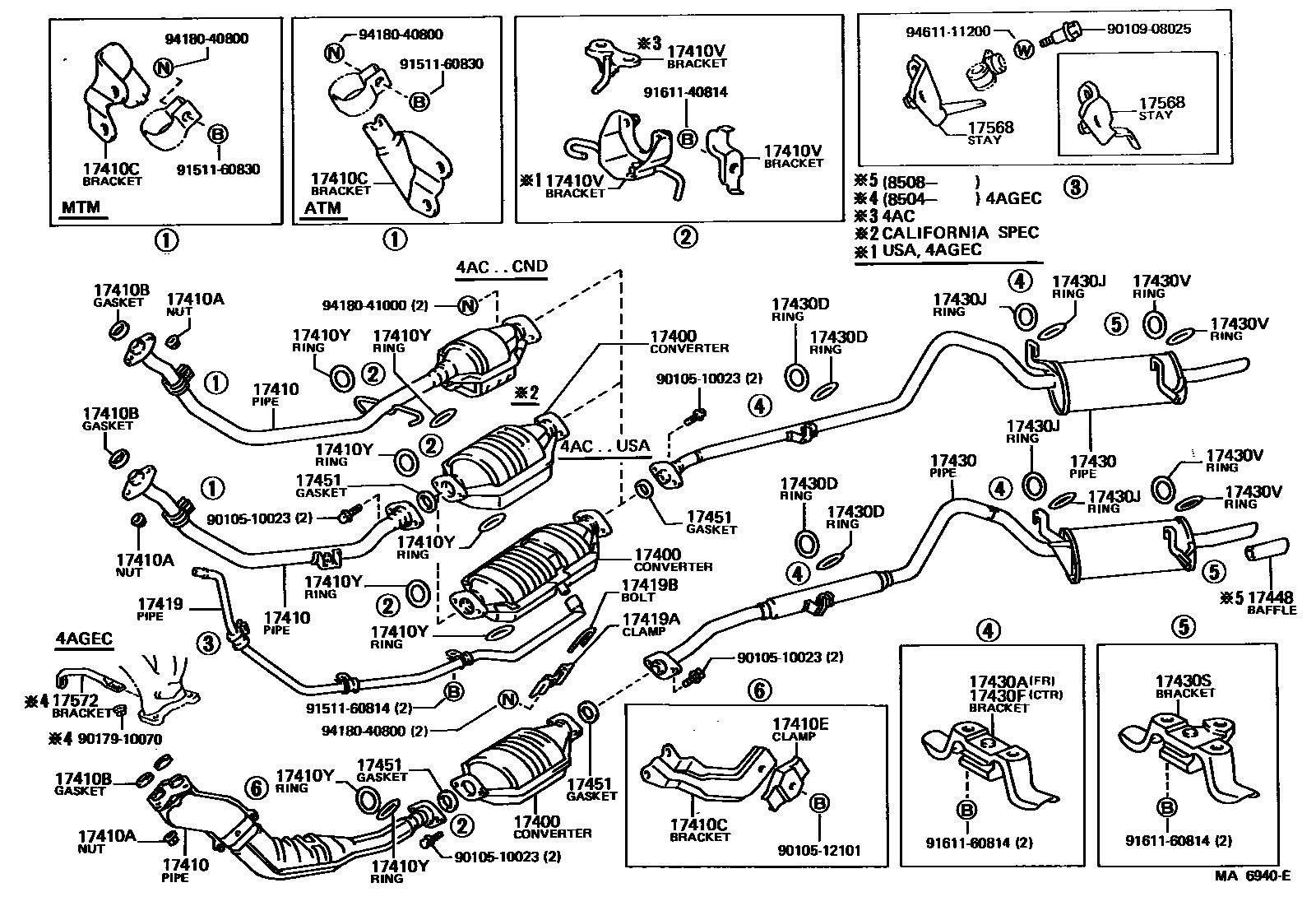

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-15021i4AC..AE86..SR5..USA198508-198608

CALIFORNIA SDEC

main18450-15040i4AC..AE86..USA198308-198608

main18450-15110i4AC..AE86..SR5..USA198608-198707

CALIFORNIA SPEC

main18450-15120i4AC..AE86..USA198608-198707

main18450-16050i4AGEC..AE86198408-198707

17410PIPE ASSY, EXHAUST, FRONT

main17410-15140i4AC..AE86..USA198308-198707

main17410-16010i4AGEC..AE86198408-198508

main17410-16011i4AGEC..AE86198508-198707

main17410-16130i4AC..AE86..CND198308-198707

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×2i4AC..AE86198308-198404

main90179-10070×3i4A#..AE86198404-198707

17410BGASKET, EXHAUST PIPE

main90917-06004×2i4A#..AE86198308-198707

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-15090i4AC..AE86..5F198308-198707

main17571-15100i4AC..AE86..4FC198308-198707

main17571-16130i4AGEC..AE86198408-198707

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17578-15031i4AGEC..AE86198408-198707

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-16010i4AGEC..AE86198408-198707

CTR

main17503-16030i4AC..AE86..5F..USA198308-198707

CTR

main17503-16040i4AC..AE86..4FC..USA198308-198707

CTR

main17505-16010i4AC..AE86..4FC198308-198707

RH

main17588-16010i4A#..AE86198308-198707

LH

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main90301-36001×2i4A#..AE86198308-198707

17419PIPE, CONVERTER AIR INLET

main17409-16010i4AC..AE86..USA198308-198707

17419ACLAMP, NO.1(FOR CONVERTER AIR INLET PIPE)

main17578-15020i4AC..AE86..USA198308-198707

17419BBOLT, U(FOR CONVERTER AIR INLET PIPE)

main90117-08022i4AC..AE86..USA198308-198707

17430PIPE ASSY, EXHAUST, TAIL

main17430-16020i4AC..AE86..USA198308-198508

main17430-16030i4AC..AE86..USA198308-198508

CALIFORNIA SPEC

main17430-16040i4AC..AE86..CND; 4AC..AE86..USA198308-198508

COLD SPEC

main17430-16210i4AGEC..AE86198408-198508

main17430-16240i4AC..AE86..USA198508-198707

main17430-16250i4AC..AE86..SR5..USA198606-198707

CALIFORNIA SPEC & COLD SPEC

main17430-16280i4AC..AE86..CND; 4AC..AE86..USA198508-198707

COLD SPEC

main17430-16320i4AGEC..AE86198508-198707

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-13020i4A#..AE86198308-198707

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-36001×2i4A#..AE86198308-198707

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17506-13020i4A#..AE86198308-198707

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207×2i4AC..AE86198308-198707

main90301-36001×2i4AGEC..AE86198408-198707

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-13010i4A#..AE86198308-198707

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207×2i4AC..AE86198308-198707

main90301-36001×2i4AGEC..AE86198408-198707

17448BAFFLE, TAILPIPE

main17406-70010i4AGEC..AE86198508-198611

main17406-79025i4AGEC..AE86198611-198707

17451GASKET, EXHAUST PIPE

main90917-06012×2i4A#..AE86198308-198707

17568STAY, EXHAUST PIPE SUPPORT

main17568-15030i4AC..AE86..5F..USA198308-198707

main17568-15040i4AC..AE86..4FC..USA198308-198707

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-16010i4AGEC..AE86198504-198707

9010510023

main90105-10023

9010512101

main90105-12101

9010908025

main90109-08025

9017910070

main90179-10070

9151160814

main91511-60814

9151160830

main91511-60830

9161140814

main91611-40814

9161160814

main91611-60814

9418040800

main94180-40800

9418041000

main94180-41000

9461111200

main94611-11200

33 parts on this diagram · 1 diagram in section
