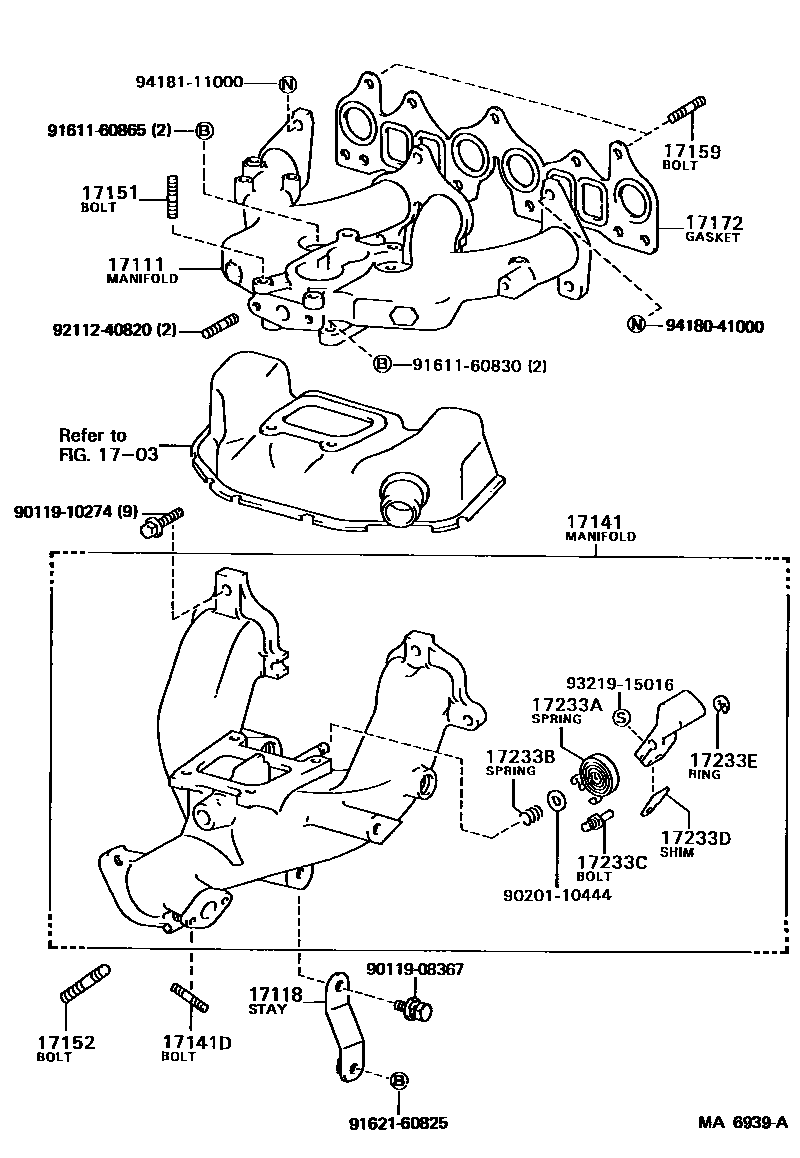

MANIFOLD

0001 1 0002 1

1703AIR CLEANER

→ Go to FIG 17-03

17111MANIFOLD, INTAKE

main17101-16030i4AGEC..AE86198408-198707

main17111-16010i4AC..AE86198308-198707

17118STAY, MANIFOLD

main17118-16010i4AC..AE86198308-198707

17141MANIFOLD, EXHAUST

main17140-15070i4AC..AE86..SR5..USA198508-198707

CALIFORNIA SPEC

main17140-15080i4AC..AE86198308-198707

main17141-16110i4AGEC..AE86198408-198503

main17141-16111i4AGEC..AE86198503-198707

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128×2i4AC..AE86198308-198707

main90116-08168×2i4AGEC..AE86198408-198707

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main92112-40832×4i4AC..AE86198308-198707

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058×4i4A#..AE86198308-198707

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08218×2i4AGEC..AE86198502-198707

INTAKE MANIFOLD

main90116-10037×2i4AGEC..AE86198408-198707

EXHAUST MANIFOLD

main92112-61032×2i4AC..AE86198308-198707

L=44,S=12 & 20

main92122-60850×2i4AGEC..AE86198408-198502

INTAKE MANIFOLD

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-15010i4AC..AE86198308-198707

17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)

main90510-06001i4AC..AE86198308-198707

17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)

main90501-08022i4AC..AE86198308-198707

17233CBOLT(FOR COUNTER WEIGHT)

main90109-10045i4AC..AE86198308-198707

17233DSHIM(FOR COUNTER WEIGHT)

main90910-10005i4AC..AE86198308-198707

17233ERING, E(FOR COUNTER WEIGHT)

main96160-00800i4AC..AE86198308-198707

9011908367

main90119-08367

9011910274

main90119-10274

9020110444

main90201-10444

9161160830

main91611-60830

9161160865

main91611-60865

9162160825

main91621-60825

9211240820

main92112-40820

9321915016

main93219-15016

9418041000

main94180-41000

9418111000

main94181-11000

24 parts on this diagram · 2 diagrams in section
