V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02117i4AC..AE86..USA198308-198707

W/COOLER,BANDO

main90916-02126i4AC..AE86198308-198707

main90916-02128i4AC..AE86..USA198308-198707

W/COOLER,MITSUBOSHI

main90916-02148i4AGEC..AE86198504-198707

main99365-50830i4AGEC..AE86198408-198504

44310ABELT, V(FOR VANE PUMP)

main99332-00805iAE86..DX,SR5198308-198707

main99365-50910iAE86..GTS198408-198707

L=910

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02189iAE86..GTS198701-198707

W/PS

main99322-00860iAE86..DX,SR5198308-198707

main99365-01040iAE86..GTS198408-198701

L=1040,W/PS

main99365-50800iAE86..GTS198408-198707

L=800

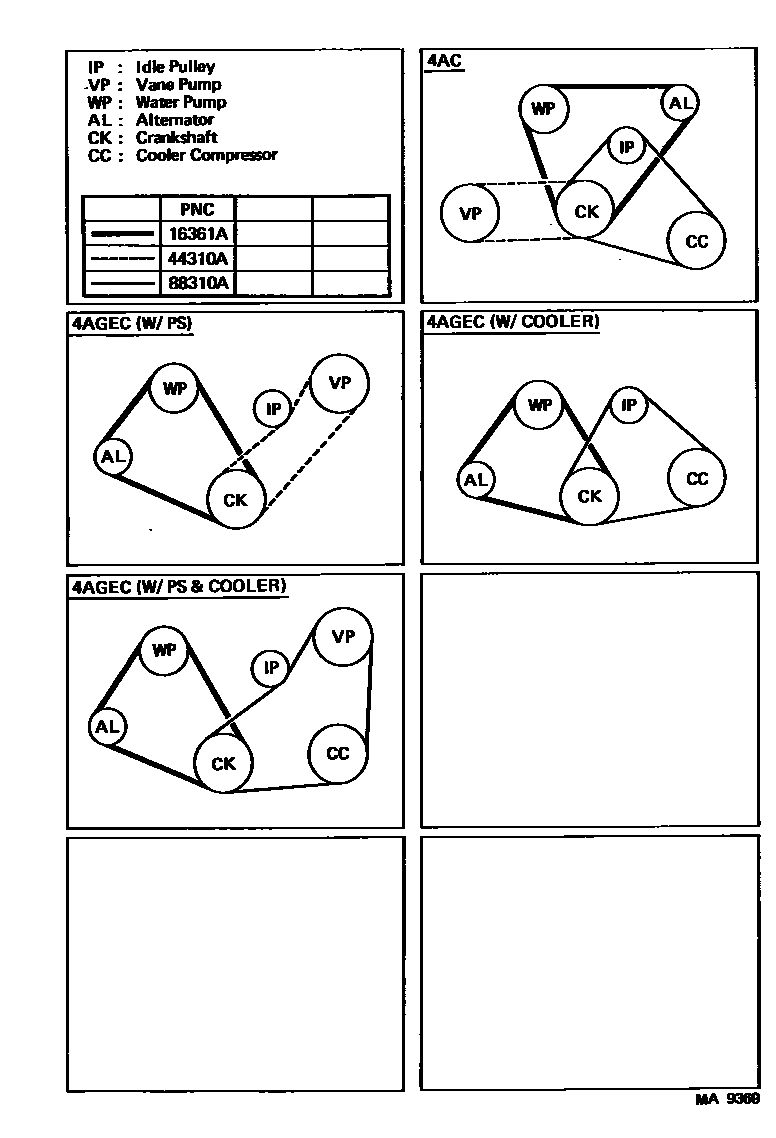

3 parts on this diagram · 1 diagram in section
