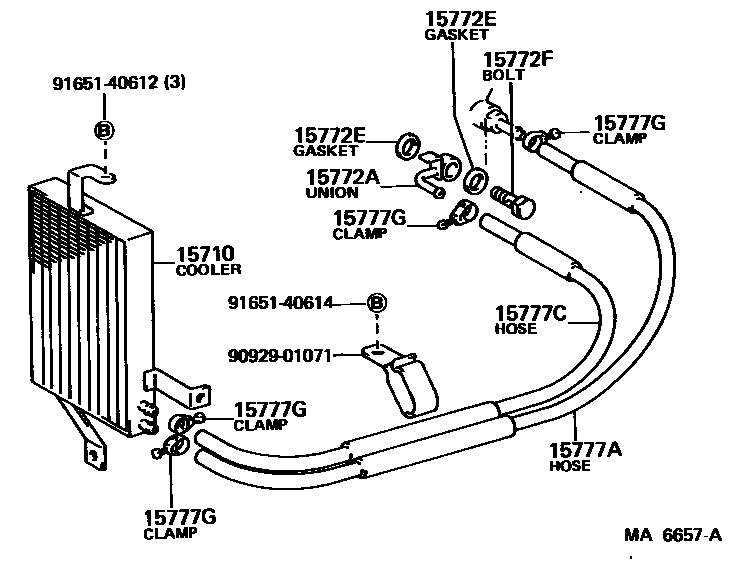

ENGINE OIL COOLER

15710COOLER ASSY, OIL

main15710-12010i4AGEC..AE86198408-198707

15772AUNION(FOR OIL PIPE)

main90405-12004i4AGEC..AE86198408-198707

15772EGASKET(FOR OIL PIPE)

main90430-12009×2i4AGEC..AE86198408-198505

main90430-12018×2i4AGEC..AE86198505-198707

15772FBOLT, UNION(FOR OIL PIPE)

main90401-12009i4AGEC..AE86198408-198707

15777AHOSE, OIL COOLER

main15777-16010i4AGEC..AE86198408-198707

15777CHOSE, OIL COOLER

main15778-12020i4AGEC..AE86198408-198707

15777GCLAMP OR CRIP, HOSE

main90460-01001×4i4AGEC..AE86198408-198707

9092901071

main90929-01071

9165140612

main91651-40612

9165140614

main91651-40614

10 parts on this diagram · 1 diagram in section
