HEATING & AIR CONDITIONING - VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

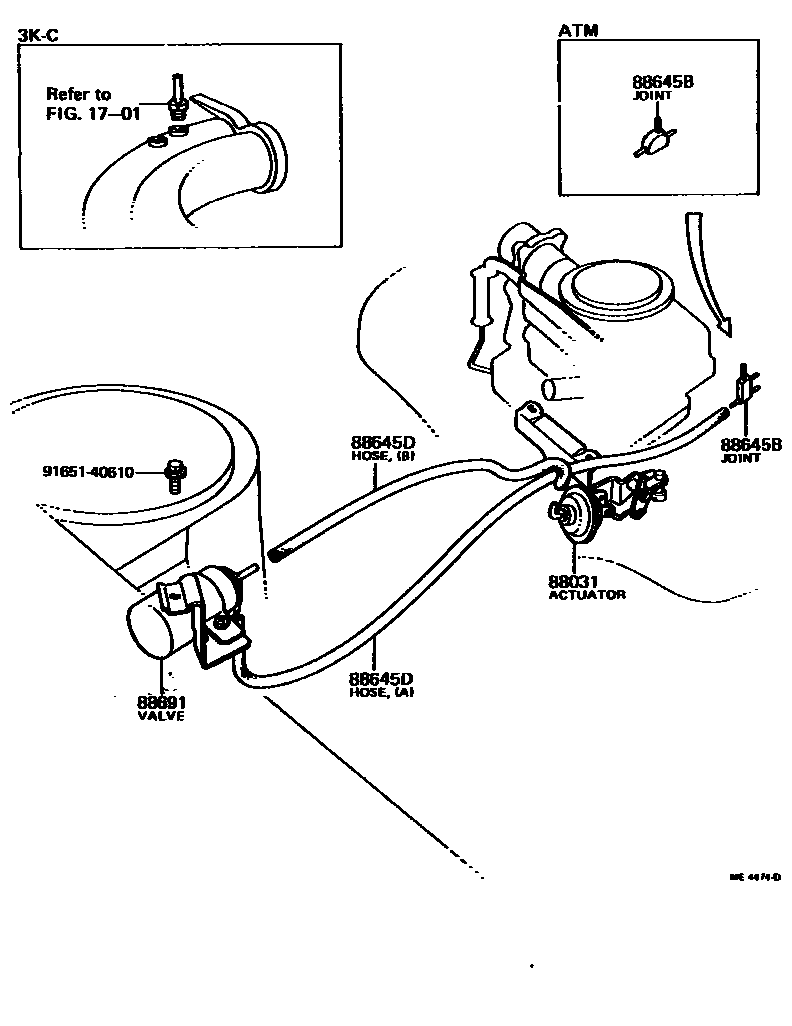

88031ACTUATOR SET, IDLE-UP

main88031-12031iTE3#,51197508-197608

main88031-12032iTE3#,51197608-197708

main88031-12060iTE3#,51..USA197708-197908

main88031-12070iKE30..USA197708-197908

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iTE31,37,51..A40197608-197708

main90414-04002iTE3#,51..MTM197608-197708

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10030iTE3#,51197608-197708

L=300,MARK=#0

main95411-10060iTE3#,51..USA197708-197908

*H,L=450,MARK=#0,(A)

main95411-19930iTE3#,51197508-197701

*H,L=280,MARK=#*,(B)

main95411-19960iTE3#,51..USA197708-197908

*H,L=330,MARK=#*,(B)

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-12011iTE3#,51197508-197708

main88690-12110iKE30..USA197708-197908

9165140610

main91651-40610

6 parts on this diagram · 1 diagram in section
