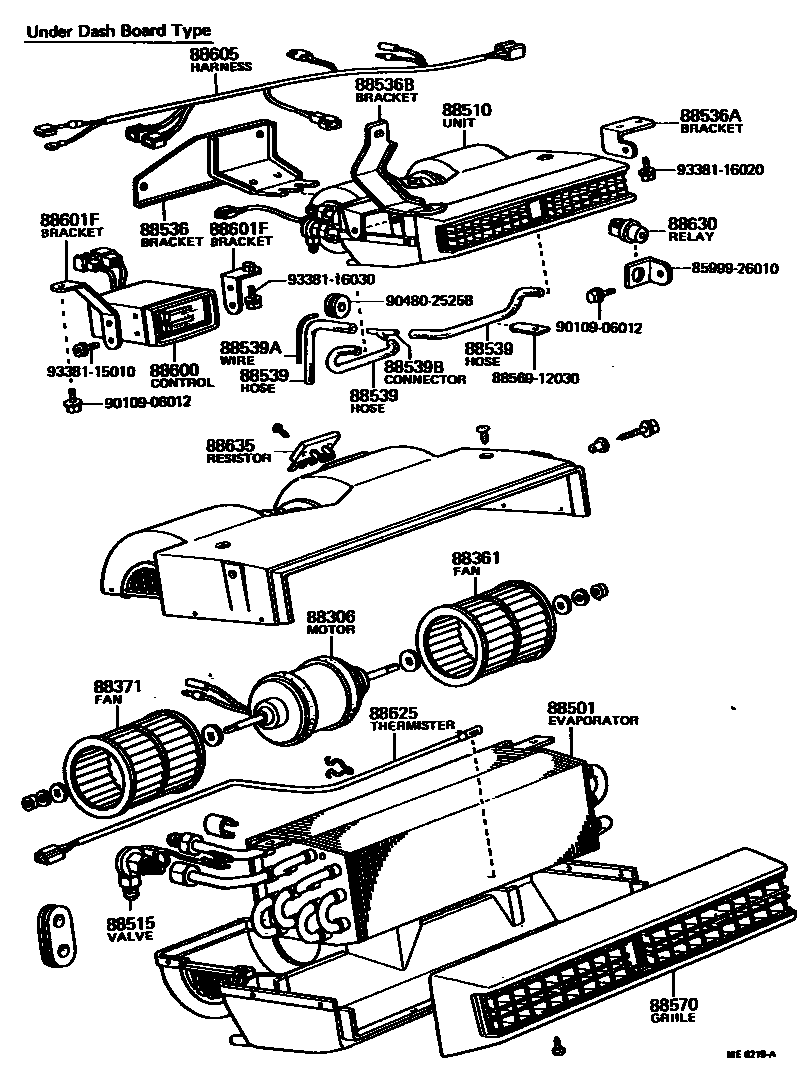

HEATING & AIR CONDITIONING - COOLER UNIT
88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88361FAN, COOLER BLOWER, NO.1
88371FAN, COOLER BLOWER, NO.2
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88510UNIT ASSY, COOLER
88515VALVE, COOLER EXPANSION
88536BRACKET, COOLING UNIT, NO.1
88536ABRACKET, COOLING UNIT, NO.2
88536BBRACKET, COOLING UNIT, NO.3
88539HOSE, COOLER UNIT DRAIN, NO.1
88539AWIRE, DRAIN HOSE(FOR COOLER)
88539BCONNECTOR, COOLER DRAIN HOSE
88570GRILLE SUB-ASSY, COOLER AIR OUTLET
88600CONTROL ASSY, AIR CONDITIONER
88601FBRACKET, COOLER CONTROL SWITCH
LH.
RH.
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88625THERMISTOR, COOLER, NO.1
88630RELAY ASSY, COOLER
88635RESISTOR, COOLER UNIT BLOWER
8599926010BRACKET, COMBINATION RELAY
main85999-26010
8856912030CLAMP (FOR COOLER RELAY)
main88569-12030
9010906012
main90109-06012
9048025258
main90480-25258
9338115010
main93381-15010
9338116020
main93381-16020
9338116030
main93381-16030
26 parts on this diagram · 3 diagrams in section
