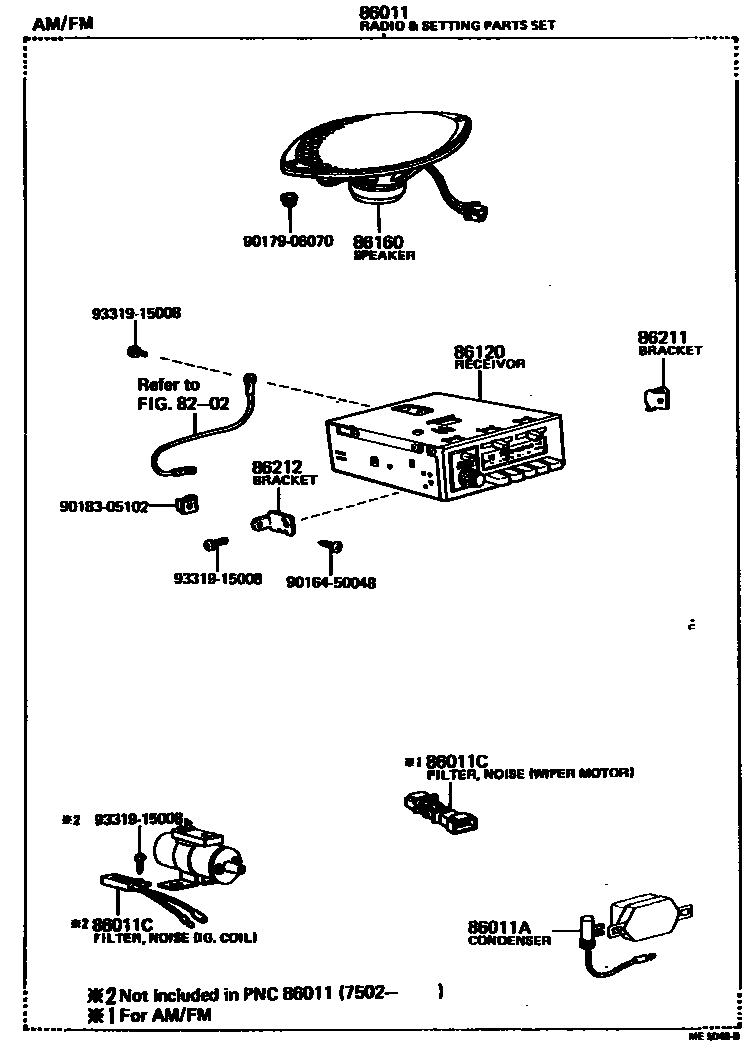

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86011RADIO & SETTING PARTS SET

main86011-19015197408-197701

main86011-19045197408-197608

main86011-19046197608-197701

main86011-19105197701-197908

main86011-19135197701-197908

main86011-19155197708-197908

86011ACONDENSER, RADIO SETTING

main90980-04010197408-197908

86011CFILTER, NOISE

main90980-05009197502-197701

main90980-05018197408-197502

main90980-05019197408-197908

main90980-05028197701-197908

86120RECEIVER ASSY, RADIO

main86120-12090197408-197701

main86120-12120197408-197608

main86120-12121197608-197701

main86120-12190197701-197704

main86120-12191197704-197908

main86120-12200197701-197908

main86120-12220197708-197908

main86120-14071197701-197704

main86120-14072197704-197905

86160SPEAKER ASSY, FRONT NO.1

main86160-12050197408-197908

main86160-12060197512-197908

86211BRACKET, RADIO, NO.1

main86201-12010197701-197908

main86211-12020197701-197908

main86211-12030197701-197908

main86214-12010197408-197701

86212BRACKET, RADIO, NO.2

main86212-12020197701-197908

main86212-12030197701-197908

main86214-12020197408-197701

9016450048

main90164-50048

9017906070

main90179-06070

9018305102

main90183-05102

9331915006

main93319-15006

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
