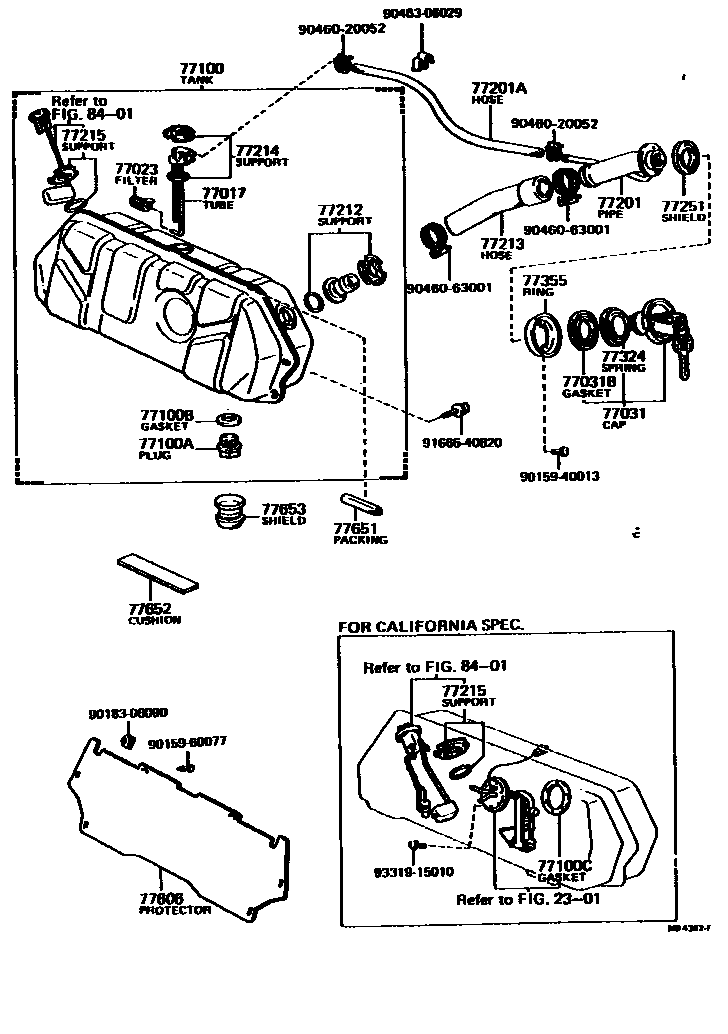

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

2301FUEL PUMP & PIPE

→ Go to FIG 23-01

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12051iKE30..CND197708-197908

main77017-12051iKE3#..DLX,STD;KE30..K40..2D..USA197707-197708

CANADA SPEC.

main77017-12062iTE31,37;KE30,TE51..(CP,SED)..USA197707-197908

main77017-12070iTE51..LB197603-197707

main77017-12071iTE51..LB197707-197809

main77017-12080iKE50197701-197707

main77017-12081iKE50197707-197908

main77017-12160iTE51..LB197809-197908

main77203-13031iTE38..CND197708-197908

main77203-13042iTE38..USA197708-197908

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iKE30,50,TE31,37,51197707-197908

77031CAP ASSY, FUEL TANK

main69058-12010iKE3#,TE31,37197408-197505

main69058-12011iKE3#,TE31,37197505-197508

main69058-12030iKE3#,50,TE3#,51197508-197908

main69058-13010iTE38197408-197508

main69058-13020iTE38197508-197908

main77310-12052iKE3#,50,TE3#,51197506-197708

L/KEY

main77310-12080iKE30,50,TE3#,51197708-197908

L/KEY

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iTE38197408-197908

main77316-12040iKE3#,TE3#,51197506-197608

L/KEY

main77316-12050iTE38197708-197908

L/KEY

main77316-12050iKE3#,50,TE31,37,51197608-197908

main77316-12060iKE3#,50,TE3#,51197608-197708

L/KEY

77100TANK ASSY, FUEL

main77100-12901iKE30,TE31,37..CND197708-197908

main77100-12901iKE3#..DLX,STD;KE30..K40..2D..USA197408-197708

CANADA SPEC.

main77100-12904iTE31,37197408-197508

main77100-12907iTE31,37197408-197508

FOR CALIFORNIA SPEC.

main77100-12908iKE30..USA197508-197908

main77100-12909iTE51..CP197608-197701

CAL.& H.A.

main77100-12909iTE51..CP197603-197608

FOR CALIFORNIA SPEC.

main77100-12909iTE37..USA197508-197701

main77100-12910iTE31,37,51..CP,HT,SED197508-197608

FOR CALIFORNIA SPEC.

main77101-12900iKE50,TE51..LB197603-197908

main77101-13021iTE38197409-197508

main77101-13022iTE38197508-197708

main77101-13023iTE38..USA197708-197905

main77101-13024iTE38..USA197905-197908

main77101-13030iTE38197408-197409

main77101-13041iTE38..CND197708-197905

main77101-13042iTE38..CND197905-197908

main77101-13050iTE38197408-197701

FOR CALIFORNIA SPEC.

77100APLUG(FOR FUEL TANK)

main90105-12018iKE3#,TE3#,51197408-197908

main90341-24036iTE38197905-197908

77100BGASKET(FOR FUEL TANK)

main90430-12038iKE3#,TE3#197408-197507

main90430-12245iKE3#,TE3#,51197507-197908

main90430-24047iTE38197905-197908

77100CGASKET, FUEL SUCTION TUBE, SET

main77169-12010iTE3#,51197408-197908

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12100iKE3#,TE31,37197408-197608

main77201-12120iTE51..CP..CND197603-197808

main77201-12120iTE51..CP197608-197708

CANADA SPEC.

main77201-12131iKE30..K40..2D..USA;KE3#,TE31,37..DLX,STD197608-197708

CANADA SPEC.

main77201-12131iKE30,TE31,37..CND197708-197808

main77201-12141iTE31,37197408-197608

FOR CALIFORNIA SPEC.

main77201-12142iKE30,TE31,37..DLX,SPL,SR5197608-197708

USA SPEC.

main77201-12142iTE31,37;KE30..USA197708-197908

main77201-12180iTE51..CP197603-197608

FOR CALIFORNIA SPEC.

main77201-12181iTE51..CP197608-197908

main77201-12190iTE51..LB197603-197808

main77201-12190iKE50,TE51..LB197608-197708

CANADA SPEC.

main77201-12200iTE51..LB197608-197908

main77201-12200iTE51..LB197603-197608

FOR CALIFORNIA SPEC.

main77201-12220iKE30..CND197808-197908

main77201-13050iTE38197408-197505

main77201-13051iTE38197608-197708

CANADA SPEC.

main77201-13051iTE38197505-197808

main77201-13061iTE38197408-197608

FOR CALIFORNIA SPEC.

main77201-13061iTE38..USA197608-197908

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-18002iKE3#,TE31,37,51..CP,HT,SED197408-197908

main90445-18002iKE30,TE31,37..DLX,SPL,SR5197608-197708

USA SPEC.

main90445-18016iTE38197504-197510

main90445-18019iTE38197411-197504

main90445-18023iKE30,TE31,37..CND197708-197808

main90445-18023iKE30..K40..2D..USA;KE3#,TE31,37..DLX,STD197608-197708

CANADA SPEC.

main90445-18028iTE38197510-197908

main90445-18868iKE50,TE51..LB197408-197908

77212SUPPORT KIT, FUEL TANK INLET

main04772-12020iKE3#,TE31,37,51..CP,HT,SED197408-197908

77213HOSE, FUEL TANK SUB INLET

main77213-12050iKE3#,TE31,37197408-197908

main77213-12050iKE30,TE31,37..DLX,SPL,SR5197608-197708

USA SPEC.

main77213-12060iTE51..CP197603-197908

main77213-12080iKE30,TE31,37..CND197708-197808

main77213-12080iKE30..K40..2D..USA;KE3#,TE31,37..DLX,STD197608-197708

CANADA SPEC.

main77213-12120iKE50,TE51..LB197603-197908

main77213-13030iTE38197408-197908

77214PIPE, FUEL TANK FILLER

main04772-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main04772-12020iKE3#,TE31,37,51..CP,HT,SED197408-197908

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iKE3#,50,TE3#,51197408-197908

77324SPRING, FUEL TANK CAP

main77317-12030iKE3#,50,TE31,37,51197608-197908

main77324-12011iKE3#,TE3#,51197408-197908

77355RING, INLET BOX

main77371-12010iKE30,TE31197408-197608

main77371-12011iKE30,TE31197608-197908

main77371-12030iKE35,TE37197408-197608

main77371-12031iKE35,TE37197608-197908

main77371-12040iTE51..CP197603-197608

main77371-12041iTE51..CP197608-197908

main77371-12100iKE50,TE51..LB197603-197908

main77371-13010iTE38197408-197908

W/WOODEN GRAIN PANEL

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12070iKE3#,TE31,37197408-197908

main77606-12080iTE51..CP197603-197908

77651PACKING, FUEL TANK BRACKET

main77276-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

77652CUSHION, FUEL TANK, NO.1

main77651-12030iTE51..LB197603-197908

main77651-13020iTE38197408-197908

main77652-12030iKE3#,TE31,37,51..CP,HT,SED197408-197908

77653SHIELD, FUEL TANK DRAIN PLUG

main77292-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015940013

main90159-40013

9015960077

main90159-60077

9018306090

main90183-06090

9046020052

main90460-20052

9046063001

main90460-63001

9046306029

main90463-06029

9166640820

main91666-40820

9331915010

main93319-15010

31 parts on this diagram · 13 diagrams in section
