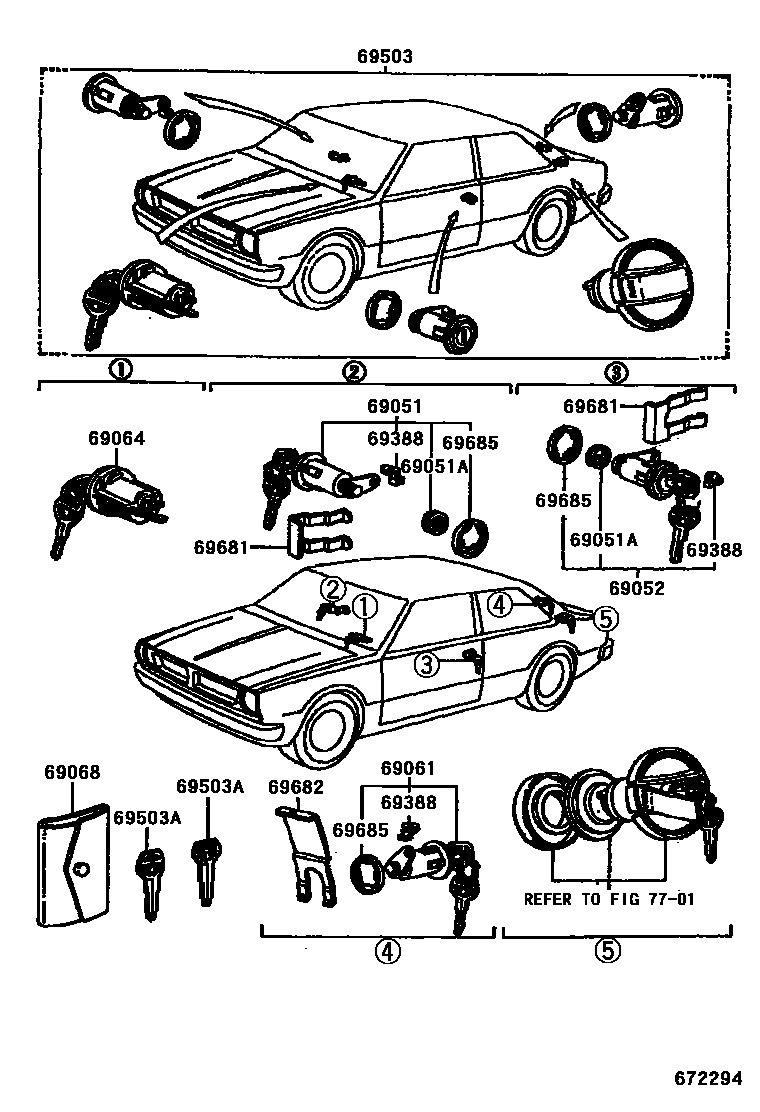

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-19065iKE3#,50,TE31,37,51197408-197908

sub69051-19066

main69051-19075iTE38197408-197908

69051ASPRING, DOOR LOCK CYLINDER

main90508-09279iKE3#,50,TE3#,51197408-197908

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-19065iKE3#,50,TE31,37,51197408-197908

sub69052-19066

main69052-19075iTE38197408-197908

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-19015iKE30,50,TE31,51..LB,SED197408-197908

main69055-19025iKE35,TE37197408-197908

main69055-19035iTE51..CP197603-197908

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12010iKE3#,TE31,37197408-197505

sub69057-12011

main69057-12011iKE3#,50,TE31,37,51197505-197908

main69057-13010iTE38197408-197908

sub69057-96440

69068COVER SUB-ASSY, KEY

main69555-20010iKE3#,TE3#197408-197506

69388SNAP, ROD(FOR DOOR LOCK)

main69377-12010iTE51..CP197708-197908

FOR LUGGAGE LOCK

main69377-30020iKE30,50,TE31,37,51197708-197908

FOR DOOR LOCK

69503CYLINDER SET, LOCK

main69005-12030iKE30,TE31197408-197505

sub69005-12031

main69005-12031iKE30,TE31197505-197508

sub69005-12032

main69005-12032iKE30,50,TE31,51..LB,SED197508-197908

main69005-12052iTE51..CP197603-197908

main69005-12060iKE35,TE37197408-197505

sub69005-12061

main69005-12061iKE35,TE37197505-197508

sub69005-12062

main69005-12062iKE35,TE37197508-197908

main69005-12080iKE30,50,TE31,51..(LB,SED)..CND197506-197908

L/FUEL CAP

main69005-12090iTE37197506-197908

L/FUEL CAP

main69005-12100iTE51..CP197603-197908

L/FUEL CAP

main69005-13020iTE38197408-197508

sub69005-13021

main69005-13021iTE38197508-197908

main69005-13040iTE38197506-197908

L/FUEL CAP

69503AKEY, BLANK

main90999-00066iKE3#,50,TE31,37,51197408-197908

MASTER KEY,FOR MASTER KEY

sub90999-00085

main90999-00067iTE38197408-197908

MASTER KEY,FOR MASTER KEY

main90999-00068iKE3#,50,TE31,37,51197408-197908

SUB KEY,FOR SUB KEY

sub90999-00094

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iKE3#,50,TE3#,51197408-197908

69682RETAINER, LOCK CYLINDER

main69551-13020iTE38197408-197908

main69561-12010iKE30,TE31197408-197908

main69561-12030iTE51..CP197603-197908

main69561-12040iKE35,TE37197408-197908

main69561-12060iKE50,TE51..LB197603-197908

69685PAD, LOCK CYLINDER

main69553-13020iTE38197408-197908

FOR BACK DOOR

main69685-12010iKE3#,50,TE3#,51197408-197908

7701

13 parts on this diagram · 2 diagrams in section
