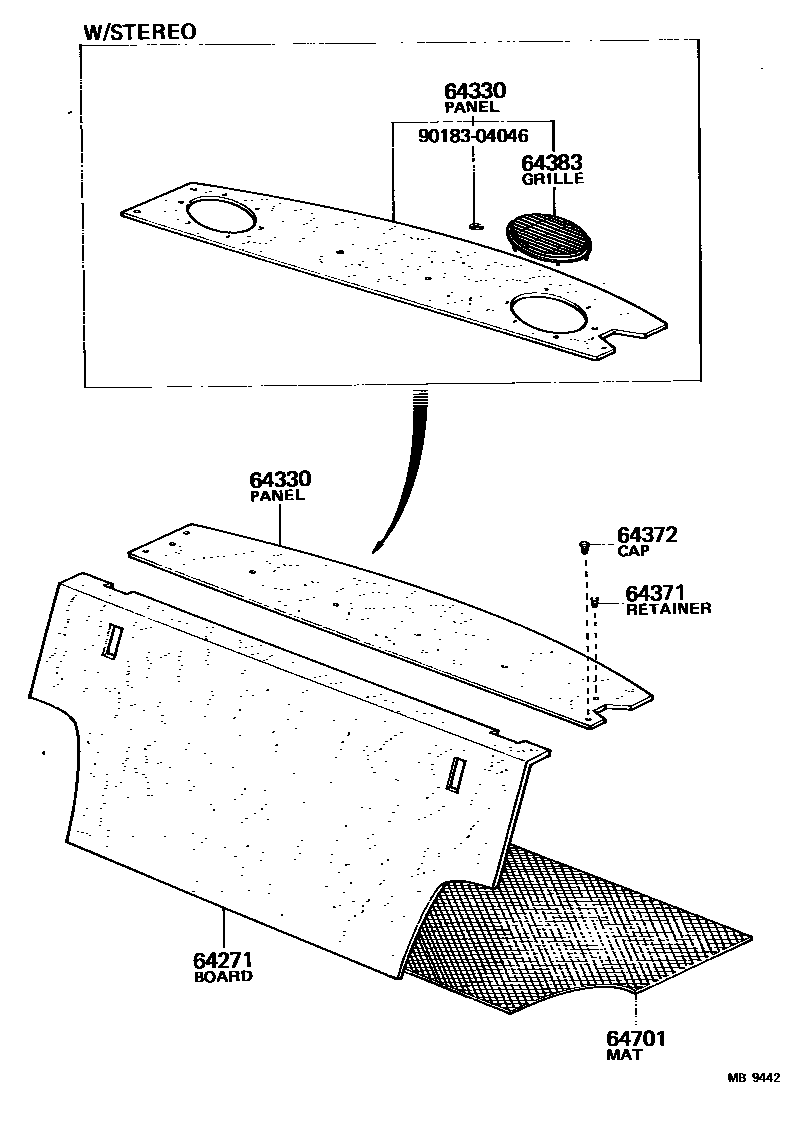

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64271BOARD, ROOM PARTITION, NO.1

main64271-12030iKE3#,TE31,37,51..CP,HT,SED197408-197908

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12100iKE35,TE37197408-197508

main64330-12100-01iKE35,TE37197508-197701

BLACK,BLACK

main64330-12100-04iKE35,TE37197701-197908

BLUE,BLUE

main64330-12100-06iKE35,TE37197508-197701

BROWN,BROWN

main64330-12100-11iKE35,TE37197701-197908

BLACK,BLACK

main64330-12100-16iKE35,TE37197701-197908

L.BROWN,BROWN

main64330-12110iKE35,TE37197408-197508

W/STEREO

main64330-12120-01iTE51..CP197603-197701

BLACK,BLACK

main64330-12120-04iTE51..CP197701-197908

BLUE,BLUE

main64330-12120-06iTE51..CP197603-197701

BROWN,BROWN

main64330-12120-11iTE51..CP197701-197908

BLACK,BLACK

main64330-12120-16iTE51..CP197701-197908

L.BROWN,BROWN

main64330-12130-04iTE51..CP197708-197908

W/SPEAKER GRILLE,BLUE,BLUE

main64330-12130-06iTE51..CP197708-197908

W/SPEAKER GRILLE,L.BROWN,BROWN

main64330-12130-11iTE51..CP197708-197908

W/SPEAKER GRILLE,BLACK,BLACK

main64330-12140iKE30,TE31197408-197508

main64330-12140-01iKE30,TE31197508-197701

BLACK,BLACK

main64330-12140-04iTE31..DLX197701-197805

BLUE,BLUE

main64330-12140-06iKE30,TE31197508-197701

BROWN,BROWN

main64330-12140-11iKE30,TE31197701-197908

BLACK,BLACK

main64330-12140-16iKE30,TE31197701-197908

L.BROWN,BROWN

main64330-12150iKE30,TE31197408-197508

W/STEREO

64371RETAINER, PACKAGE TRAY TRIM

main64371-12010-11×4iKE3#,TE31,37,51..CP,HT,SED197408-197701

BLACK,BLACK

main64371-12010-21×4iKE3#,TE31,37,51..CP,HT,SED197701-197908

BLACK,BLACK

main64371-12010-34×4iKE35,TE31,37,51..(CP,HT,SED)..(DLX,SR5)197701-197805

BLUE,BLUE

main64371-12010-56×4iKE3#,TE31,37,51..CP,HT,SED197701-197908

L.BROWN,BROWN

64372CAP, PACKAGE TRAY TRIM

main90467-14077×2iKE3#,TE31,37,51..CP,HT,SED197410-197701

BLACK

main90467-14077-01×2iKE3#,TE31,37,51..CP,HT,SED197701-197908

BLACK,BLACK

main90467-14077-04×2iKE30,TE31,37,51..CP,HT,SED197805-197908

BLUE,BLUE

main90467-14077-06×2iKE3#,TE31,37,51..CP,HT,SED197701-197908

LIGHT-BROWN,BROWN

main90950-01154-11×2iKE3#,TE31,37197408-197410

BLACK,BLACK

64383GRILLE, SPEAKER, REAR

main64383-22011×2iKE3#,TE31,37197408-197508

main64383-22011-01×2iTE51..CP197805-197908

BLACK,BLACK

main64383-22011-04×2iTE51..CP197805-197908

BLUE,BLUE

main64383-22011-05×2iTE51..CP197805-197908

BEIGE,BEIGE

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-12020iKE3#,TE31,37,51..CP,HT,SED197701-197908

main64711-12040iKE3#,TE31,37,51..CP,HT,SED197408-197701

PLANT M11,M12

main64711-12050iKE3#,TE31,37,51..CP,HT,SED197408-197701

PLANT A31,A32

9018304046

main90183-04046

7 parts on this diagram · 1 diagram in section
