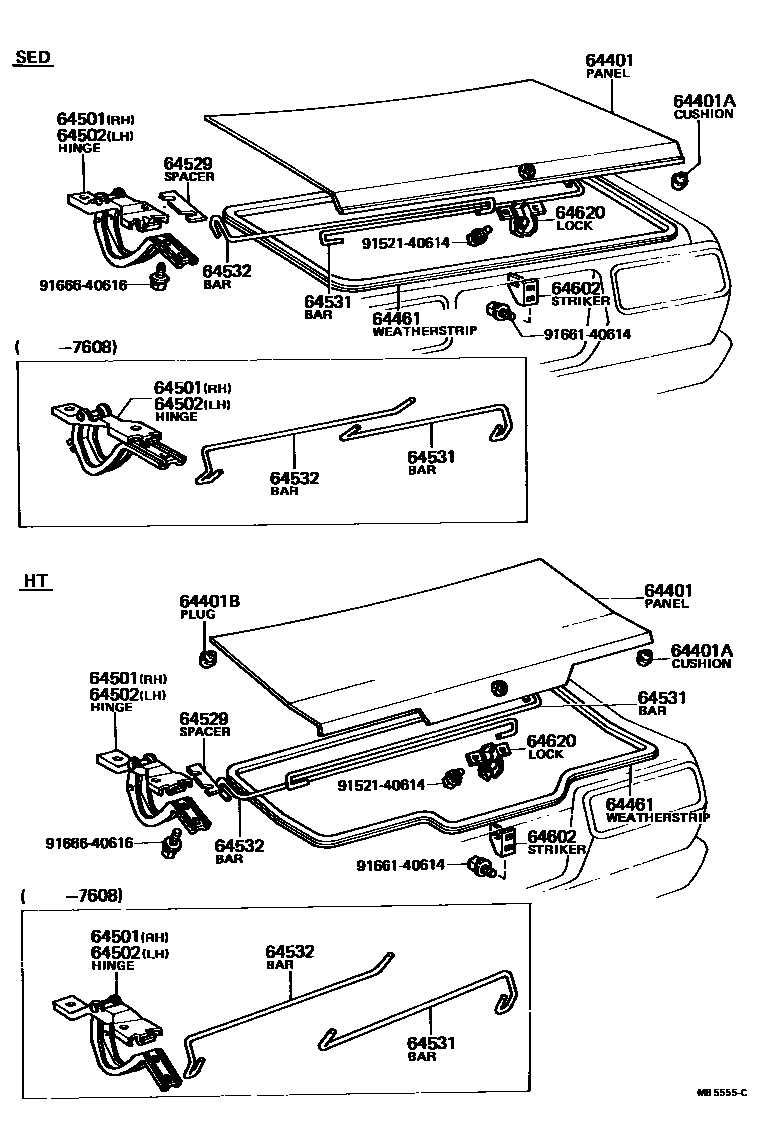

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
OD=9.2
OD=14
64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
OD=9.2
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
L=482
L=1045
L=507
L=1100
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
L=482
L=1045
L=507
L=1100
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
9152140614
main91521-40614
9166140614
main91661-40614
9166640616
main91666-40616
14 parts on this diagram · 2 diagrams in section
