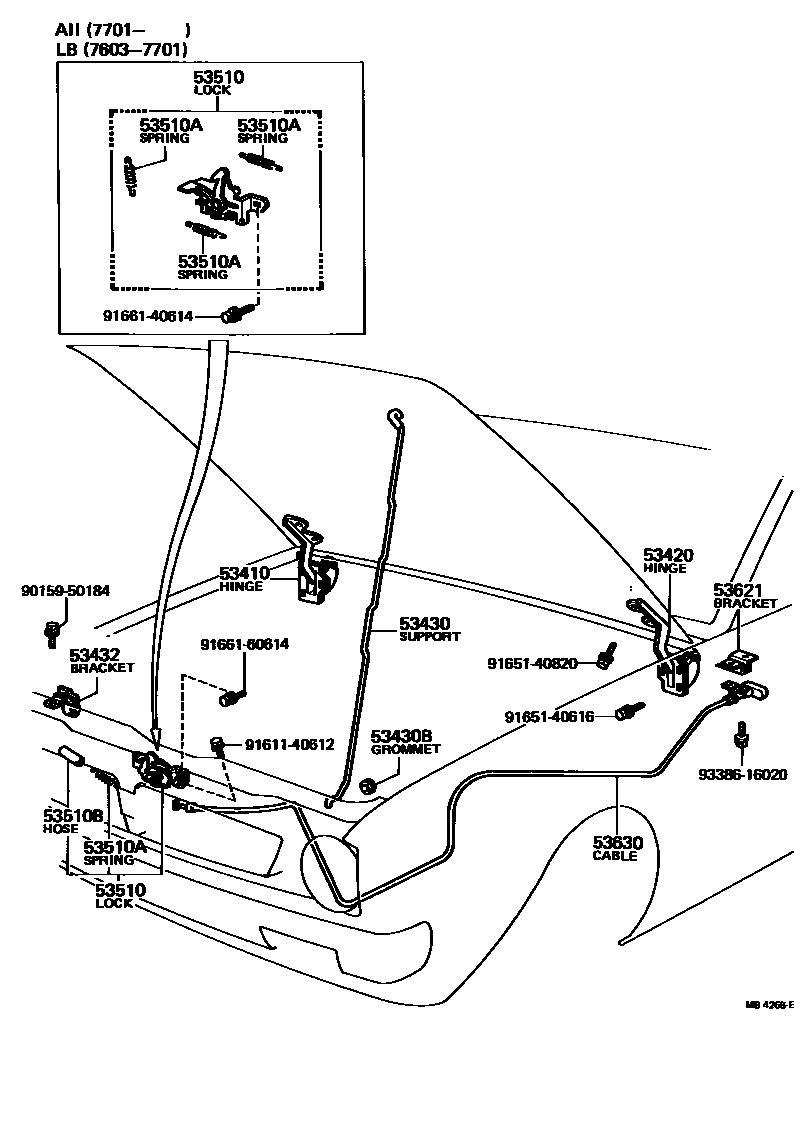

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12020iKE3#,TE3#197408-197908

main53410-12030iKE50,TE51197603-197908

53420HINGE ASSY, HOOD, LH

main53420-12020iKE3#,TE3#197408-197908

main53420-12030iKE50,TE51197603-197908

53430SUPPORT ASSY, HOOD

main53451-12010iKE3#,TE3#197408-197511

main53451-12011iKE3#,50,TE3#,51197511-197908

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iKE30,50,TE3#,51197902-197908

main90480-15296iKE3#,50,TE3#,51197408-197902

53432BRACKET, HOOD SUPPORT CLAMP

main53455-12010iKE3#,TE3#197408-197509

main53455-12011iKE3#,50,TE3#,51197509-197908

53510LOCK ASSY, HOOD

main53510-12040iTE3#..DLX,SR5,STD197408-197701

main53510-12070iKE3#;TE31..SPL197408-197701

main53510-12071iTE3#..DLX,SR5,STD197701-197708

main53510-12072iTE3#..DLX,SR5,STD197708-197808

main53510-12081iKE3#;TE31..SPL197701-197708

main53510-12082iKE30;TE31..SPL197708-197808

main53510-12090iTE51197603-197701

main53510-12130iKE50,TE51197701-197708

main53510-12131iKE50,TE51197708-197908

main53510-12150iKE30,TE3#197808-197908

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09007iKE3#,50,TE3#,51197701-197906

L=35

main90506-09008iKE30,50,TE3#,51197906-197908

WD=0.9,CW=21.25,WD=0.9

main90506-10196iKE3#,TE3#197408-197701

L=43

main90506-10486iTE51197603-197701

L=35

main90506-10487iTE51197603-197701

L=43

main90506-20009iKE50,TE51197611-197908

L=60

main90506-23004iKE3#,TE3#197701-197908

L=65

53510BHOSE(FOR HOOD LOCK)

main90446-12209iKE3#,TE3#197408-197701

53621BRACKET, HOOD LOCK CONTROL CABLE

main55363-12060iTE51197603-197701

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12090iKE3#,TE3#197408-197701

main53630-12091iKE3#,50,TE3#,51197701-197708

main53630-12092iKE30,50,TE3#,51197708-197908

main53630-12100iTE51197603-197701

9015950184

main90159-50184

9161140612

main91611-40612

9165140616

main91651-40616

9165140820

main91651-40820

9166140614

main91661-40614

9166160614

main91661-60614

9338616020

main93386-16020

17 parts on this diagram · 1 diagram in section
