FRONT BUMPER & BUMPER STAY

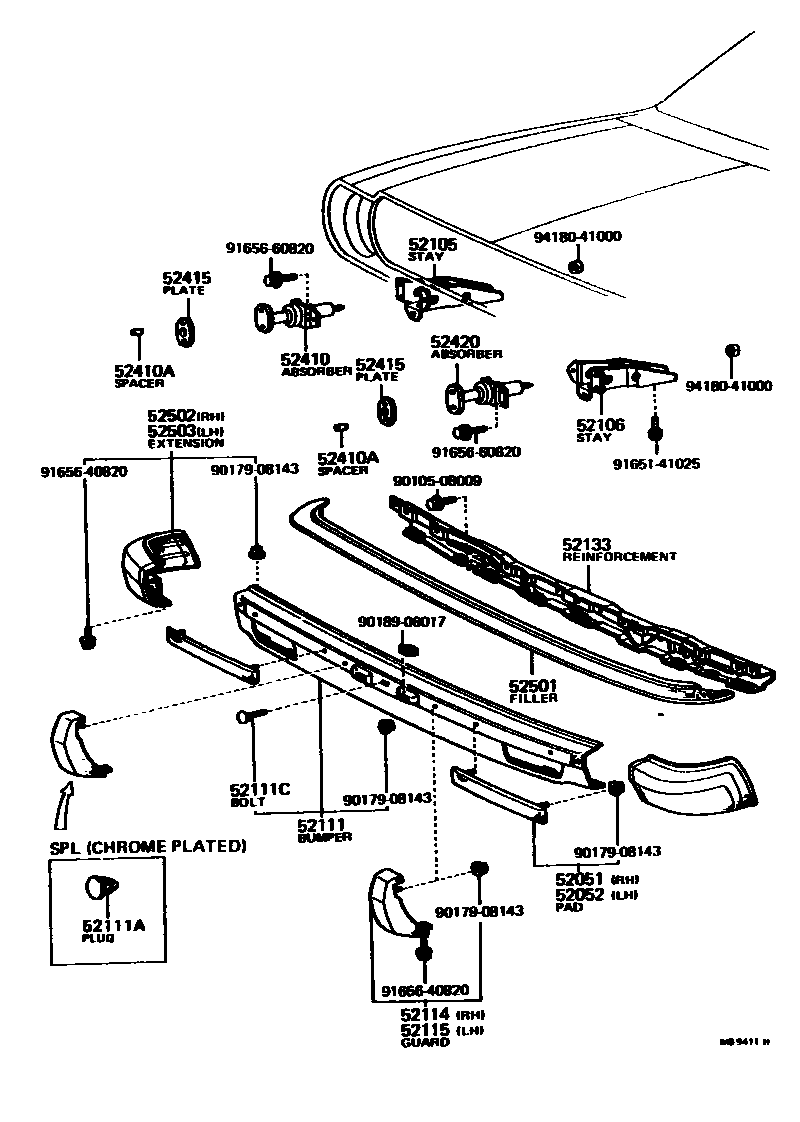

Parts diagram

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-19015i197408-197908

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-19015i197408-197908

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-12030i197408-197908

main52011-12050i197603-197908

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-12030i197408-197908

main52012-12050i197603-197908

52111BUMPER ASSY, FRONT

main52111-19225i197408-197608

CHROME PLATED

main52111-19226i197608-197908

CHROME PLATED

main52111-19265i197608-197805

DARK-GRAY M.

main52111-19266i197805-197908

BLACK

52111APLUG, FRONT BUMPER

main90950-01114×2i197608-197709

CHROME PLATED

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08002i197408-197502

main90112-08008×5i197608-197805

DARK GRAY M.

main90112-08009×5i197608-197908

CHROME PLATED

main90112-08016×5i197805-197908

BLACK

main90112-08037i197502-197606

52114GUARD, BUMPER, FRONT RH

main52401-19055i197408-197908

52115GUARD, BUMPER, FRONT LH

main52401-19055i197408-197908

52133REINFORCEMENT, FRONT BUMPER

main52021-12010i197408-197908

52410ABSORBER, FRONT BUMPER, RH

main52610-12010i197408-197908

52410ASPACER, FRONT BUMPER ABSORBER

main90560-08421×4i197408-197908

52415PLATE, ABSORBER MOUNTING

main52625-12010×2i197408-197908

52420ABSORBER, FRONT BUMPER, LH

main52610-12010i197408-197908

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-12010i197408-197908

main52501-12020i197608-197908

52502EXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-19115i197408-197908

main52102-19135i197603-197908

52503EXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-19105i197408-197908

main52103-19115i197603-197908

9010508009

main90105-08009

9017908143

main90179-08143

9018906017

main90189-06017

9165141025

main91651-41025

9165640820

main91656-40820

9165660820

main91656-60820

9418041000

main94180-41000

24 parts on this diagram · 1 diagram in section
