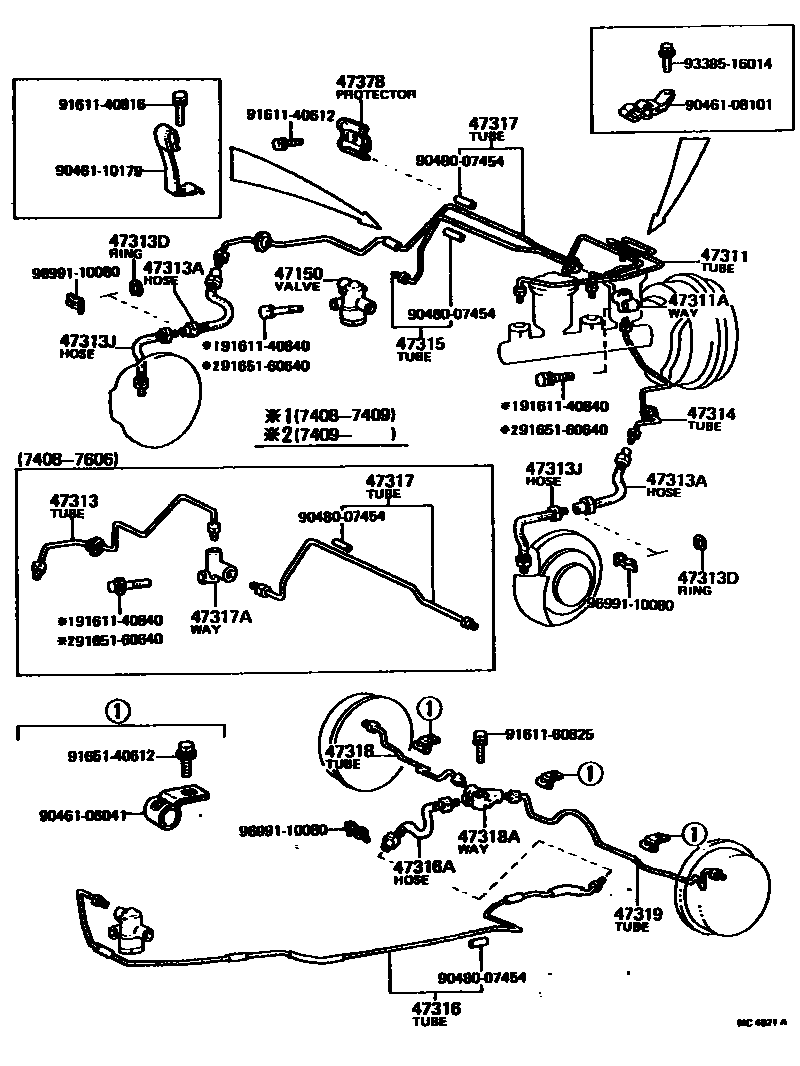

BRAKE TUBE & CLAMP

0001 1 0004 1

47150VALVE ASSY, PROPORTIONING

main47150-12030iKE3#,TE3#197408-197409

main47150-12031iKE3#,TE3#197409-197601

47311TUBE, FRONT BRAKE, NO.1

main47311-12280iKE3#,50197408-197908

main47311-12290iTE3#,51197408-197908

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10148iKE3#,50,TE3#,51197408-197908

47313TUBE, FRONT BRAKE, NO.3

main47313-12080iKE3#,TE3#197408-197508

main47313-12100iKE3#,TE3#,51197508-197606

main47313-12101iTE3#,51;KE30..USA197708-197908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02259×2iKE3#,50,TE3#,51197408-197908

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200×4iKE3#,50,TE3#,51197408-197908

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02260×2iKE3#,50,TE3#,51197408-197908

47314TUBE, FRONT BRAKE, NO.4

main47314-12090iKE3#,50,TE3#,51197408-197908

47315TUBE, FRONT BRAKE, NO.5

main47315-12200iKE3#,50197408-197908

main47315-12210iTE3#,51197408-197908

47316TUBE, FRONT BRAKE, NO.6

main47316-12140iKE3#,TE31,37,51197408-197701

main47316-12141iKE3#,50,TE31,37,51197701-197908

main47316-13130iTE38197408-197701

main47316-13131iTE38197701-197908

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-30305iKE3#,50,TE3#,51197503-197902

main96940-31305iKE3#,TE3#197408-197503

main96940-33005iKE30,50,TE3#,51197902-197908

47317TUBE, FRONT BRAKE, NO.7

main47312-12010iKE3#,TE3#,51197408-197606

main47313-12110iKE3#,50..DLX,STD197606-197708

47317AWAY(FOR BRAKE TUBE)

main90412-10082iKE3#,TE3#197408-197601

47318TUBE, FRONT BRAKE, NO.8

main47318-12090iKE3#197408-197701

main47318-12091iKE3#,50197701-197908

main47318-12100iTE3#,51..DLX,SPL,STD197408-197701

main47318-12101iTE3#,51..DLX,SPL,STD197701-197908

main47318-12110iTE37,51..SR5197408-197701

main47318-12111iTE37,51..SR5197701-197908

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10029iKE3#,50,TE3#,51197701-197908

main90413-10139iKE3#,TE3#,51197408-197701

47319TUBE, FRONT BRAKE, NO.9

main47319-12090iKE3#197408-197701

main47319-12091iKE3#,50197701-197908

main47319-12100iTE3#,51..DLX,SPL,STD197408-197701

main47319-12101iTE3#,51..DLX,SPL,STD197701-197908

main47319-12110iTE37,51..SR5197408-197701

main47319-12111iTE37,51..SR5197701-197908

47378PROTECTOR, BRAKE TUBE

main47378-12020iKE3#,50,TE3#,51197408-197908

9046106041

main90461-06041

9046108101

main90461-08101

9046110179

main90461-10179

9048007454

main90480-07454

9161140612

main91611-40612

9161140816

main91611-40816

9161140840

main91611-40840

9161160825

main91611-60825

9165140612

main91651-40612

9165160640

main91651-60640

9338516014

main93385-16014

9699110080

main96991-10080

29 parts on this diagram · 2 diagrams in section
