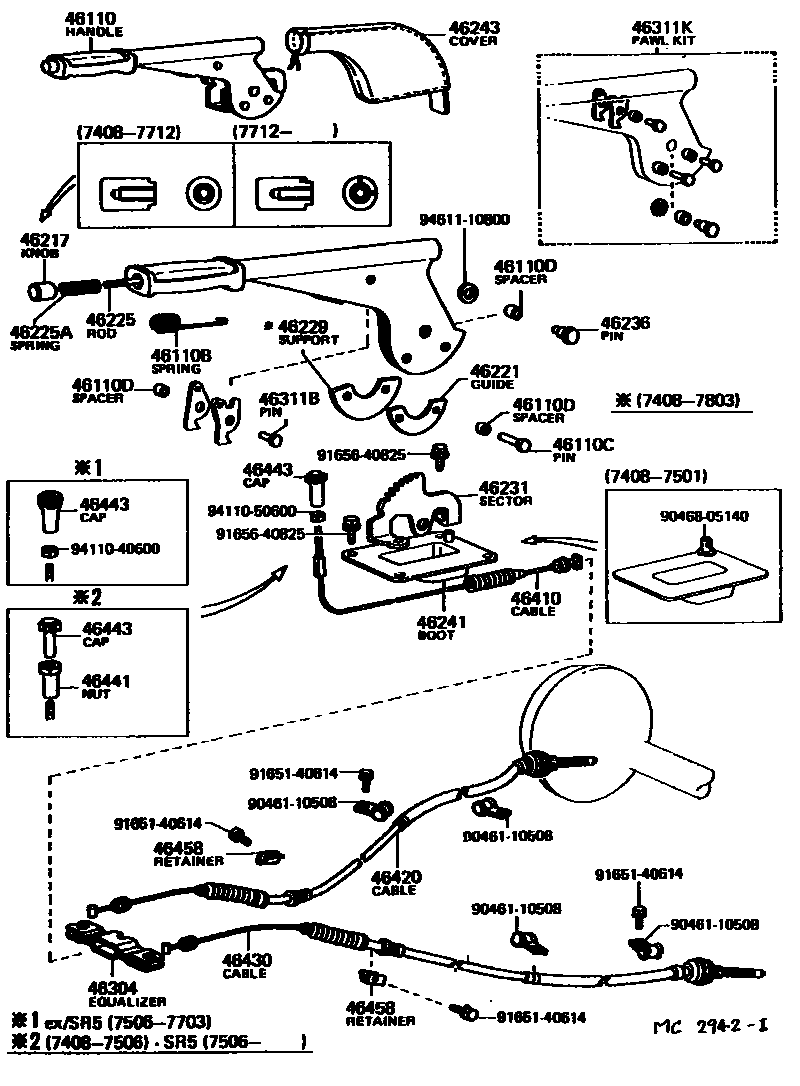

PARKING BRAKE & CABLE

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46201-12020-01iKE3#,50,TE3#,51197408-197908

BLACK,BLACK

main46201-12020-04iTE37,51..SR5197808-197908

BLUE,BLUE

main46201-12020-06iTE37,51..SR5197808-197908

BROWN,BROWN

46110BSPRING, TENSION(FOR PARKING BRAKE HANDLE)

main90507-08001iKE3#,50,TE3#,51197408-197908

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90243-06018×2iKE3#,50,TE3#,51197408-197908

46110DSPACER(FOR PARKING BRAKE HANDLE)

main90560-06195iKE3#,50,TE3#,51197408-197908

L=6,ID=6

main90560-06201×2iKE3#,50,TE3#,51197408-197908

L=6,ID=6.7

main90560-10200iKE3#,50,TE3#,51197408-197908

L=6.2,ID=10

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10013iKE3#,50,TE3#,51197408-197712

main46217-10020iKE30,50,TE3#,51197712-197908

46221GUIDE, PARKING BRAKE CABLE

main46221-12010iKE3#,50,TE3#,51197408-197908

46225ROD, PARKING BRAKE PAWL RELEASE

main46225-12012iKE3#,50,TE3#,51197408-197908

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-12160iKE3#,50,TE3#,51197408-197908

46229SUPPORT, PARKING BRAKE CABLE GUIDE

main46229-12010iKE3#,50,TE3#,51197408-197803

46231SECTOR, PARKING BRAKE LEVER

main46231-12020iKE3#,50,TE3#,51197408-197908

46236PIN, LEVER PIVOT

main46236-12010iKE3#,50,TE3#,51197408-197908

46241BOOT, PARKING BRAKE LEVER

main46241-12020iKE3#,50,TE3#,51197408-197808

main46241-12040iKE30,50,TE3#,51197808-197908

46243COVER, PARKING BRAKE LEVER

main58879-12020-01iTE37,51..SR5197408-197908

BLACK,BLACK

main58879-12020-04iTE37,51..SR5197808-197908

BLUE,BLUE

main58879-12020-06iTE37,51..SR5197808-197908

BROWN,BROWN

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iKE3#,50,TE3#,51197408-197908

46311BPIN, PARKING BRAKE PAWL PIVOT

main90243-06017iKE3#,50,TE3#,51197408-197908

46311KPAWL KIT, PARKING BRAKE

main04461-12010iKE3#,50,TE3#,51197408-197908

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12050iKE30,50,TE3#,51197808-197908

main46410-14020iKE3#,50,TE3#,51197408-197808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12090iKE3#,50197408-197901

main46420-12091iKE30,50197901-197908

main46420-12110iTE3#,51..DLX,SPL,STD197602-197901

main46420-12111iTE31,38,51..DLX,SPL197901-197908

main46420-12130iTE37,51..SR5197602-197901

main46420-12131iTE37,51..SR5197901-197908

main46420-12140iTE3#..DLX,STD197408-197602

main46420-12160iTE37..USA197408-197602

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12010iKE3#197408-197602

main46430-12030iTE51..LB..T40197603-197701

main46430-12060iTE3#,51..DLX,SPL,STD197701-197901

main46430-12061iTE31,38,51..DLX,SPL197901-197908

main46430-12080iTE37,51..SR5197408-197901

main46430-12081iTE37,51..SR5197901-197908

main46430-12090iKE3#,50197602-197901

main46430-12091iKE30,50197901-197908

46441NUT, WIRE ADJUSTING, NO.1

main46441-14010iKE3#,TE3#197408-197506

46443CAP, CABLE ADJUSTING

main46443-12020iKE3#,50,TE3#,51..DLX,SPL,STD197506-197703

main46443-12040iKE30,50,TE31,38,51..DLX,SPL197808-197908

main46443-14010iKE3#,TE3#197408-197506

46458RETAINER, CABLE

main46458-20020×2iKE3#,50,TE3#,51197408-197908

9046110508

main90461-10508

9046805140

main90468-05140

9165140614

main91651-40614

9165640825

main91656-40825

9411040600

main94110-40600

9411050600

main94110-50600

9461110800

main94611-10800

29 parts on this diagram · 1 diagram in section
