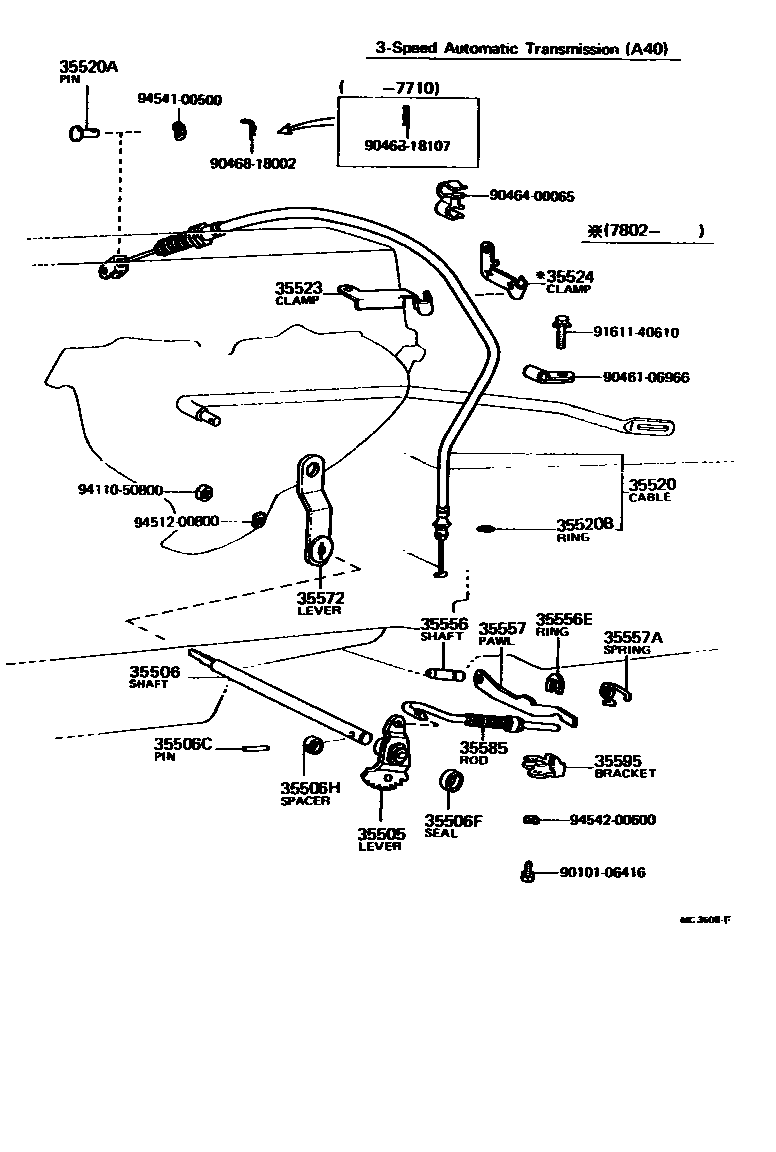

THROTTLE LINK & VALVE LEVER (ATM)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22010iTE3#,51..A40197408-197908

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-20021iTE3#,51..A40197408-197908

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-03004iTE31,38,51..A40197803-197908

main90254-03044iTE3#,51..A40197408-197803

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11128×2iTE3#,51..A40197408-197908

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iTE31,38,51..A40197803-197908

35520CABLE ASSY, THROTTLE

main35520-12032iTE3#,51..A40197408-197801

main35520-12050iTE31,38,51..A40197801-197908

35520APIN, THROTTLE CABLE

main90240-05139iTE3#,51..A40197408-197908

35520BRING, O(FOR THROTTLE CABLE)

main90301-09063iTE3#,51..A40197408-197908

35523CLAMP, THROTTLE CABLE

main35523-12020iTE3#..A40197408-197512

main35523-12021iTE3#,51..A40197512-197806

main35523-12022iTE31,38,51..A40197806-197908

35524CLAMP, THROTTLE CABLE, NO.2

main35524-12010iTE31,38,51..A40..USA197801-197908

35556SHAFT, PARKING LOCK PAWL

main35556-22010iTE3#,51..A40197408-197908

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTE3#,51..A40197408-197908

35557PAWL, PARKING LOCK

main35557-22010iTE3#,51..A40197408-197908

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25329iTE3#,51..A40197408-197908

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-12020iTE3#,51..A40197408-197908

35585ROD, PARKING LOCK

main35501-22010iTE3#,51..A40197408-197908

35595BRACKET, PARKING LOCK PAWL

main35595-22010iTE3#,51..A40197408-197908

9010106416

main90101-06416

9046106966

main90461-06966

9046400065

main90464-00065

9046818002

main90468-18002

9046818107

main90468-18107

9161140610

main91611-40610

9411050800

main94110-50800

9451200800

main94512-00800

9454100500

main94541-00500

9454200600

main94542-00600

27 parts on this diagram · 1 diagram in section
