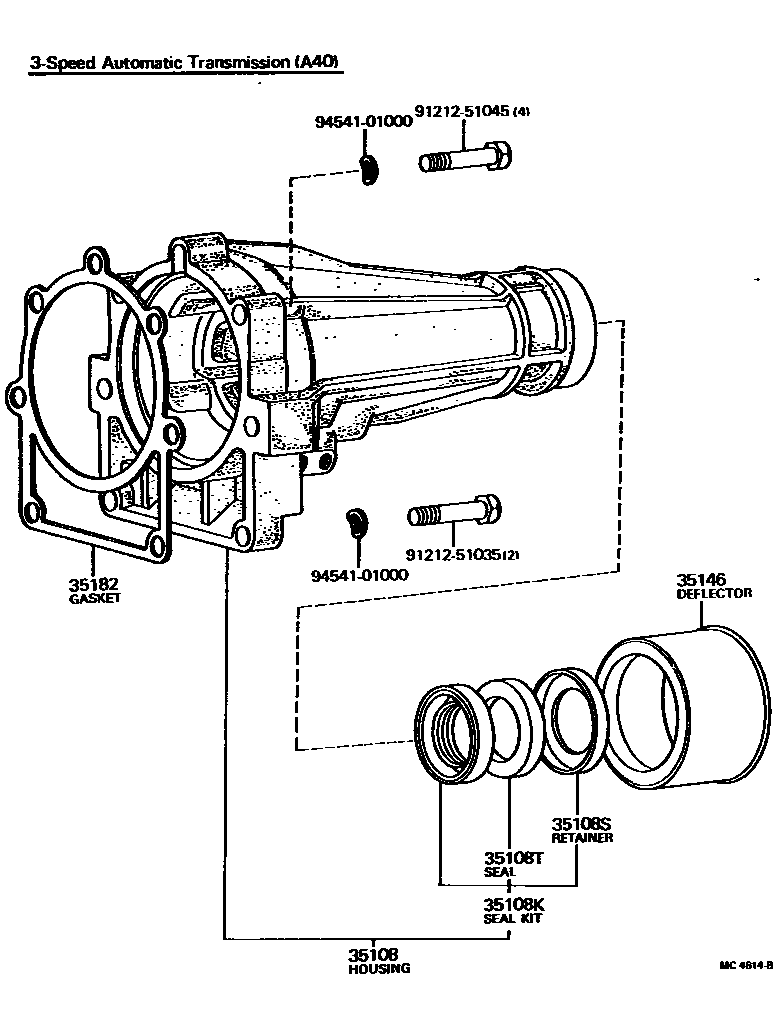

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22030iTE3#,51..A40197408-197808

main35108-22031iTE31,38,51..A40197808-197908

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iTE3#,51..A40197408-197908

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iTE3#,51..A40197408-197908

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iTE3#,51..A40197408-197908

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iTE3#,51..A40197408-197908

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iTE3#,51..A40197408-197908

9121251035

main91212-51035

9121251045

main91212-51045

9454101000

main94541-01000

9 parts on this diagram · 1 diagram in section
