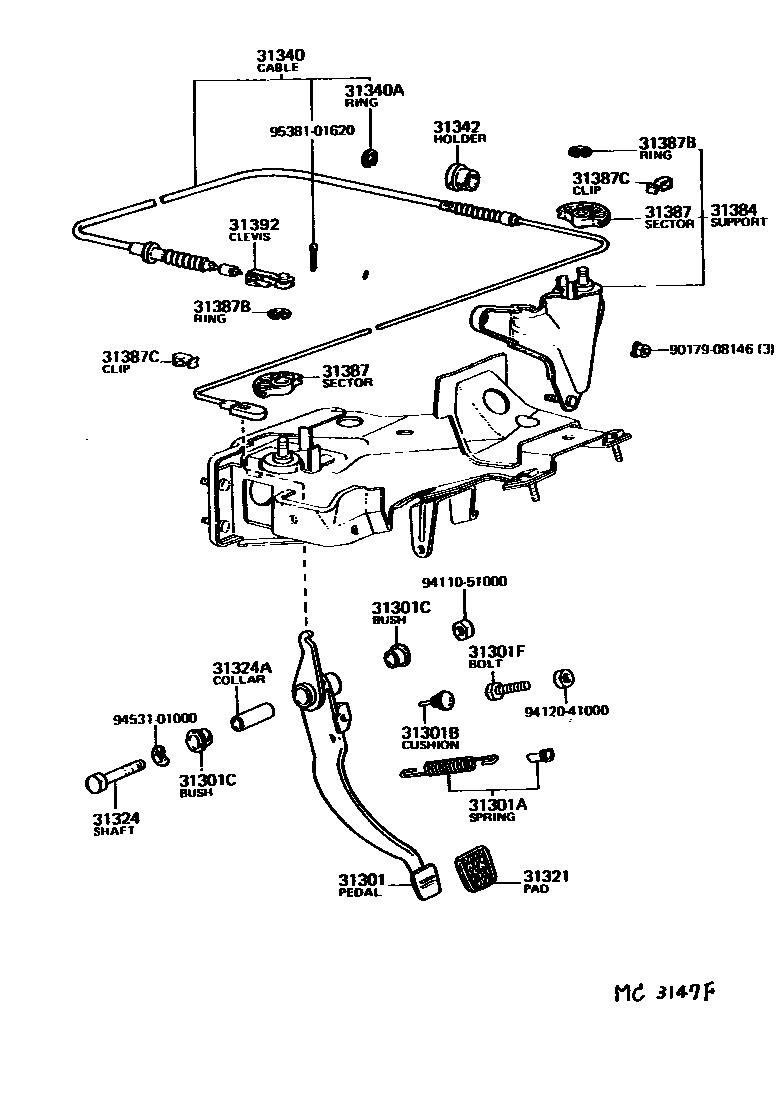

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12100iKE3#,50197408-197908

main31301-12110iTE3#,51..MTM197408-197805

main31301-12111iTE3#,51..MTM197805-197908

31301ASPRING(FOR CLUTCH PEDAL)

main90506-16477iKE3#,TE3#..MTM197408-197507

main90507-16001iKE3#,50,TE3#,51..MTM197507-197908

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iKE3#,50,TE3#,51..MTM197408-197908

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iKE3#,50,TE3#,51..MTM197408-197908

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iKE3#,50,TE3#,51..MTM197408-197908

31321PAD, CLUTCH PEDAL

main31321-12030iKE3#,50,TE3#,51..MTM197408-197908

31324SHAFT, CLUTCH PEDAL

main90101-10015iKE3#,50,TE3#,51..MTM197507-197908

main90101-10039iKE3#,TE3#..MTM197408-197507

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKE3#,50,TE3#,51..MTM197408-197908

31340CABLE ASSY, CLUTCH RELEASE

main31340-19155iKE3#,50197408-197908

31340ARING, E(FOR CLUTCH RELEASE CABLE)

main96160-01200iKE3#,50197408-197908

31342HOLDER, CLUTCH CABLE, INNER

main31342-12901iKE3#,50197408-197908

31384SUPPORT ASSY, CLUTCH RELEASE SECTOR

main31030-12030iKE3#,50197408-197908

31387SECTOR, CLUTCH RELEASE

main31387-10010×2iKE3#,50197408-197908

31387BRING, E(FOR CLUTCH RELEASE SECTOR)

main96160-00800×2iKE3#,50197408-197908

31387CCLIP(FOR CLUTCH RELEASE SECTOR)

main90468-06008×2iKE3#,50197408-197908

31392CLEVIS, CLUTCH CABLE

main31392-10010iKE3#,50197408-197908

9017908146

main90179-08146

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

9538101620

main95381-01620

21 parts on this diagram · 2 diagrams in section
