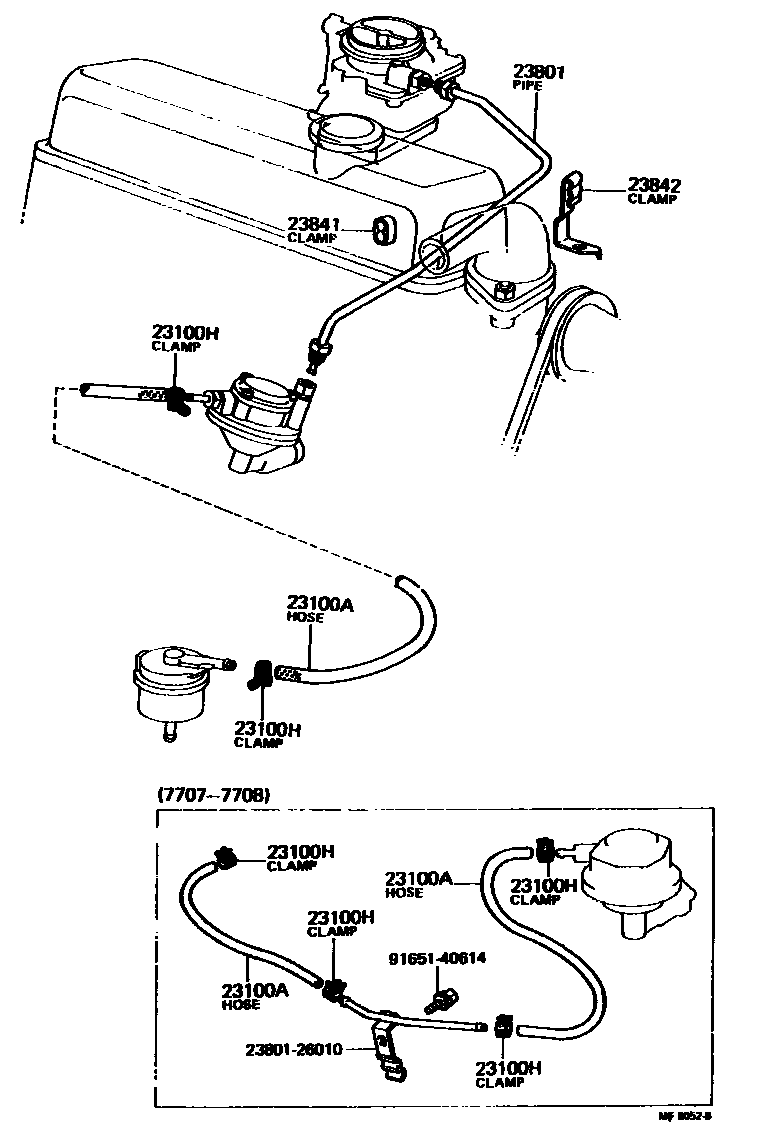

FUEL PIPE & CLAMP
23100AHOSE, FUEL
CALIFORNIA SPEC.
L=190,FOR CLAMP TO PUMP
L=260,FOR CLAMP TO PUMP
L=300,FOR CLAMP TO PUMP
L=320
L=340,FOR FILTER TO CLAMP
L=380
L=420
L=320,FOR FILTER TO CLAMP
L=340
L=380; L=380 CANADA SPEC.
L=420
H,L=420; H,L=600
23100HCLIP(FOR FUEL HOSE)
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
*H,L=260
*H,L=300,CANADA SPEC
*H,L=400
*H,L=440
L=400(*H,L=320)
L=400(*H,L=380)
L=400(*H,L=320); L=400(*H,L=380)
L=600(*H,L=460)
23841CLAMP, FUEL PIPE(HOSE), NO.1
23842CLAMP, FUEL PIPE(HOSE), NO.2
2380126010PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
main23801-26010
9165140614
main91651-40614
7 parts on this diagram · 3 diagrams in section
