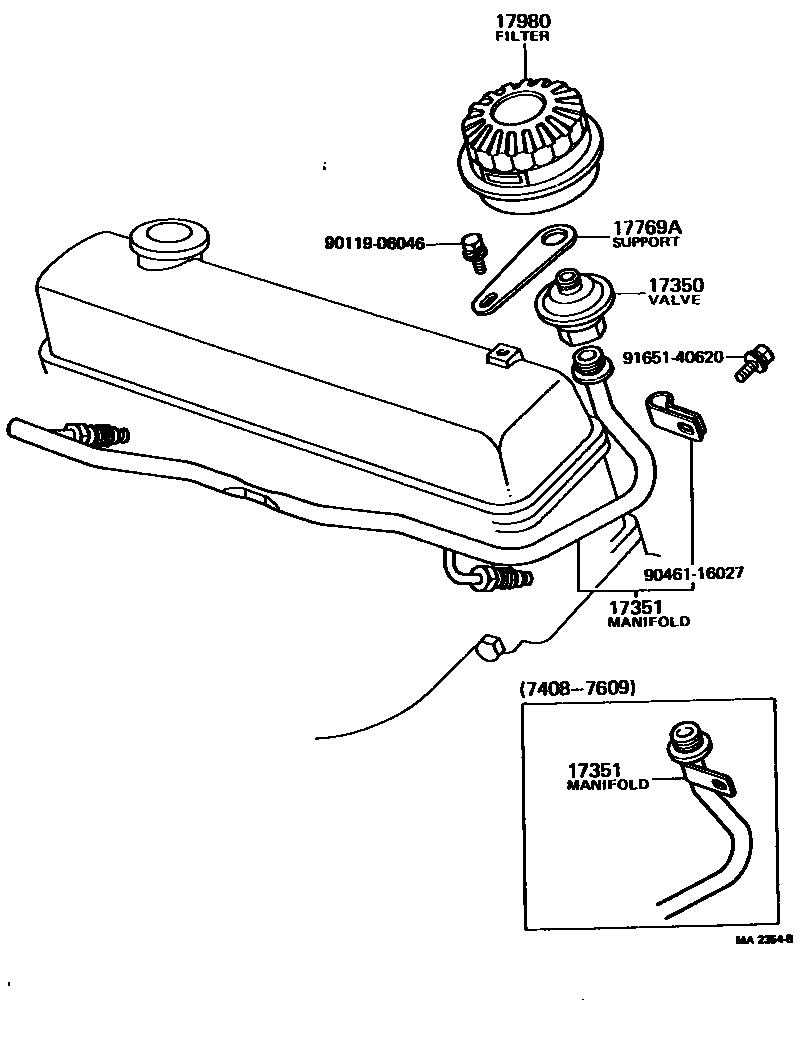

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

17350VALVE ASSY, REED

main17350-24010×2i3KC..KE30..USA197708-197908

main17350-27020i2TC..TE3#,51..USA197708-197908

FEDERAL SPEC.

17351MANIFOLD, AIR INJECTION

main17351-24050i3KC..KE30..USA197708-197908

main17351-26021i2TC..TE3#,51197408-197608

main17351-26060i2TC..TE3#,51197608-197708

main17351-26061i2TC..TE3#,51..USA197708-197808

CAL.& H.A.

main17351-26062i2TC..TE3#,51..USA197808-197908

CALIFORNIA SPEC.

main17351-27010i2TC..TE3#,51..USA197708-197908

17769ASUPPORT, AIR CLEANER(FOR AIR SUCTION SYSTEM)

main17769-24010i3KC..KE30..USA197608-197708

17980FILTER ASSY, AIR SUCTION

main17980-24010i3KC..KE30..USA197708-197908

9011906046

main90119-06046

9046116027

main90461-16027

9165140620

main91651-40620

7 parts on this diagram · 4 diagrams in section
