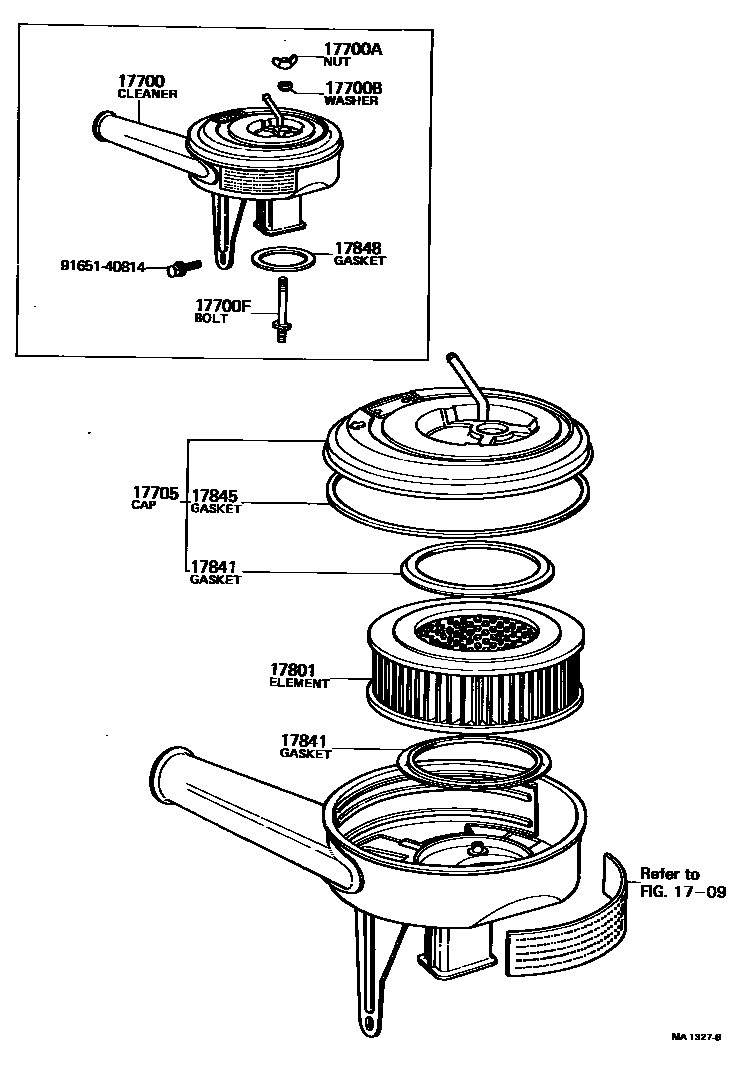

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1709

17700CLEANER ASSY, AIR

main17700-24201i3KC..KE3#197408-197511

main17700-24332i3KC..KE3#197511-197708

main17700-24470i3KC..KE3#,50197609-197708

CANADA SPEC

main17700-24490i3KC..KE30..USA197708-197804

main17700-24540i3KC..KE30..USA197804-197908

main17700-24550i3KC..KE30,50..CND197804-197811

main17700-24551i3KC..KE30,50..CND197811-197908

main17700-26080i2TC..TE3#,51197408-197708

main17700-26081i2TC..TE3#,51..USA197708-197808

CAL.& H.A.

main17700-26082i2TC..TE3#,51..USA197808-197908

CALIFORNIA SPEC.

main17700-26090i2TC..TE3#,51197408-197701

L/HOT AIR INTAKE

main17700-26150i2TC..TE3#,51197701-197708

CANADA SPEC

main17700-26151i2TC..TE3#,51..CND197708-197808

main17700-26152i2TC..TE3#,51..CND197808-197908

main17700-26230i2TC..TE3#,51..USA197708-197808

main17700-26231i2TC..TE3#,51..USA197808-197908

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i2TC..TE3#,51197708-197908

main94271-00600i3KC..KE3#,50197408-197708

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06023i3KC..KE3#,50197408-197708

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06099i2TC..TE3#197408-197510

main90116-06131i3KC..KE3#,50197408-197908

L=102,S=12&30

main90116-06142i2TC..TE3#,51197510-197908

L=88,S=12&25

17705CAP SUB-ASSY, AIR CLEANER

main17705-24170i3KC..KE3#,50197408-197804

sub17705-24320

main17705-24270i3KC..KE30..USA197808-197908

sub17705-24291

main17705-24300i3KC..KE30,50..CND197808-197908

sub17705-24291

main17705-25011i2TC..TE3#197408-197508

main17705-25030i2TC..TE3#,51197508-197708

main17705-25031i2TC..TE3#,51197708-197908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-24010i3KC..KE3#,50197408-197908

main17801-25010i2TC..TE3#,51197708-197908

main17801-31010i2TC..TE3#,51197408-197708

17841GASKET, FILTER ELEMENT

main17841-24020×2i3KC..KE3#,50197408-197908

sub17841-68010

main17841-25010×2i2TC..TE3#,51197408-197609

main17841-31020×2i2TC..TE3#,51197609-197908

17845GASKET, AIR CLEANER CAP

main17845-24010i3KC..KE3#,50197408-197908

main17845-25010i2TC..TE3#,51197408-197908

sub17845-42010

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63187i3KC..KE3#,50197408-197908

9165140814

main91651-40814

11 parts on this diagram · 9 diagrams in section
