MANIFOLD

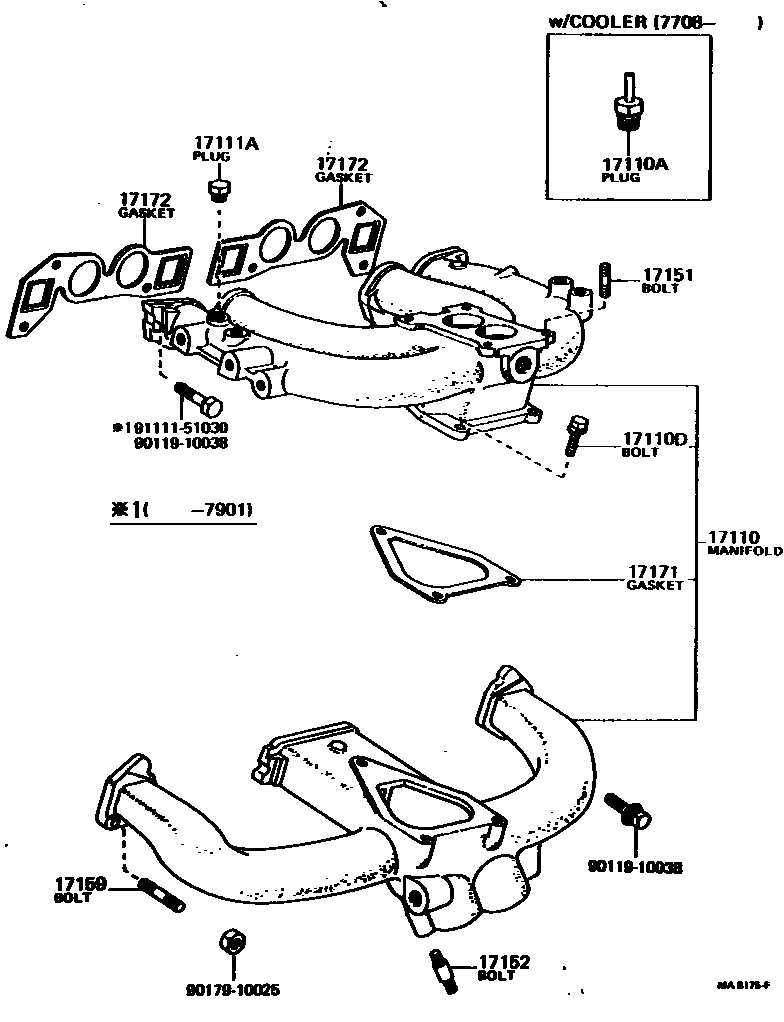

Parts diagram

17110MANIFOLD ASSY

main17110-24040i197408-197511

main17110-24042i197701-197708

CANADA SPEC.

main17110-24043i197804-197908

main17110-24080i197608-197708

17110AUNION, VACUUM HOSE

main90404-51093i197708-197908

W/COOLER

17110DBOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)

main91611-40820×3i197408-197807

main91611-60822×3i197807-197908

17111MANIFOLD, INTAKE

main17111-25903i197708-197908

main17111-26020i197408-197608

main17111-26050i197608-197610

CANADA SPEC.

main17111-26051i197610-197708

CANADA SPEC.

main17111-26900i197608-197708

17111APLUG, NO.1

main90345-51005×2i197408-197809

main90345-51025×2i197809-197908

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08010×8i197408-197508

L=39,S=13&13

main90116-08023×4i197508-197908

L=41,S=13&13

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10007×3i197606-197704

L=41,S=14&21

main90116-10017×3i197704-197908

L=41,S=14&21

main90116-10042×3i197408-197606

L=37,S=20&13

main92122-41022×3i197408-197511

L=37,S=15

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08002×4i197409-197607

L=34.5,S=12&9

main90116-08015×12i197408-197608

L=37,S=13.5&13.5

main90116-08035×4i197607-197908

L=37.4,S=13&13

main90116-08296×4i197408-197409

L=34.5,S=12&9

main90116-10021×2i197408-197707

main92122-41028×2i197707-197908

main92122-61025×2i197608-197908

17171GASKET, INTAKE TO EXHAUST MANIFOLD

main17171-24010i197408-197908

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-24010×2i197408-197511

main17172-24011×2i197511-197908

9011910038

main90119-10038

9017910025

main90179-10025

9111151030

main91111-51030

13 parts on this diagram · 7 diagrams in section
