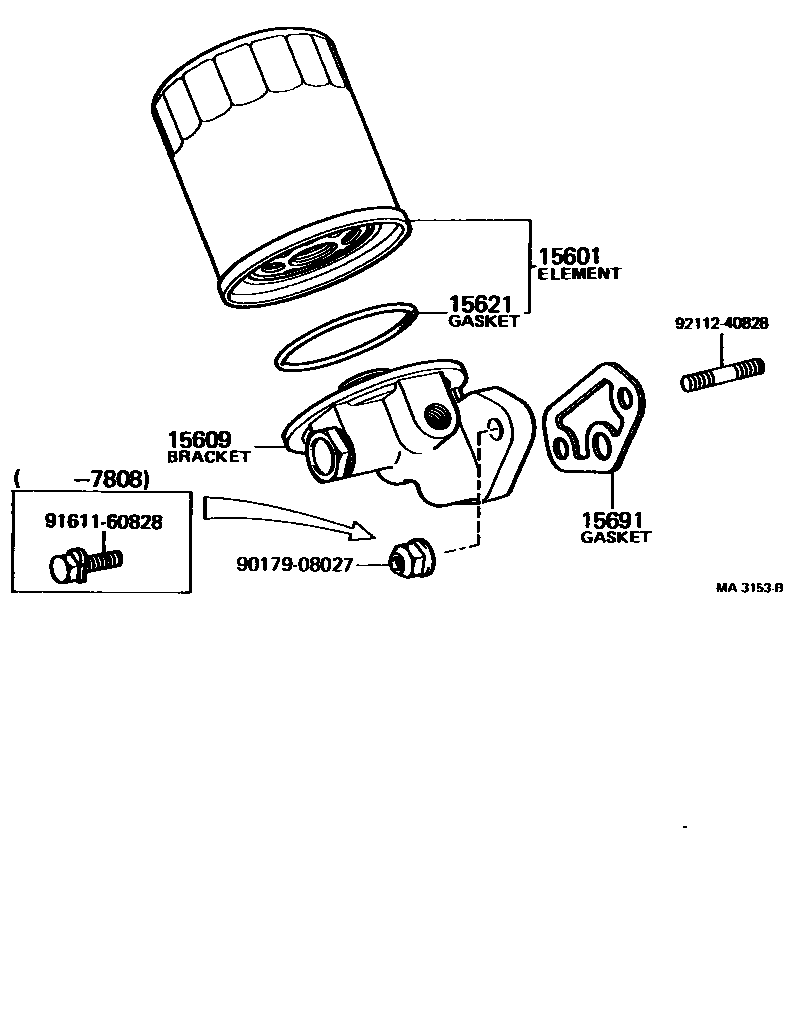

OIL FILTER

0001 1 0002 1 0004 1

15601FILTER SUB-ASSY, OIL

main15600-25010i2TC..TE3#,51197408-197908

main15601-33020i3KC..KE3#,50197408-197908

15609BRACKET SUB-ASSY, OIL FILTER

main15609-22012i3KC..KE3#,50197408-197908

main15609-26020i2TC..TE37,51..SR5197408-197608

CALIFORNIA SPEC.

15621GASKET, OIL FILTER BODY

main15621-22010i3KC..KE3#,50197408-197908

main15621-41010×2i2TC..TE3#,51197408-197908

15691GASKET, OIL FILTER

main15691-22010i3KC..KE3#,50197408-197908

9017908027

main90179-08027

9161160828

main91611-60828

9211240828

main92112-40828

7 parts on this diagram · 3 diagrams in section
