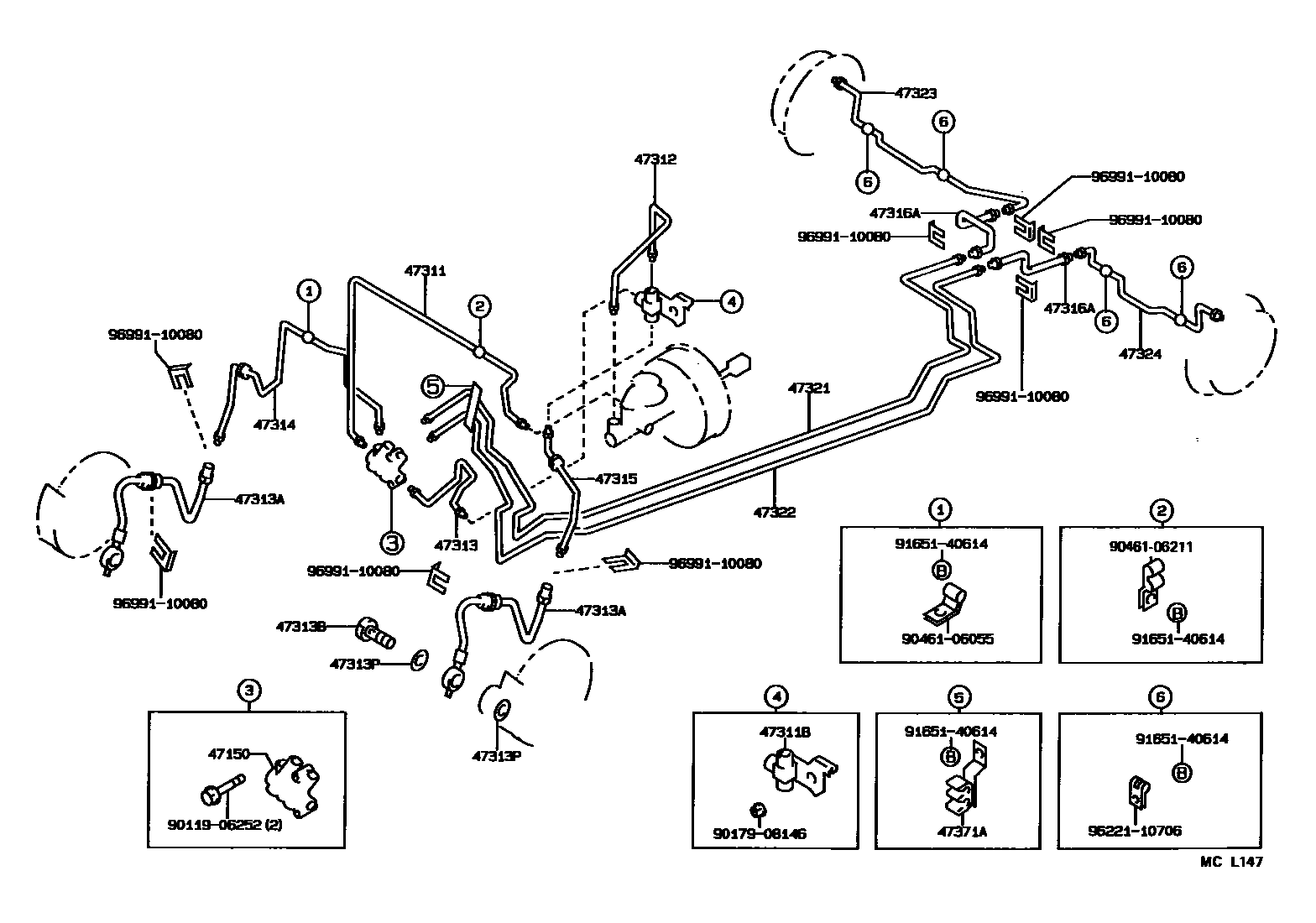

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-12110iAE95199009-199308

sub47150-12250

47311TUBE, FRONT BRAKE, NO.1

main47311-12390iAE95199009-199308

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10159iAE95199009-199308

47312TUBE, FRONT BRAKE, NO.2

main47312-12260iAE95199009-199308

47313TUBE, FRONT BRAKE, NO.3

main47313-12190iAE95199009-199308

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532iAE95199009-199308

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE95199009-199308

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE95199009-199308

47314TUBE, FRONT BRAKE, NO.4

main47314-12270iAE95199009-199308

47315TUBE, FRONT BRAKE, NO.5

main47315-12440iAE95199009-199308

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02558iAE95199009-199308

47321TUBE, REAR BRAKE, NO.1

main47321-12070iAE95199009-199308

47322TUBE, REAR BRAKE, NO.2

main47322-12240iAE95199009-199308

47323TUBE, REAR BRAKE, NO.3

main47323-12220iAE95199009-199308

47324TUBE, REAR BRAKE, NO.4

main47324-12180iAE95199009-199308

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12010iAE95199009-199308

9011906252

main90119-06252

9017908146

main90179-08146

9046106055

main90461-06055

9046106211

main90461-06211

9165140614

main91651-40614

9622110706

main96221-10706

9699110080

main96991-10080

23 parts on this diagram · 1 diagram in section
