TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

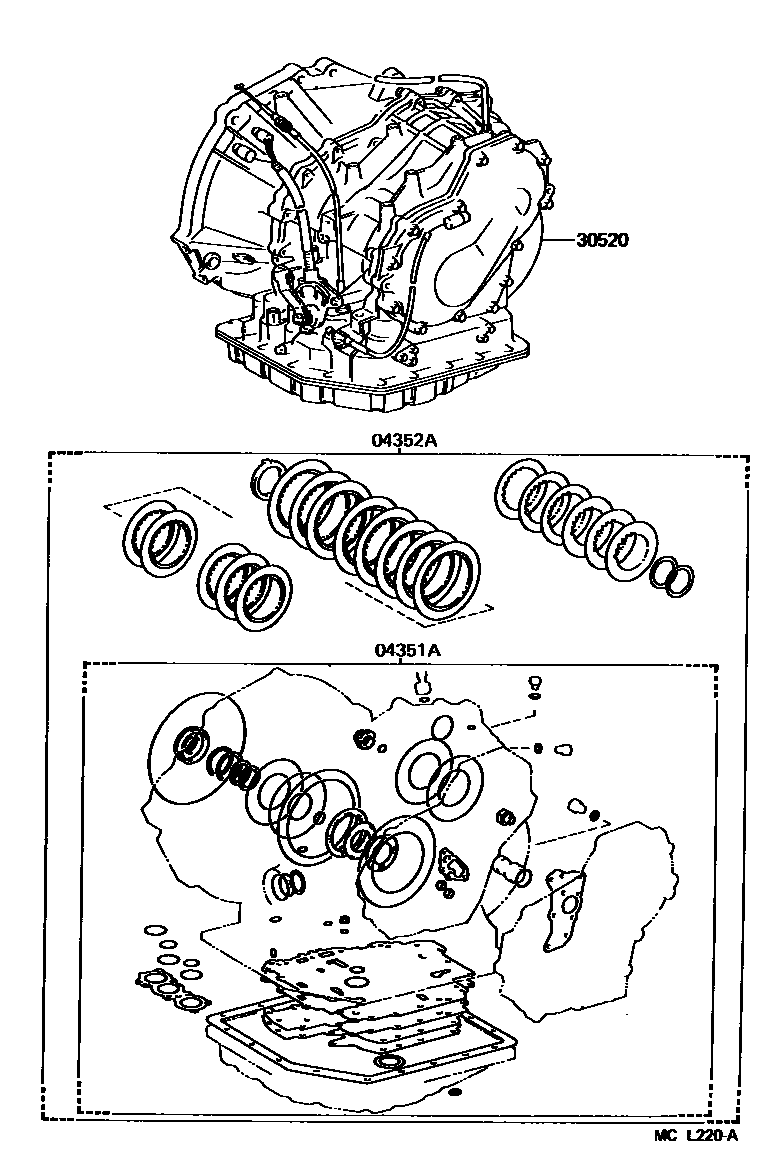

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12070i199009-199308

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-12120i199009-199201

main04352-12121i199201-199308

30520TRANSAXLE ASSY, AUTOMATIC W/TRANSFER

main30520-12022i199009-199308

3 parts on this diagram · 1 diagram in section
