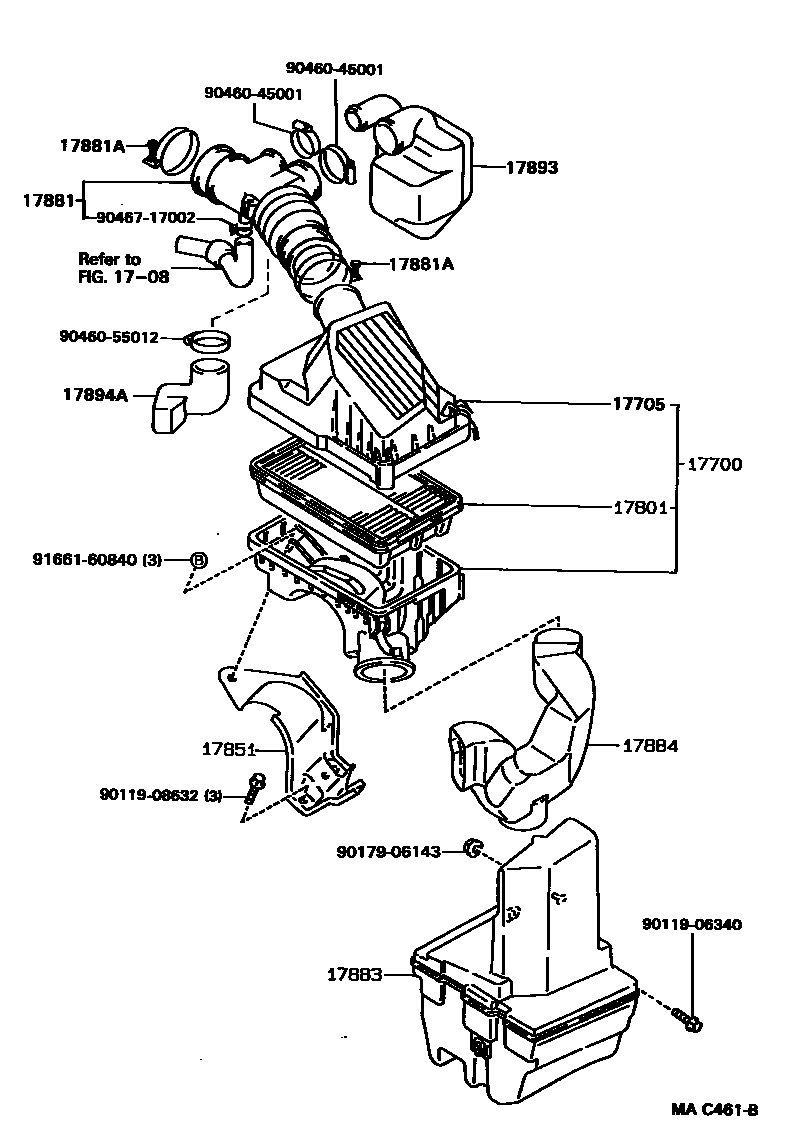

AIR CLEANER

1708VACUUM PIPING

→ Go to FIG 17-08

17700CLEANER ASSY, AIR

main17700-16680i4AFE..AE95199009-199308

17705CAP SUB-ASSY, AIR CLEANER

main17705-16360i4AFE..AE95199009-199308

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i4AFE..AE95199009-199308

17851BRACKET, AIR CLEANER SUPPORT

main17851-15010i4AFE..AE95199009-199308

17881HOSE, AIR CLEANER, NO.1

main17881-15160i4AFE..AE95199009-199308

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-73005×2i4AFE..AE95199009-199302

main96111-10730×2i4AFE..AE95199302-199308

17883HOSE, AIR CLEANER, NO.3

main17883-16041i4AFE..AE95199009-199308

17884HOSE, AIR CLEANER, NO.4

main17882-16100i4AFE..AE95199009-199308

17893RESONATOR, INTAKE AIR

main17893-16060i4AFE..AE95199009-199308

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16020i4AFE..AE95199009-199308

9011906340

main90119-06340

9011908632

main90119-08632

9017906143

main90179-06143

9046045001

main90460-45001

9046055012

main90460-55012

9046717002

main90467-17002

9166160840

main91661-60840

18 parts on this diagram · 1 diagram in section
