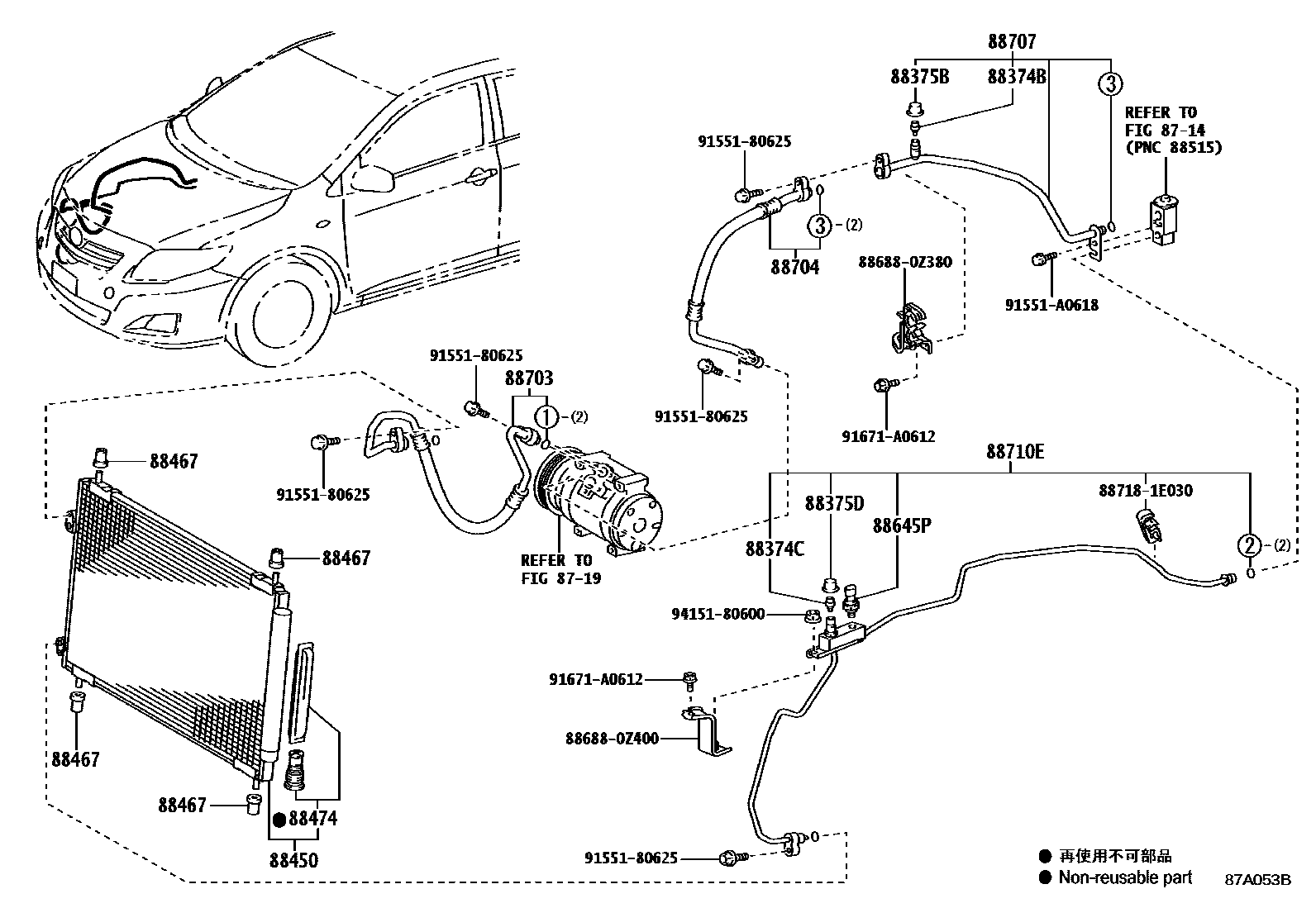

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-02010iZRE143200803-201103

88374CVALVE, SERVICE, NO.2

main88374-02010iZZE142..SEG..HTWCF200803-201003

88375BCAP, SERVICE VALVE, NO.1

main88375-02130iZZE142..SEG..HTWCF200803-201003

88375DCAP, SERVICE VALVE, NO.2

main88375-02120iZRE14#201103-201403

88450CONDENSER ASSY, W/RECEIVER

main88450-02390iZRE143,ZZE14#..BZ,MXC200803

main88450-02400iZZE142..VEN200809

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iZRE143,ZZE14#200803

88474DRYER, COOLER

main88474-17010iZRE143200803-201103

88645PSWITCH, PRESSURE, NO.3

main88645-60030iZZE142..SEG..HTWCF200803-201003

88703HOSE SUB-ASSY, DISCHARGE

main88703-02550iZZE142..SEG..HTWCF200803-201003

main88703-02560iZZE142..CNG200809-201105

main88703-02680iZRE143201103-201403

main88703-02760iZRE142201103-201403

88704HOSE SUB-ASSY, SUCTION

main88704-02800iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803

main88704-02810iZZE142..HTWC..VEN200809

main88704-0Z050iZRE143201103-201403

main88704-0Z120iZRE142201103-201403

88707PIPE SUB-ASSY, SUCTION

main88707-02130iZRE14#201103-201403

main88707-02140iZZE142..CNG200809-201105

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0Z120iZZE142..SEG..HTWCF200803-201003

main88710-0Z130iZZE142..HTWC..VEN200809

main88710-0Z250iZRE14#201103-201403

886880Z380BRACKET, COOLER DIAPHRAGM

main88688-0Z380

886880Z400BRACKET, COOLER DIAPHRAGM

main88688-0Z400

887181E030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E030

9155180625

main91551-80625

91551A0618

main91551-A0618

91671A0612

main91671-A0612

9415180600

main94151-80600

21 parts on this diagram · 5 diagrams in section
