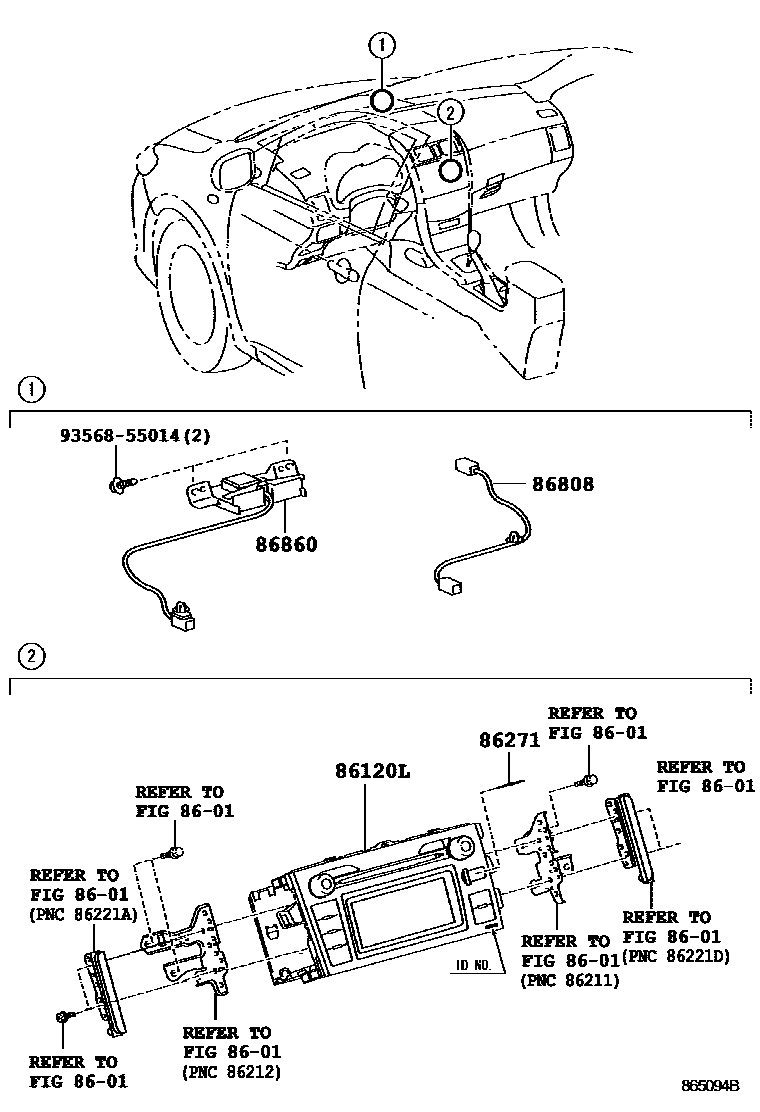

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-02160iZRE143201303-201309

PIONEER,ID=P10427

main86100-02161iZRE143201310-201403

PIONEER,ID=P10427

86271DISC, DISC PLAYER

main86271-12120iZRE143201311-201403

MICRO SD CARD

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-12060iZRE143201303-201403

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

86860ANTENNA ASSY, NAVIGATION

main86860-12070iZRE143201303-201403

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
