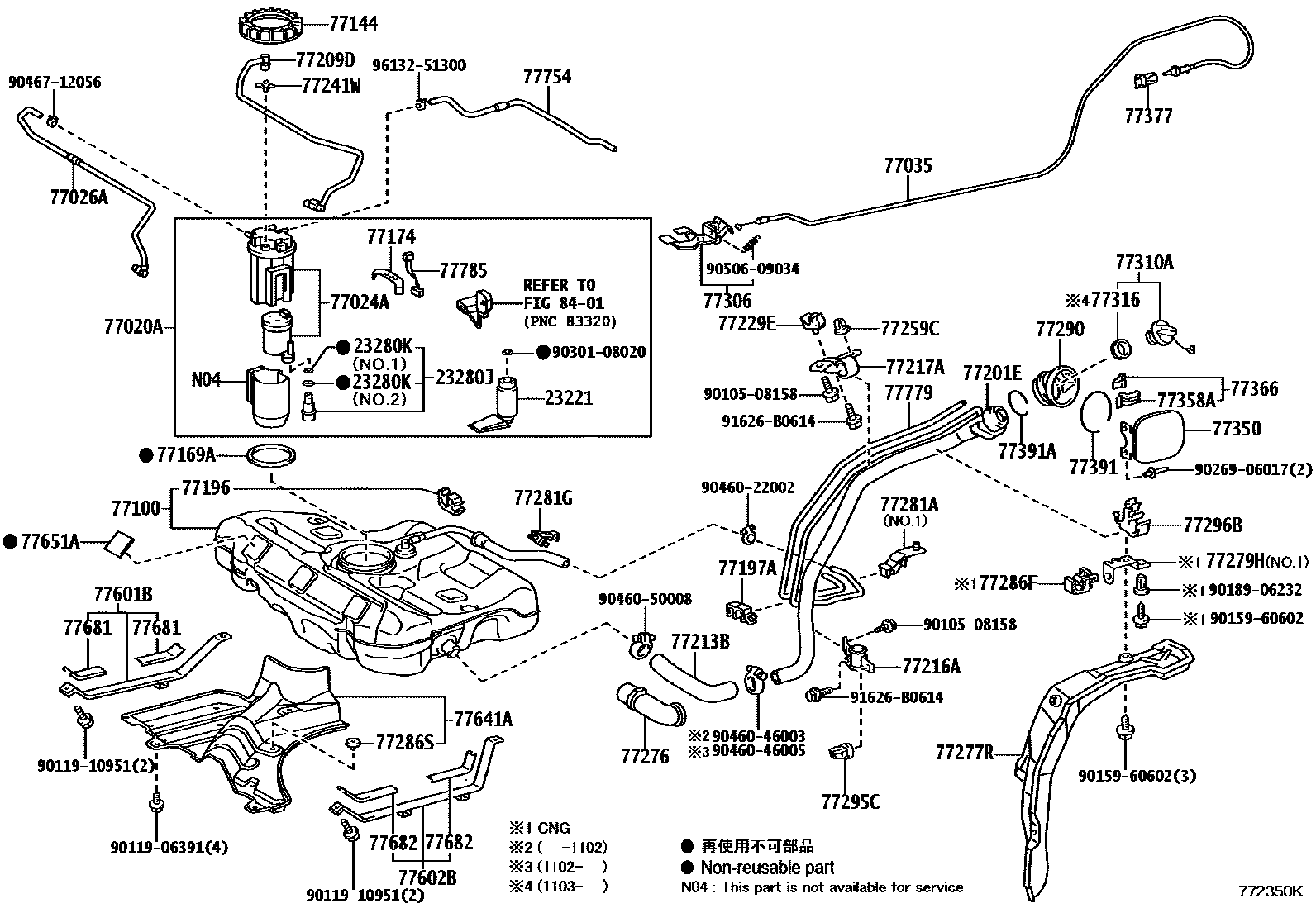

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK,W(CNG) 0004 1SUB FUEL TANK 0005 1FUEL TANK,W(CNG) 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE,W(CNG)

23221PUMP, FUEL

main23220-22130i2ZRFE..ZRE142201103-201203

main23220-22131i2ZRFE..ZRE142201204-201403

main23220-22180i1ZZFE,3ZZFE..ZZE14#200803-201105

main23220-22181i1ZZFE..ZZE142201204

main23221-0D030i2ZRFBE,3ZRFBE..ZRE14#201303-201403

main23221-0D220i1ZZFBE,3ZRFBE..ZRE143,ZZE142200803-201012

main23221-0D221i2ZRFBE,3ZRFBE..ZRE14#201103-201302

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-0D010i1ZZFBE..ZZE142..SEG200803-201003

main23280-21010i1ZZFE,3ZZFE..ZZE14#..HTWC200803

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFE..ZRE142;1ZZFE..ZZE142..CNG201103

NO.1

main90301-15024i1ZZFE,3ZZFE..ZZE14#..HTWC200803

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02360iZZE142..HTWCF200803-200810

main77020-02361iZRE143,ZZE142..HTWCF200811-201103

main77020-12690iZRE142..HTWC201103-201403

main77020-12730iZZE142201105-201411

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-12101iZZE142..CNG;ZRE142..HTWC201103

main77024-12110iZZE142..HTWCF200803-201003

main77024-12111iZRE143,ZZE142..HTWCF201003-201103

main77024-12112iZRE14#..HTWCF201104-201403

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-02060iZZE142..CNG200803-201105

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02310iZZE142..SEG..HTWCF200803-201003

77100TANK ASSY, FUEL

main77001-02450iZZE142..CNG;ZRE142..HTWC201103

main77001-02460iZRE143200803-201103

main77100-02A00iZZE142..CNG200906-201105

GASOLINE SPEC,W(CNG); W(CNG)

77144RETAINER, FUEL PUMP GAUGE

main77144-02100iZRE14#..HTWCF201103-201403

SUB TANK

main77144-52030iZRE14#;ZZE142..CNG201103

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02080iZZE142..SEG..HTWCF200803-201003

77174SUPPORT, FUEL SUCTION, NO.1

main77174-12030iZZE142..CNG200803-201105

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12080iZRE143200803-201103

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77196-12060iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02300iZZE142..CNG200803-201105

main77201-02301iZRE142,ZZE142..CNG,HTWC201208

main77201-02310iZRE14#..HTWCF201103-201403

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02150iZZE14#..HTWC200803

main77209-02160iZZE142..XEGLI200803

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12330iZRE143200803-201103

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02130iZZE142..SEG..HTWCF200803-201003

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02090iZZE142..SEG..HTWCF200803-201003

77229ECLAMP, BREATHER TUBE

main77229-12100iZZE142..SEG..HTWCF200803-201003

77241WCLIP, TUBE JOINT

main77241-32060iZZE142..SEG..HTWCF200803-201003

77259CHOSE, FUEL

main77259-12390iZZE142..SEG..HTWCF200803-201003

77276PROTECTOR, FUEL HOSE

main77276-12050iZRE14#;ZZE142..CNG201103-201107

main77276-12130iZRE14#,ZZE142201108

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02090iZRE143200803-201103

main77277-YZB00iZZE142201105

77279HRETAINER, FUEL FILLER PIPE PROTECTOR

main57553-YZB00iZZE142..CNG200906-200910

GASOLINE SPEC,NO.2

77281ACLAMP, FUEL FILLER PIPE

main77281-12110iZRE14#;ZZE142..CNG201103

main77281-12160iZRE14#..HTWCF201103-201403

NO.2

77281GCLAMP, FUEL HOSE

main77281-12150iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

77286FCLAMP, FUEL TUBE, NO.2

main77286-12160iZZE142..CNG200906-201105

GASOLINE SPEC

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iZZE142..CNG200803-201105

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-02140supersedes 77291-YY020iZZE142..SEG..HTWCF200803-201003

77295CGROMMET, FUEL TUBE

main77295-12070×2iZZE142..SEG..HTWCF200803-201003

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-12070iZZE142..SEG..HTWCF200803-201003

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-12050iZZE142..SEG..HTWCF200803-201003

77310ACAP ASSY, FUEL TANK

main77300-52030iZZE142..SEG..HTWCF200803-201003

77316GASKET, FUEL TANK CAP

main77316-52040iZRE14#;ZZE142..CNG201103

77350LID ASSY, FUEL FILLER OPENING

main77350-12510supersedes 77350-YY010iZZE142..SEG..HTWCF200803-201003

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iZRE143200803-201103

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iZZE142..SEG..HTWCF200803-201003

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iZZE142..SEG..HTWCF200803-201003

77391RING, FUEL INLET BOX

main77391-12060iZZE142..SEG..HTWCF200803-201003

77391ARING, FUEL INLET BOX

main77391-12020iZZE142..CNG200803-201105

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02100iZZE142..SEG..HTWCF200803-201003

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02100iZZE142..SEG..HTWCF200803-201003

77641APROTECTOR, FUEL TANK, NO.1

main77641-02140iZRE143200803-201103

77651ACUSHION, FUEL TANK, NO.1

main77651-02100×5iZZE142..SEG..HTWCF200803-201003

main77651-12080×5iZRE14#,ZZE142201402

77681SEAT, FUEL TANK BAND, RH

main77681-02050×2iZZE142..CNG200803-201105

77682SEAT, FUEL TANK BAND, LH

main77681-02050×2iZZE142..SEG..HTWCF200803-201003

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-02100iZZE142..CNG200803-201105

main77754-02110iZZE142..SEG..HTWCF200803-201003

77779TUBE, CHARCOAL CANISTER OUTLET

main77779-02050iZZE142..CNG200803-201105

main77779-02060iZRE14#..HTWCF201103-201403

77785HARNESS, FUEL PUMP

main77785-72010iZZE142..CNG200803-201105

main77785-72011iZRE142,ZZE142..CNG,HTWC201305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

9011906391

main90119-06391

9011910951

main90119-10951

9015960602

main90159-60602

9018906232

main90189-06232

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046046005

main90460-46005

9046050008

main90460-50008

9046712056

main90467-12056

9050609034

main90506-09034

91626B0614

main91626-B0614

9613251300

main96132-51300

65 parts on this diagram · 8 diagrams in section
