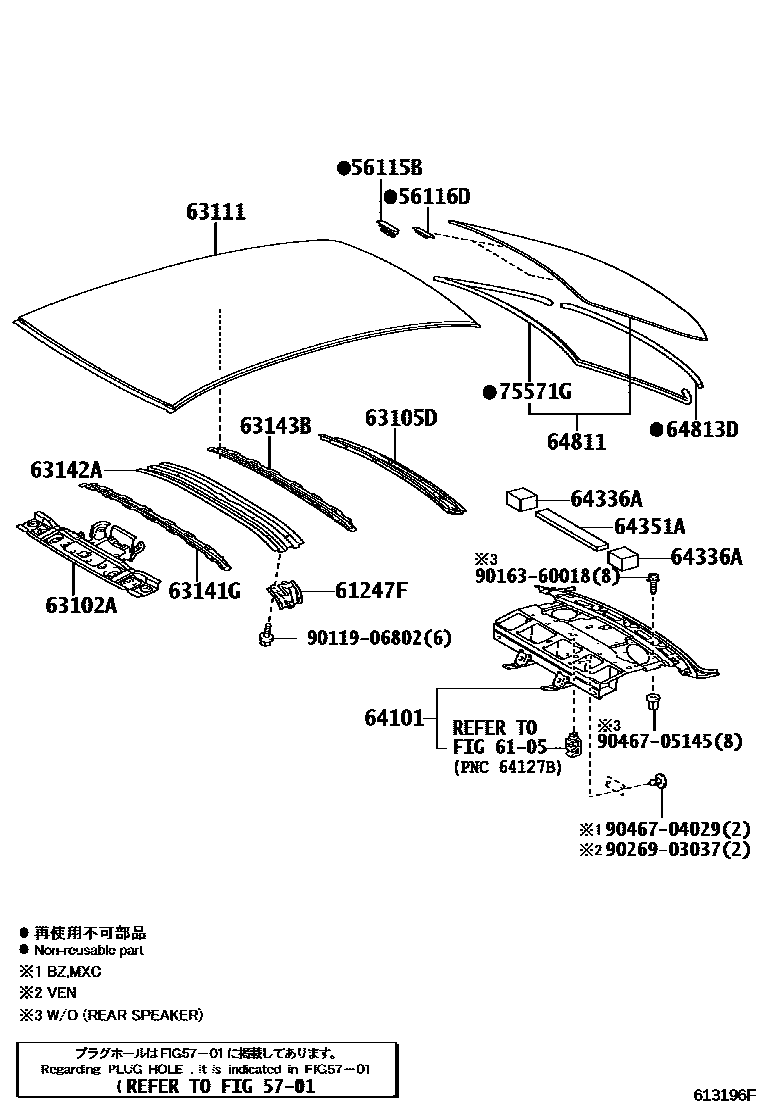

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iZZE142..SEG..HTWCF200803-201003

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iZZE142..SEG..HTWCF200803-201003

5701HOLE PLUG

→ Go to FIG 57-01

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12050×2iZZE142..SEG..HTWCF200803-201003

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12300iZZE142..SEG..HTWCF200803-201003

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-12290iZZE142..SEG..HTWCF200803-201003

63111PANEL, ROOF

main63111-02350iZZE142..SEG..HTWCF200803-201003

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-12130iZZE142..SEG..HTWCF200803-201003

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63141-12290iZZE142..SEG..HTWCF200803-201003

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-12110iZZE142..SEG..HTWCF200803-201003

64101PANEL SUB-ASSY, UPPER BACK

main64101-02130iZZE142..XEI..CNG200906-201105

main64101-02210supersedes 64101-02220iZRE142..MTM..XEI; ZRE142..XLI201103-201403

LOW GRADE PACKAGE

main64101-02220iZZE142..SEG..HTWCF200803-201003

main64101-02250iZZE142..GLI..CNG200906-201105

64336APAD, PACKAGE TRAY TRIM SILENCER, SIDE

main64336-02040×2iZZE142..SEG..HTWCF200803-201003

64351APAD, PACKAGE TRAY TRIM, NO.1

main64351-02040iZRE143200803-201103

64811GLASS, BACK WINDOW

main64801-02090iZRE14#201103-201205

*EHT,T=3.1,GREEN

main64801-02091iZRE14#,ZZE142201206

*EHT,T=3.1,GREEN

main64801-02100iZZE142..HTWC..VEN200809

*EHT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-12180iZZE142..CNG200803-201105

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-02280iZZE142..SEG..HTWCF200803-201003

9011906802

main90119-06802

9016360018

main90163-60018

9026903037

main90269-03037

9046704029

main90467-04029

9046705145

main90467-05145

22 parts on this diagram · 1 diagram in section
