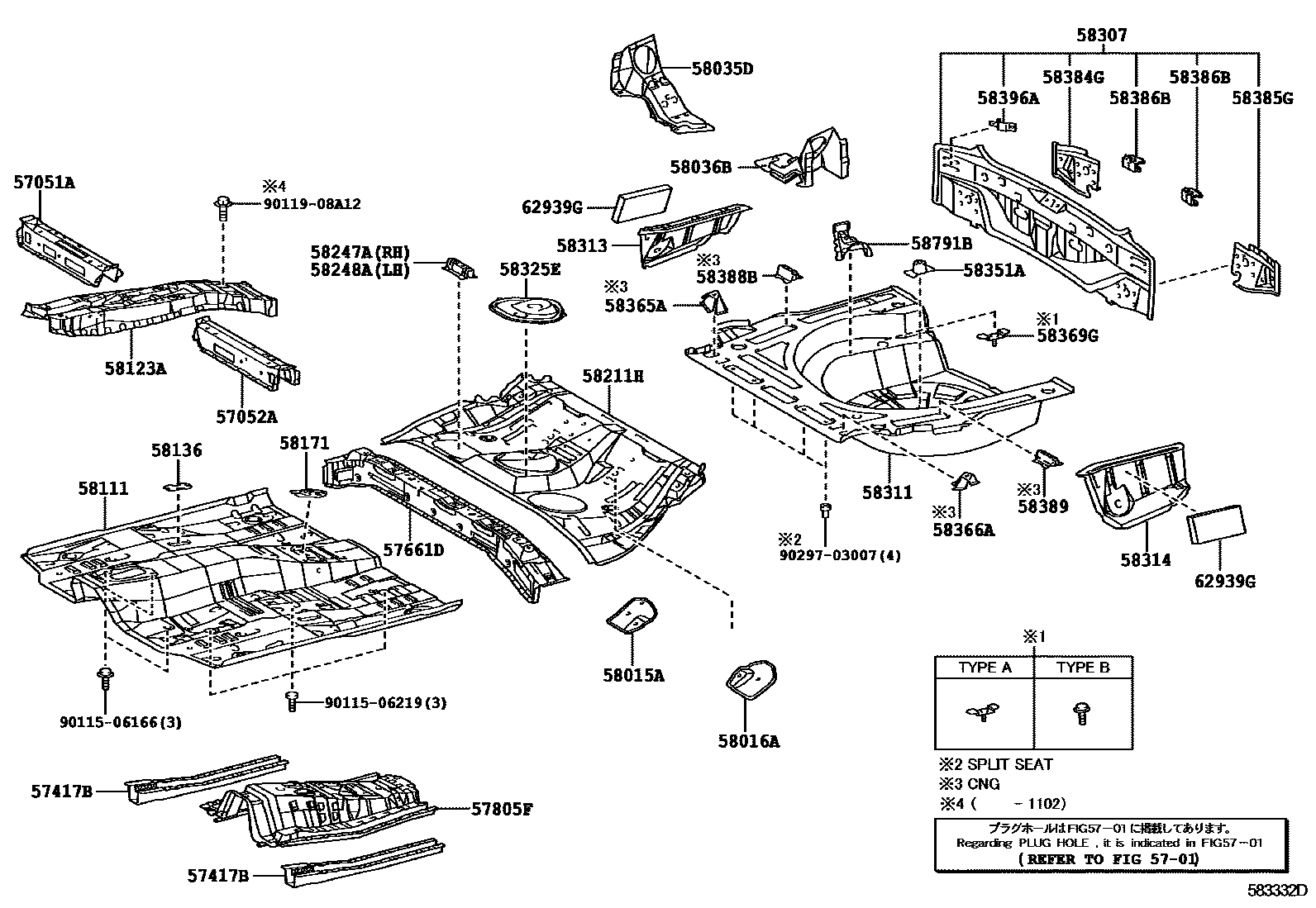

FLOOR PAN & LOWER BACK PANEL

0001 1 0004 1

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02080iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02070iZZE142..SEG..HTWCF200803-201105

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-02110iZZE142..SEG..HTWCF200803-201105

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-02140iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02130iZZE142..SEG..HTWCF200803-201010

sub57805-02131

main57805-02131iZRE143201011-201105

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02130iZRE142..HTWCF200803-201105

sub58015-02090

main58015-02130iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN)200803

LOW GRADE PACKAGE

sub58015-02090

main58015-02140iZZE142..GLI..CNG;ZRE14#..ALT,SEG,XEI200803-201303

sub58015-02100

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02110iZRE14#;ZZE142..CNG200803-201105

sub58016-02100

58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH

main58035-02030iZZE142..SEG..HTWCF200803-201105

58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH

main58036-02030iZZE142..SEG..HTWCF200803-201105

58111PAN, FRONT FLOOR

main58111-02925iZZE142..SEG..HTWCF200803-201105

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-02160iZZE142..SEG..HTWCF200803-201105

58136COVER, FRONT FLOOR HOLE

main58136-33010iZZE142..SEG..HTWCF200803-201105

58171REINFORCEMENT, PARKING BRAKE BASE

main58176-12030iZZE142..SEG..HTWCF200803-201105

58211HPAN, CENTER FLOOR

main58211-02300iZRE142..HTWCF200803-201105

main58211-02300iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN)200803

LOW GRADE PACKAGE

main58211-02310iZZE142..GLI..CNG;ZRE14#..ALT,SEG,XEI200803-201303

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12080iZRE143200803-201105

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12080iZZE142..SEG..HTWCF200803-201105

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02220iZZE142..SEG..HTWCF200803-201105

sub58307-02340

main58307-02340iZRE14#;ZZE142..CNG201103

58311PAN, REAR FLOOR

main58311-02180iZZE142..SEG..HTWCF200803-201403

main58311-02200iZZE142..XEI..CNG200906-201105

main58311-02210iZZE142..GLI200906-201105

main58311-12270iZRE14#..GLI,XEI,XLI200803-201403

58313PANEL, REAR FLOOR SIDE, RH

main58313-12300iZZE142..SEG..HTWCF200803-201105

58314PANEL, REAR FLOOR SIDE, LH

main58314-12300iZZE142..SEG..HTWCF200803-201105

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02140iZZE142..SEG..HTWCF200803-201105

58351ABRACKET, SPARE WHEEL CARRIER

main58351-33010iZZE142..SEG..HTWCF200803-201105

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-YY010iZZE142..CNG200906-201105

58366ABRACKET, FUEL TANK SUPPORT, LH

main58366-YY010iZZE142..CNG200906-201105

58369GBRACKET, FUEL TUBE, NO.3

main58369-12020iZRE14#;ZZE142..CNG200803-201105

TYPE A:REFER ILLUST.

main90115-06166iZZE142..SEG..HTWCF200803-201403

TYPE B:REFER ILLUST.

58384GGUSSET, LOWER BACK, UPPER RH

main58384-02120iZZE142..SEG..HTWCF200803-201105

sub58384-12210

58385GGUSSET, LOWER BACK, UPPER LH

main58385-02110iZZE142..SEG..HTWCF200803-201105

sub58385-12190

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-12020iZZE142..CNG200803-201105

58388BBRACKET, PLATE REAR FLOOR

main58388-YY010iZZE142..CNG200906-201105

58389BRACKET, REAR WASHER TANK MOUNTING, NO.2

main58389-YY010iZZE142..CNG200906-201105

58396ABRACKET, WIRE HARNESS CLAMP

main82715-02E20iZZE142..SEG..HTWCF200803-201105

58791BCARRIER, JACK

main58791-02020iZZE142..SEG..HTWCF200803-201105

62939GSILENCER, QUARTER VENT

main62939-02060iZZE142..SEG..HTWCF200803-201105

9011506166

main90115-06166

9011506219

main90115-06219

9011908A12

main90119-08A12

9029703007

main90297-03007
