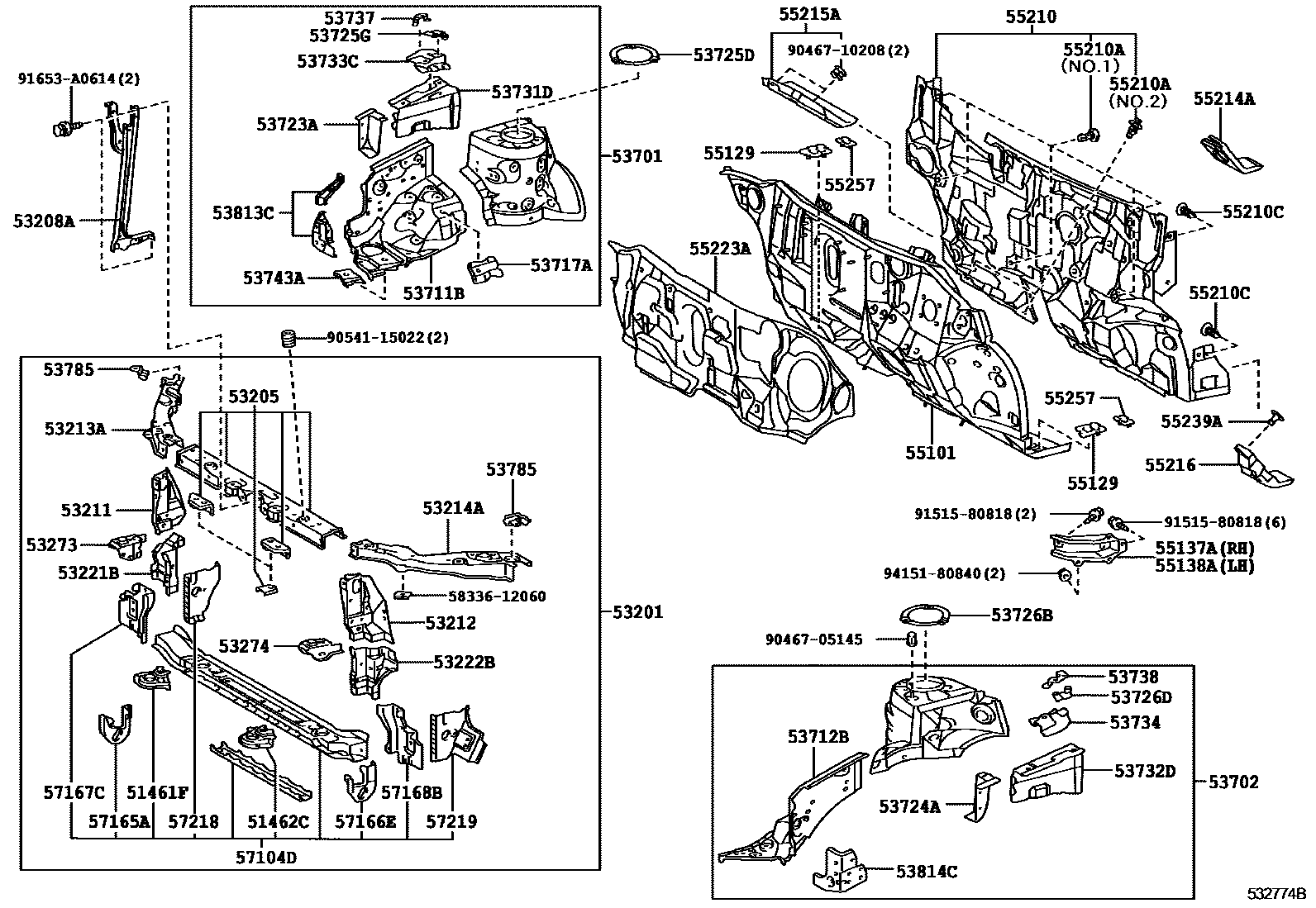

FRONT FENDER APRON & DASH PANEL

51461FBRACKET, RADIATOR MOUNTING, LOWER RH

main51461-12020iZRE143200803-201103

51462CBRACKET, RADIATOR MOUNTING, LOWER LH

main51462-12020iZZE142..SEG..HTWCF200803-201003

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02290iZRE143,ZZE14#200803

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02902iZZE142..SEG..HTWCF200803-201003

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-02130iZRE143,ZZE14#200803

53211SUPPORT, RADIATOR, RH

main53211-02160iZZE142..SEG..HTWCF200803-201003

53212SUPPORT, RADIATOR, LH

main53212-02160iZZE142..SEG..HTWCF200803-201003

53213ASUPPORT, RADIATOR, UPPER RH

main53213-02100iZZE142..SEG..HTWCF200803-201003

53214ASUPPORT, RADIATOR, UPPER LH

main53214-02090iZZE142..CNG200803-201105

53221BBRACE, RADIATOR SUPPORT APRON, RH

main53221-12020iZRE143200803-201103

53222BBRACE, RADIATOR SUPPORT APRON, LH

main53222-12020iZZE142..SEG..HTWCF200803-201003

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-12120iZZE142..SEG..HTWCF200803-201003

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-12120iZZE142..CNG200803-201105

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02240supersedes 53701-02250iZRE143,ZZE142..BZ,VEN; ZZE141200803

UP GRADE PACKAGE

main53701-02250iZZE14#..CE,XLI; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803

LOW GRADE PACKAGE

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02180iZRE14#;ZZE142..CNG201103

53711BAPRON, FRONT FENDER, FRONT RH

main53711-02110iZZE142..SEG..HTWCF200803-201003

53712BAPRON, FRONT FENDER, FRONT LH

main53712-02130iZZE142..SEG..HTWCF200803-201003

53717APLATE, FENDER APRON

main53717-12060iZZE142..SEG..HTWCF200803-201003

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iZZE142..SEG..HTWCF200803-201003

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070iZZE142..SEG..HTWCF200803-201003

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53723-12091iZZE142..SEG..HTWCF200803-201003

main53723-12110iZRE143201008-201103

53725GAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-12050iZZE142..SEG..HTWCF200803-201003

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53723-12091iZZE142..SEG..HTWCF200803-201003

main53723-12110iZRE143201008-201103

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-12050iZZE142..SEG..HTWCF200803-201003

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160iZZE142..SEG..HTWCF200803-201003

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140iZZE142..SEG..HTWCF200803-201003

53733CPATCH, FRONT FENDER APRON

main53733-12080iZZE142..SEG..HTWCF200803-201003

53734PATCH, FRONT FENDER APRON, NO.4

main53734-12080iZRE143200803-201103

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12110iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-12070iZRE14#;ZZE142..CNG201103

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-12050iZZE142..SEG..HTWCF200803-201003

53785REINFORCE, FRONT SUSPENSION UPPER ARM, NO.1

main53785-12020iZRE143200803-201103

RH

main53786-12030iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

LH

53813CEXTENSION, FRONT FENDER, RH

main53803-12060iZZE142..SEG..HTWCF200803-201003

53814CEXTENSION, FRONT FENDER, LH

main53814-12090iZZE142..SEG..HTWCF200803-201003

55101PANEL SUB-ASSY, DASH

main55101-02B20iZRE143,ZZE14#..ATM200803

main55101-02B30iZRE142..MTM;ZZE142..MTM..CNG201103

55129COVER, DASH PANEL HOLE

main55129-32030iZZE142..CNG200803-201105

RH

main55139-32010iZRE14#;ZZE142..CNG201103

LH

55137ABRACE, DASH TO FRAME, RH

main55137-02080iZRE143200803-201103

55138ABRACE, DASH TO FRAME, LH

main55138-02070iZZE142..SEG..HTWCF200803-201003

55210INSULATOR ASSY, DASH PANEL

main55210-02350iZZE142..SEG..HTWCF200803-201003

main55210-02351iZRE143201007-201103

55210ACLIP

main90467-11122×6iZZE142..CNG200803-201105

NO.1

main90467-11127×2iZZE142..SEG..HTWCF200803-201003

NO.2

55210CCLIP

main90467-08186-C0×4iZRE143,ZZE14#200803

BLACK

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-02090iZZE142..SEG..HTWCF200803-201003

main55214-02110iZRE14#;ZZE142..CNG201103

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-02090iZZE142..SEG..HTWCF200803-201003

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-02040iZZE142..SEG..HTWCF200803-201003

55223AINSULATOR, DASH PANEL, OUTER

main55223-02240iZZE142..SEG..HTWCF200803-201003

main55223-02241iZRE14#,ZZE142201303

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iZZE142..SEG..HTWCF200803-201003

55257COVER, DASH PANEL OPENING

main55257-32010×2iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-02190iZZE142..SEG..HTWCF200803-201003

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-12070iZZE142..SEG..HTWCF200803-201003

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-12020iZZE142..SEG..HTWCF200803-201003

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-02110iZZE142..SEG..HTWCF200803-201003

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-02110iZZE142..SEG..HTWCF200803-201003

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-12010iZZE142..SEG..HTWCF200803-201003

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-12010iZZE142..SEG..HTWCF200803-201003

5833612060COVER, INSPECTION HOLE

main58336-12060

9046705145

main90467-05145

9046710208

main90467-10208

9054115022

main90541-15022

9151580818

main91515-80818

91653A0614

main91653-A0614

9415180840

main94151-80840

61 parts on this diagram · 1 diagram in section
