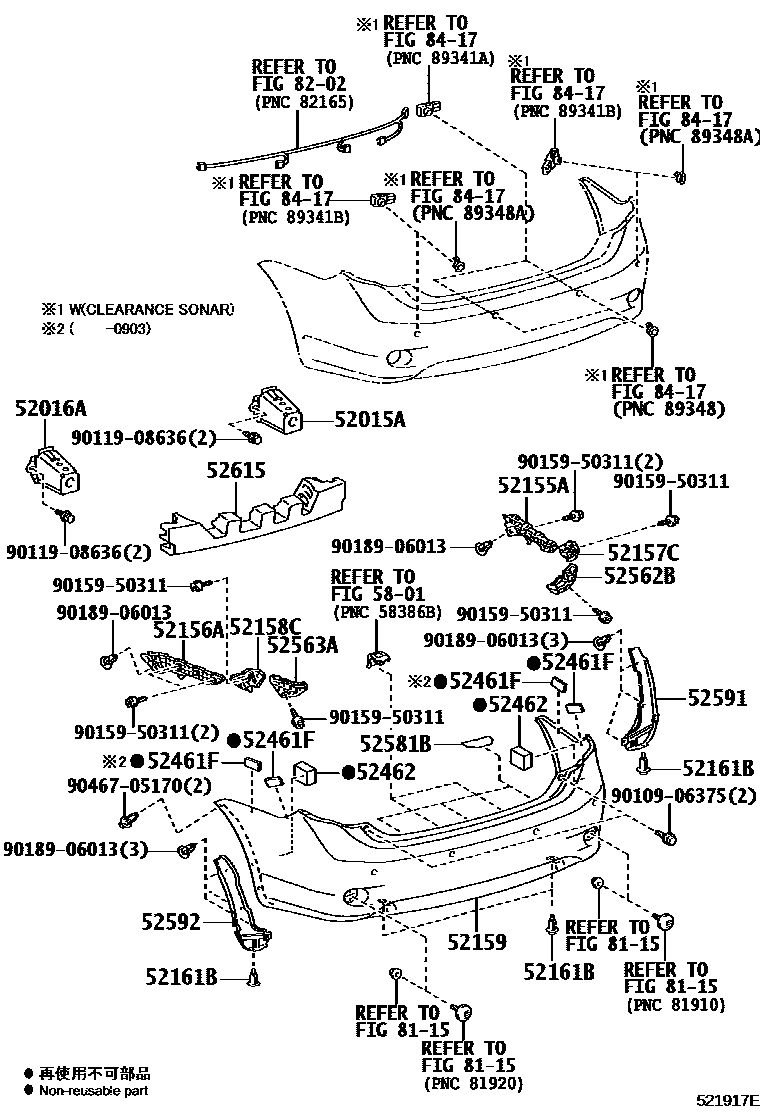

REAR BUMPER & BUMPER STAY

0001 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-02110iZZE142..SEG..HTWCF200803-201003

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-02110iZZE142..SEG..HTWCF200803-201003

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-02130iZRE143,ZZE14#200803-201105

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-02120iZZE142..SEG..HTWCF200803-201003

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-02060iZZE142..CNG200803-201105

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-02050iZZE142..SEG..HTWCF200803-201003

52159COVER, REAR BUMPER

main52159-01912iZZE142..CNG200803-201105

PAINT REQ.

main52159-01914iZRE14#;ZZE142..CNG201103-201411

PAINT REQ.

main52159-02965iZZE142..SEG..HTWC200803

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×4iZZE142..SEG..HTWCF200803-201003

52461FPAD, REAR BUMPER

main52461-02060×2iZZE142..SEG..HTWCF200903-201003

52462PAD, REAR BUMPER, RH

main52462-02110×2iZRE14#;ZZE142..CNG201103

main52462-12100×2iZZE142..CNG200803-201105

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02110iZZE142..CNG200803-201105

main52562-02160iZRE14#;ZZE142..CNG201103

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02080iZZE142..SEG..HTWCF200803-201003

main52563-02130iZRE14#;ZZE142..CNG201103

52581BPROTECTOR, REAR BUMPER

main52581-13030×3iZZE142..CNG200803-201105

52591SEAL, REAR BUMPER SIDE, RH

main52591-02200iZZE142..SEG..HTWCF200803-201003

52592SEAL, REAR BUMPER SIDE, LH

main52592-02190iZZE142..SEG..HTWCF200803-201003

52615ABSORBER, REAR BUMPER ENERGY

main52615-02120iZZE142..SEG..HTWCF200803-201003

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8202WIRING & CLAMP

→ Go to FIG 82-02

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

9010906375

main90109-06375

9011908636

main90119-08636

9015950311

main90159-50311

9018906013

main90189-06013

9046705170

main90467-05170

25 parts on this diagram · 2 diagrams in section
