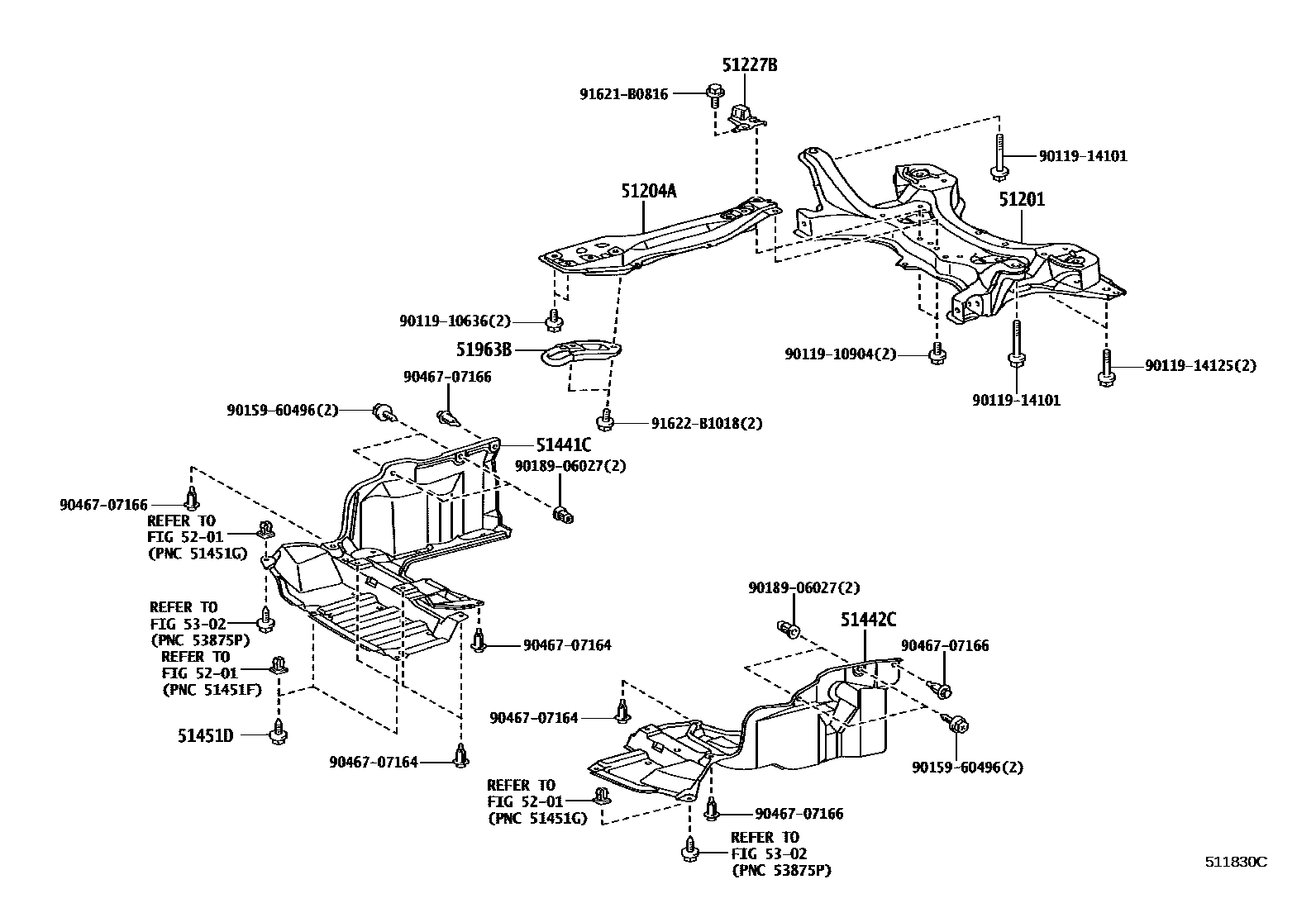

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02140iZZE14#200903-201003

main51201-02160iZZE14#200811-200903

main51201-02180iZRE14#;ZZE142..CNG201103

main51201-12431iZZE14#200803-200810

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02100iZZE14#..BZ,MXC201003-201103

main51204-02110iZRE14#201103-201403

main51204-12150iZZE142..HTWC..VEN;ZZE142..(GLI,SEG,XEI)..(CNG,HTWCF)200803-201105

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-02080iZZE14#..BZ,MXC201003

main51227-12081iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC); ZZE142..SEG..HTWCF200803-201003

51441CCOVER, ENGINE UNDER, RH

main51441-02290iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC); ZZE142..SEG..HTWCF200803-201003

main51441-02370iZZE14#..BZ,MXC201003

51442CCOVER, ENGINE UNDER, LH

main51442-02380iZZE14#..MTM..(BZ,MXC)200803-201003

main51442-02390iZZE142..ATM201105

main51442-02430iZRE142..MTM201103-201403

main51442-02440iZRE14#..ATM201103-201403

51451DSCREW, NO.1

main90159-60488×2iZRE143,ZZE14#200803-201105

51963BHOOK, TRANSPORT, FRONT RH

main51960-02120iZZE142201105

main51960-02130iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011910636

main90119-10636

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

9046707164

main90467-07164

9046707166

main90467-07166

91621B0816

main91621-B0816

91622B1018

main91622-B1018

19 parts on this diagram · 2 diagrams in section
