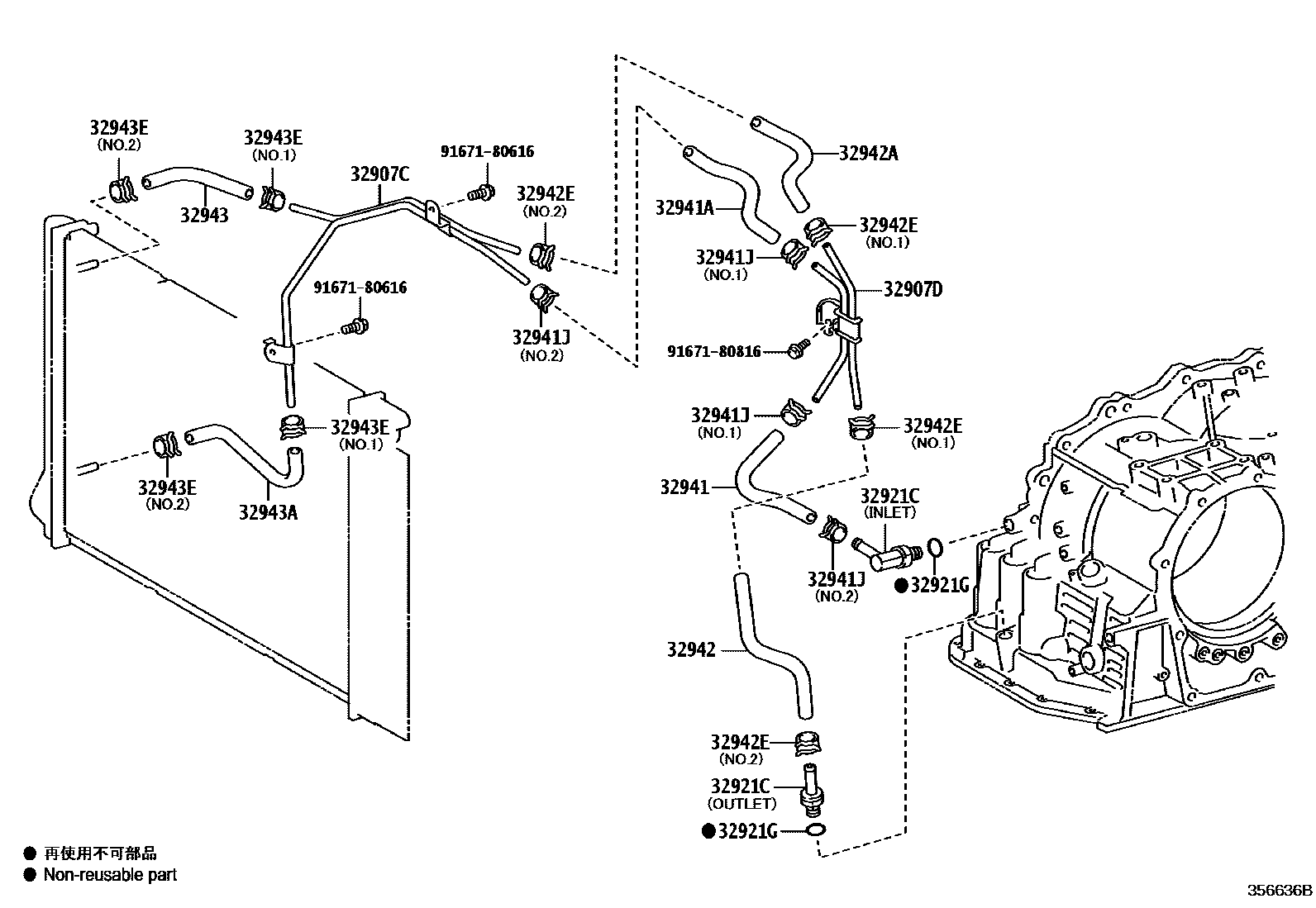

OIL COOLER & TUBE (ATM)
32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2
32921CUNION(FOR OIL COOLER TUBE)
NO.1
INLET
OUTLET
NO.2
32921GRING, O(FOR OIL COOLER TUBE UNION)
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
NO.3
NO.1
NO.2
NO.1
NO.4
32942HOSE, OIL COOLER OUTLET, NO.1
32942AHOSE, OIL COOLER OUTLET, NO.2
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
NO.3
NO.1
NO.2
NO.1
NO.2
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
NO.1
NO.1
NO.2
9167180616
main91671-80616
9167180816
main91671-80816
15 parts on this diagram · 2 diagrams in section
