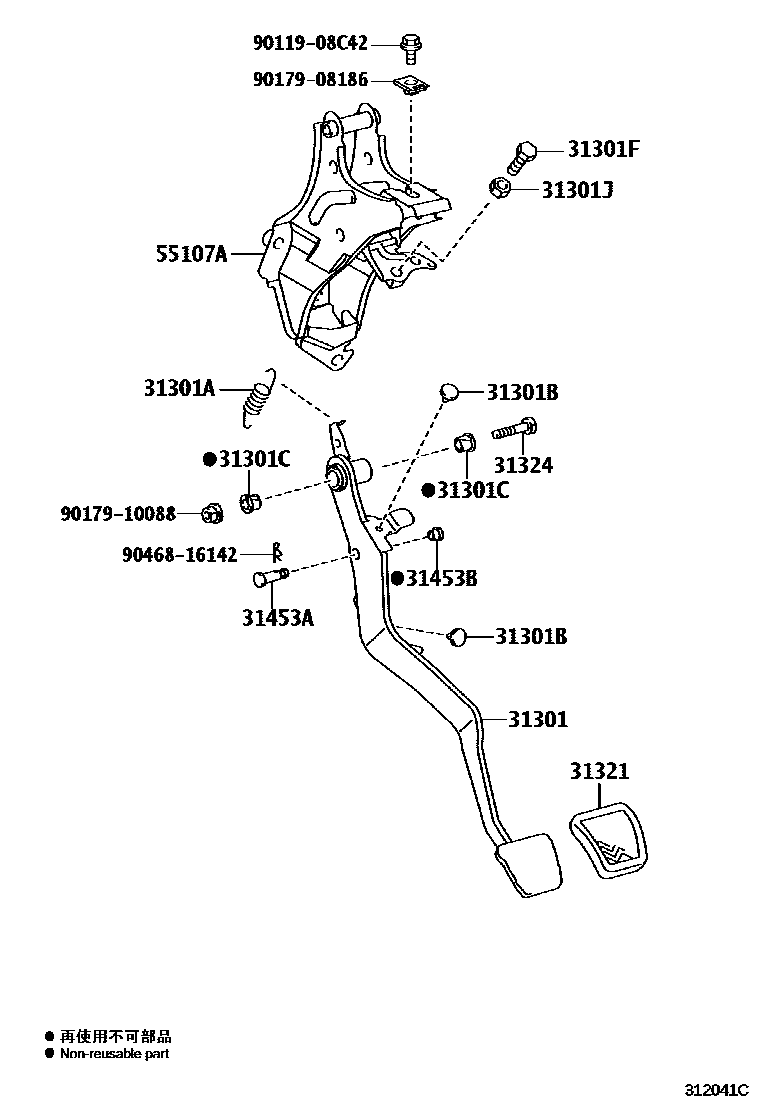

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02300iZRE142..MTM201103-201403

main31301-02340iZZE141..MTM200803-201103

main31301-02350iZZE142..MTM..(BZ,MXC)200803-201103

main31301-02370iZZE142..MTM..VEN200809-201105

main31301-02440iZZE142..MTM201105

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZZE141..MTM200803

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZE142..MTM..CNG200803-201105

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZE14#..MTM..(HTWC,HTWCF)200803-201105

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE142..MTM;ZZE142..MTM..CNG201103

main90101-10369iZZE14#..MTM..(BZ,MXC)200803-201105

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE142..MTM;ZZE142..MTM..CNG201103

main94120-41000iZZE142..MTM..VEN200803-201105

31321PAD, CLUTCH PEDAL

main31321-02050iZZE142..MTM..CNG200803-201105

31324SHAFT, CLUTCH PEDAL

main90109-10174iZZE142..MTM..CNG200803-201105

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZZE142..MTM..CNG200803-201105

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE142..MTM..CNG200803-201105

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02290iZZE141..MTM200803-201103

main55107-02300iZZE142..MTM..(BZ,MXC)200803-201105

main55107-02350iZRE142..MTM201305-201403

main55107-02360iZRE142..MTM201103-201304

sub55107-02350

main55107-02370iZZE142..MTM201105

9011908C42

main90119-08C42

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

15 parts on this diagram · 4 diagrams in section
