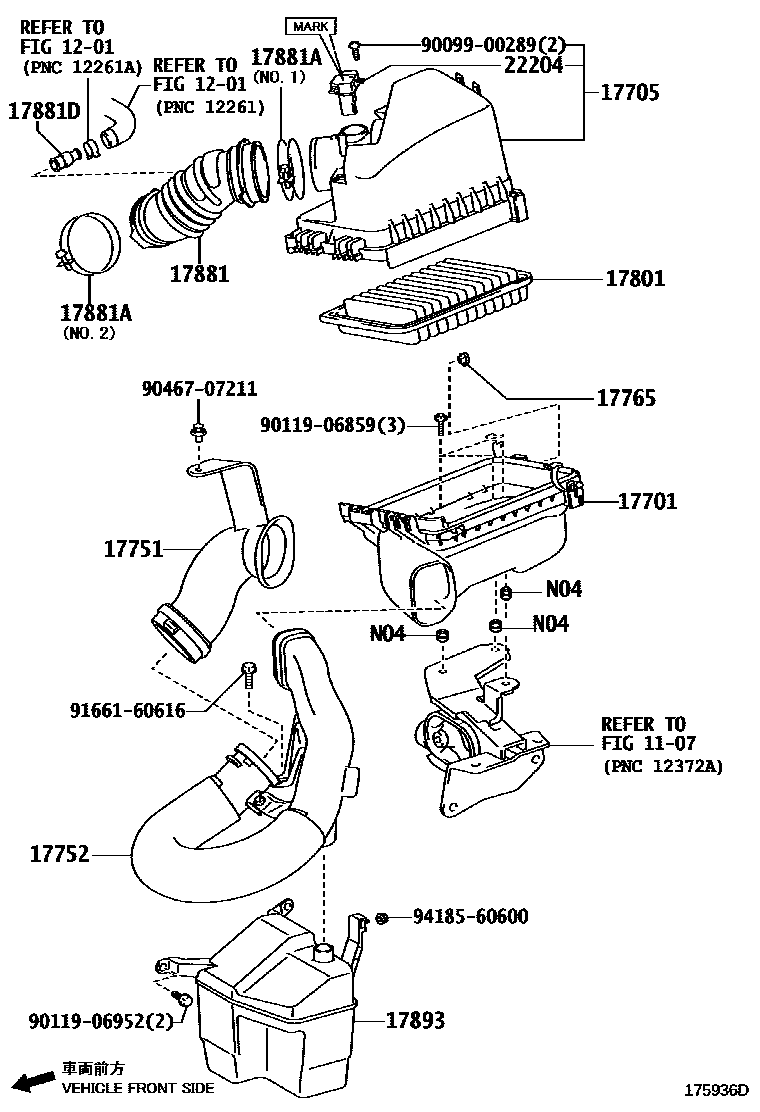

AIR CLEANER
1107
1201
17701CASE SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17765STAY, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
(L)
(L)
(J)
(J)
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.2
NO.1
NO.2
NO.1
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17893RESONATOR, INTAKE AIR
sub17893-22900
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0H010
MARK 22204-0P010
sub22204-28010
MARK 22204-0V020
MARK 22204-28010
MARK 22204-31020
9009900289
main90099-00289
9011906859
main90119-06859
9011906952
main90119-06952
9046707211
main90467-07211
9166160616
main91661-60616
9418560600
main94185-60600
19 parts on this diagram · 2 diagrams in section
