Toyota COROLLA (S.AMERICA)157 — ENGINE OIL PUMP
15100APIN, RING(FOR OIL PUMP SET)
15149GASKET, OIL STRAINER FLANGE
15193GASKET, OIL PUMP
9011606127
9151180610
91511C0635
9415080640
12 parts on this diagram · 2 diagrams in section

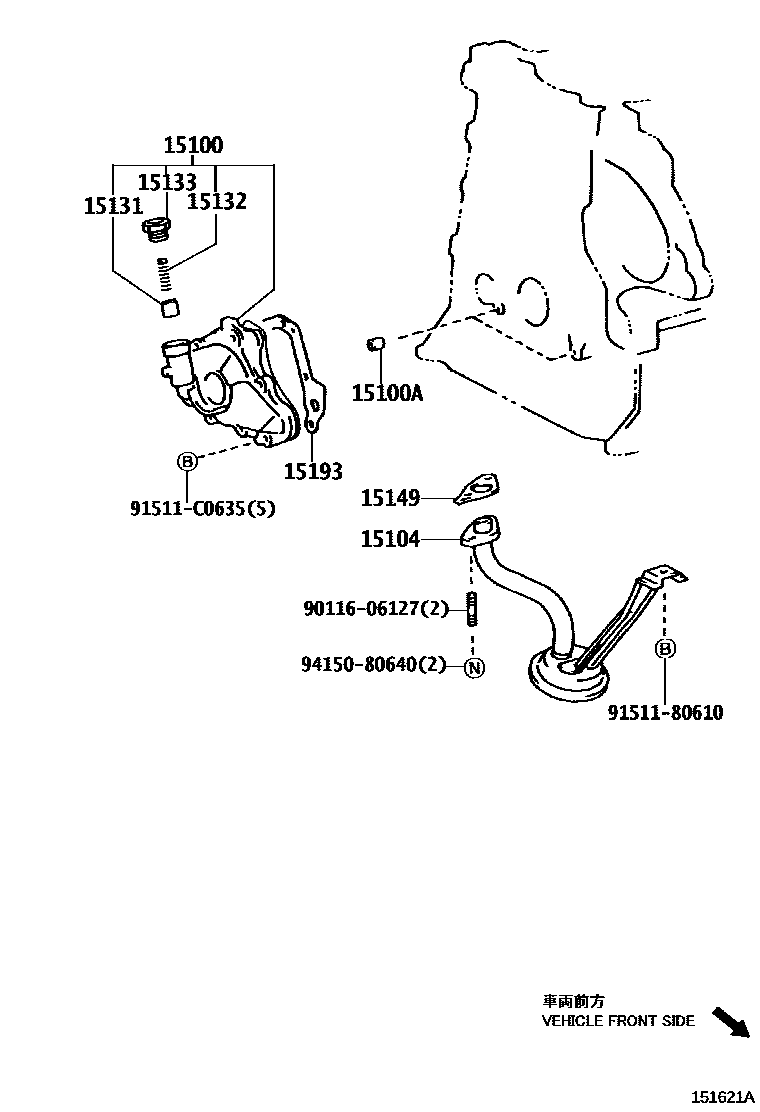

ENGINE OIL PUMP for Toyota COROLLA (S.AMERICA)157
This section contains 18 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA (S.AMERICA)157. Key components include: COVER SUB-ASSY, OIL PUMP, PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), STRAINER SUB-ASSY, OIL, VALVE, OIL PUMP RELIEF.
