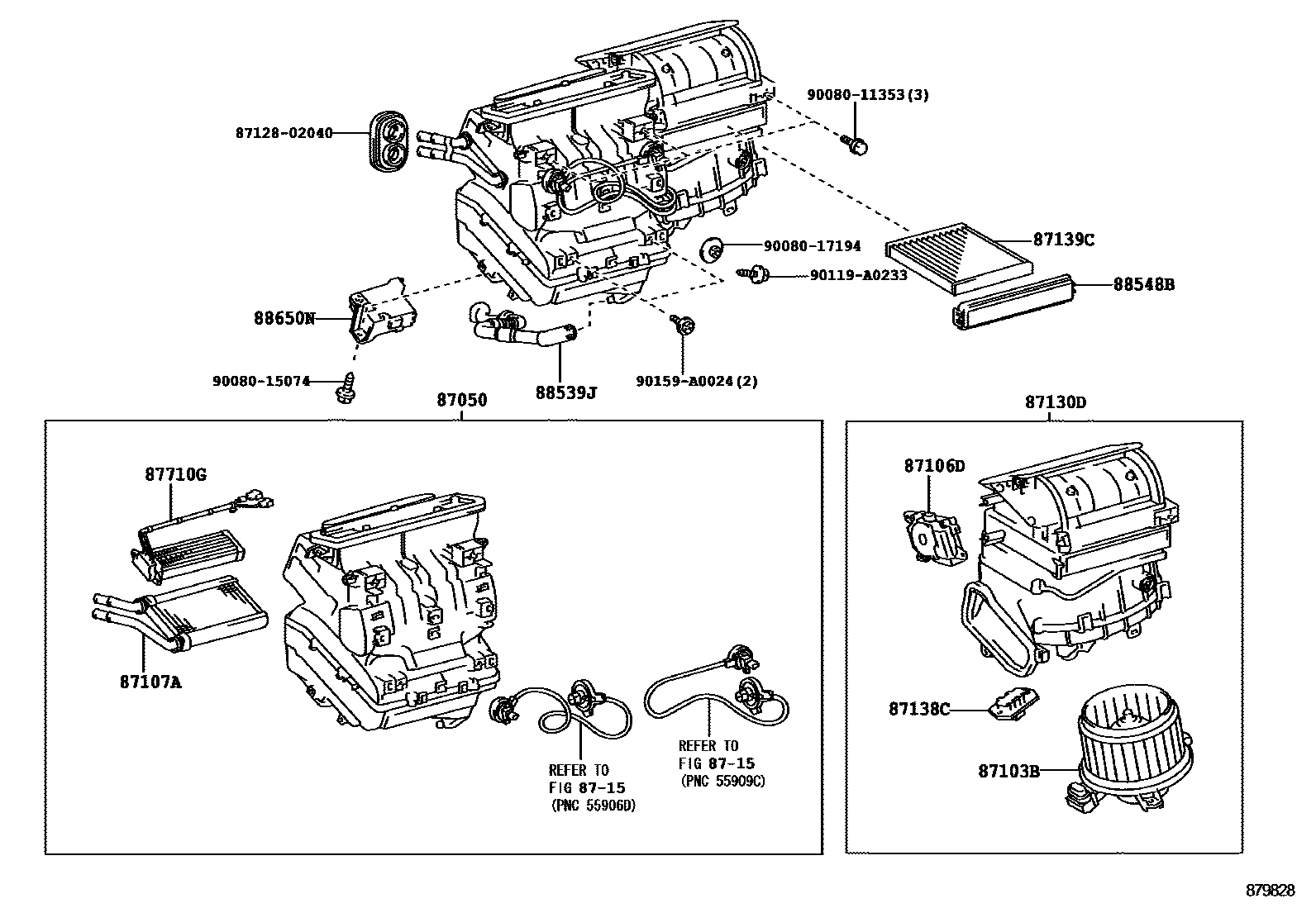

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W/O(AIR CONDITIONER) 0002 1MANUAL AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02B70iAZE141..NAP;ZRE142..NAP..USA200801-201012

main87050-02B80iAZE141..NAP..CND201112-201208

main87050-02C10supersedes 87050-02C20iZRE142..NAP..(LE,S)..CND; ZRE142..NAP..CE; ZRE142..NAP..USA200801-201012

AIR CONDITIONER-MANUAL; COLD AREA SPEC

main87050-02D80iZRE142..NAP..S..CND201112

AIR CONDITIONER-AUTO

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02200iZRE142..NAP;AZE141..NAP..USA201012

main87103-02210iAZE141..NAP..CND201112-201208

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02210iZRE142..NAP;AZE141..NAP..USA201012

main87106-02220iAZE141..NAP..CND201112-201208

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02230iAZE141,ZRE142..NAP200801-201012

87130DBLOWER ASSY

main87130-02490iAZE141..NAP..CND201112-201208

main87130-02500iAZE141..NAP..CND201012-201112

main87130-02520iZRE142..NAP201012

main87130-02670iZRE142..NAP..LE201012

AIR CONDITIONER-AUTO

main87130-02A10iAZE141..NAP; ZRE142..NAP..USA201302

WITHOUT(COLD AREA SPEC)

main87130-02A20supersedes 87130-02A10iAZE141..NAP; ZRE142..NAP..(LE,S)..USA201302

AIR CONDITIONER-AUTO; WITHOUT(COLD AREA SPEC)&AIR CONDITIONER-AUTO

87138CRESISTOR, BLOWER

main87138-02110iAZE141..NAP..CND201012-201112

87139CFILTER, CLEAN AIR

main87139-02090iAZE141,ZRE142..NAP; AZE141,ZRE142..NAP..(LE,STD,XRS)..USA200801-201012

MEXICO SPEC,MICRO DUST FILTER; MICRO DUST FILTER

main87139-07020iAZE141,ZRE142..NAP201302-201308

POLLEN FILTER

main87139-50060iZRE142..NAP;AZE141..NAP..CND201012-201204

DEODORANT FILTER

main87139-50100iZRE142..NAP;AZE141..NAP..CND201205-201308

*DPF

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87710GQUICK HEATER ASSY

main87710-02040iZRE142..NAP..CND; ZRE142..NAP..LE..USA; ZRE142..NAP..USA200801-201012

COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-AUTO

88539JHOSE, DRAIN COOLER

main88539-02160iAZE141,ZRE142..NAP201012-201302

main88539-02410iAZE141,ZRE142..NAP201302

88548BCASE, AIR FILTER

main88548-02110iAZE141,ZRE142..NAP201012-201308

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02490iAZE141..NAP;ZRE142..NAP..USA200801-201012

main88650-02520iAZE141..NAP..CND201112-201208

main88650-02530iZRE142..NAP..CND; ZRE142..NAP..USA200801-201012

COLD AREA SPEC

main88650-02770iZRE142..NAP201012

main88650-02600iZRE142..NAP..LE..CND; ZRE142..NAP..LE..USA200801-201012

AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO

main88650-02760iZRE142..NAP..USA201012

WITHOUT(COLD AREA SPEC)

main88650-02780iZRE142..NAP..S..USA201208

WITHOUT(COLD AREA SPEC)&AIR CONDITIONER-AUTO

main88650-02790iZRE142..NAP..S..USA201208

AIR CONDITIONER-AUTO

8712802040GROMMET, HEATER

main87128-02040

9008011353

main90080-11353

9008015074

main90080-15074

9008017194

main90080-17194

90119A0233

main90119-A0233

90159A0024

main90159-A0024

18 parts on this diagram · 4 diagrams in section
