SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1IGNITION & COMBINATION SWITCH0008 1DOOR,ROOF,FLOOR & LUGGAGE

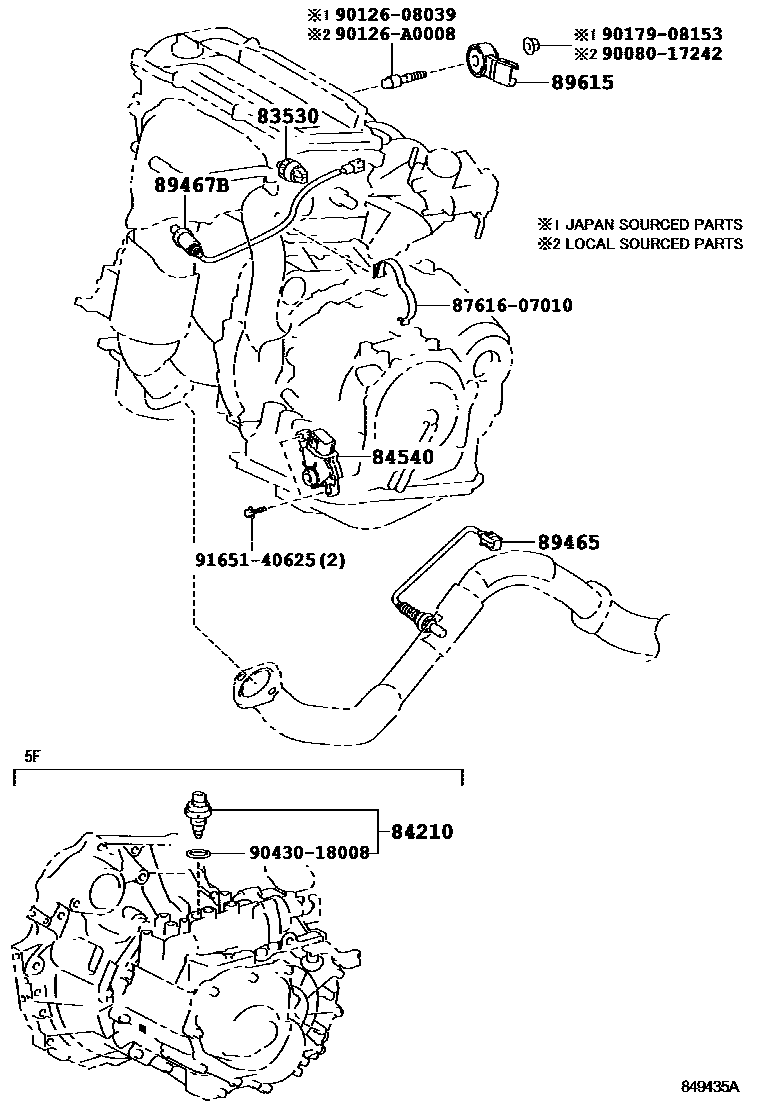

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iAZE141..NAP200908-201012

(L)

main83530-12050iZRE142..NAP201012

YAZAKI

sub83530-12060

main83530-28020iAZE141,ZRE142..NAP200801-201012

(J)

main83530-60020iAZE141..NAP201012

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAZE141..NAP..5F200801-201206

sub84210-52050

main84210-52010iZRE142..NAP..5F200801-201308

main84210-52050iAZE141..NAP..5F201206-201308

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE142..NAP..4FC200801-201308

main84540-48010iAZE141..NAP..5FC200801-201308

89465SENSOR, OXYGEN

main89465-02330iZRE142..NAP200801-201012

main89465-02340iAZE141..NAP200801-201012

89467BSENSOR, AIR FUEL RATIO

main89467-02040iZRE142..NAP200801-201012

main89467-02060iAZE141..NAP200801-201012

main89467-02070iZRE142..NAP201012

89615SENSOR, KNOCK CONTROL

main89615-06010iAZE141,ZRE142..NAP200801-201012

(L)

main89615-20090iAZE141,ZRE142..NAP200801-201012

(J)

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008017242

main90080-17242

9012608039

main90126-08039

90126A0008

main90126-A0008

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

13 parts on this diagram · 8 diagrams in section
