FUEL TANK & TUBE

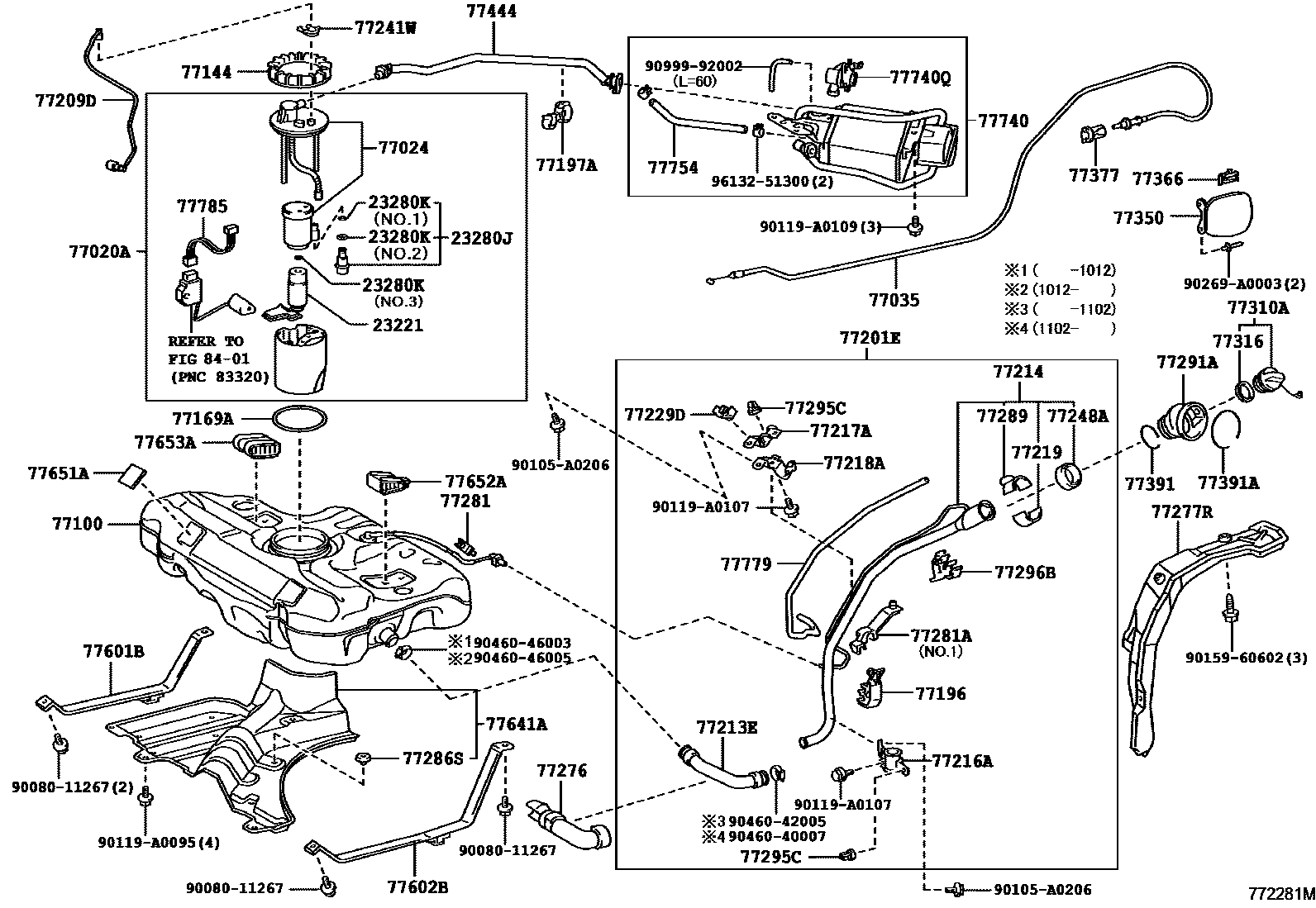

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE

23221PUMP, FUEL

main23220-0H130i2AZFE,2ZRFE..AZE141,ZRE142..NAP201012-201107

main23220-0H131i2AZFE,2ZRFE..AZE141,ZRE142..NAP201108

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2AZFE,2ZRFE..AZE141,ZRE142..NAP200801-201012

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2AZFE,2ZRFE..AZE141,ZRE142..NAP201012

NO.1

main90301-15024i2AZFE,2ZRFE..AZE141,ZRE142..NAP200801-201012

NO.2:REFER ILLUST.

main90301-A0013i2AZFE,2ZRFE..AZE141,ZRE142..NAP200801-201012

NO.3:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02291iAZE141,ZRE142..NAP200801-201012

77024TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT

main77024-02180iAZE141,ZRE142..NAP200801-201012

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02250iAZE141,ZRE142..NAP201012

77100TANK ASSY, FUEL

main77001-01070iAZE141,ZRE142..NAP200801-201008

main77001-02350iAZE141,ZRE142..NAP201008-201010

main77001-02351iAZE141,ZRE142..NAP201011-201012

77144RETAINER, FUEL PUMP GAUGE

main77144-04010iAZE141,ZRE142..NAP200801-201012

main77144-04020iAZE141,ZRE142..NAP201306

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02050iAZE141,ZRE142..NAP200801-201012

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02070iAZE141,ZRE142..NAP200801-201012

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-01010iAZE141,ZRE142..NAP200801-201012

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77210-02270iAZE141,ZRE142..NAP200801-201012

main77210-02271iAZE141,ZRE142..NAP201109-201112

main77210-02272iAZE141,ZRE142..NAP201112

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02110iAZE141,ZRE142..NAP201012

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02060iAZE141,ZRE142..NAP200801-201012

77214PIPE, FUEL TANK FILLER

main77201-02240iAZE141,ZRE142..NAP200801-201012

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02080iAZE141,ZRE142..NAP200801-201012

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02050iAZE141,ZRE142..NAP200801-201012

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02030iAZE141,ZRE142..NAP200801-201012

77219COVER, FUEL TANK FILLER PIPE

main77219-06040iAZE141,ZRE142..NAP200801-201012

main77219-0E010iAZE141,ZRE142..NAP201112

77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4

main77229-02020×2iAZE141,ZRE142..NAP201012

77241WCLIP, TUBE JOINT

main77241-02010iAZE141,ZRE142..NAP200801-201012

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-06020iAZE141,ZRE142..NAP200801-201012

77276PROTECTOR, FUEL HOSE

main77276-02020iAZE141,ZRE142..NAP200801-201012

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02080iAZE141,ZRE142..NAP200801-201012

main77277-02140iAZE141,ZRE142..NAP201205

(L)

main77277-12270iAZE141,ZRE142..NAP201109

(J)

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-02070iAZE141,ZRE142..NAP200801-201012

77281ACLAMP, FUEL FILLER PIPE

main77281-02050iAZE141,ZRE142..NAP201012-201109

NO.1

main77281-12210iAZE141,ZRE142..NAP201109

NO.2

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iAZE141,ZRE142..NAP200801-201012

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06050iAZE141,ZRE142..NAP200801-201012

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02120iAZE141,ZRE142..NAP200801-201012

77295CGROMMET, FUEL TUBE

main77295-12070×2iAZE141,ZRE142..NAP200801-201012

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-02010iAZE141,ZRE142..NAP200801-201012

77310ACAP ASSY, FUEL TANK

main77300-06040iAZE141,ZRE142..NAP200801-201012

77316GASKET, FUEL TANK CAP

main77316-06050iAZE141,ZRE142..NAP200801-200905

main77316-06070iAZE141,ZRE142..NAP201012

77350LID ASSY, FUEL FILLER OPENING

main77350-02070iAZE141,ZRE142..NAP200801-201012

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-02020iAZE141,ZRE142..NAP200801-201012

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-AA020iAZE141,ZRE142..NAP200801-201012

77391RING, FUEL INLET BOX

main77391-02041iAZE141,ZRE142..NAP200801-201012

77391ARING, FUEL INLET BOX

main77391-01040iAZE141,ZRE142..NAP200801-201012

77444HOSE, FUEL TANK VENT

main77404-02080iAZE141,ZRE142..NAP200801-201012

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12370iAZE141,ZRE142..NAP200801-201012

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12280iAZE141,ZRE142..NAP200801-201012

77641APROTECTOR, FUEL TANK, NO.1

main77641-02130iAZE141,ZRE142..NAP200801-201012

main77641-02131iAZE141,ZRE142..NAP201110

77651ACUSHION, FUEL TANK, NO.1

main77651-12080×2iAZE141,ZRE142..NAP200801-201012

77652ACUSHION, FUEL TANK, NO.2

main77652-02060iAZE141,ZRE142..NAP200801-201012

77653ACUSHION, FUEL TANK, NO.3

main77653-02010iAZE141,ZRE142..NAP200801-201012

77740CANISTER ASSY, CHARCOAL

main77740-02130iAZE141,ZRE142..NAP200801-201012

main77740-02131iAZE141,ZRE142..NAP201203

77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER

main90910-AF002iAZE141,ZRE142..NAP200801-201012

main90910-AF005iAZE141,ZRE142..NAP201303

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-02040iAZE141,ZRE142..NAP200801-201012

77779TUBE, CHARCOAL CANISTER OUTLET

main77779-02020iAZE141,ZRE142..NAP200801-201012

main77779-02021iAZE141,ZRE142..NAP201112

77785HARNESS, FUEL PUMP

main77785-02030iAZE141,ZRE142..NAP200801-201012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011267

main90080-11267

90105A0206

main90105-A0206

90119A0095

main90119-A0095

90119A0107

main90119-A0107

90119A0109

main90119-A0109

9015960602

main90159-60602

90269A0003

main90269-A0003

9046040007

main90460-40007

9046042005

main90460-42005

9046046003

main90460-46003

9046046005

main90460-46005

9099992002

main90999-92002

9613251300

main96132-51300
