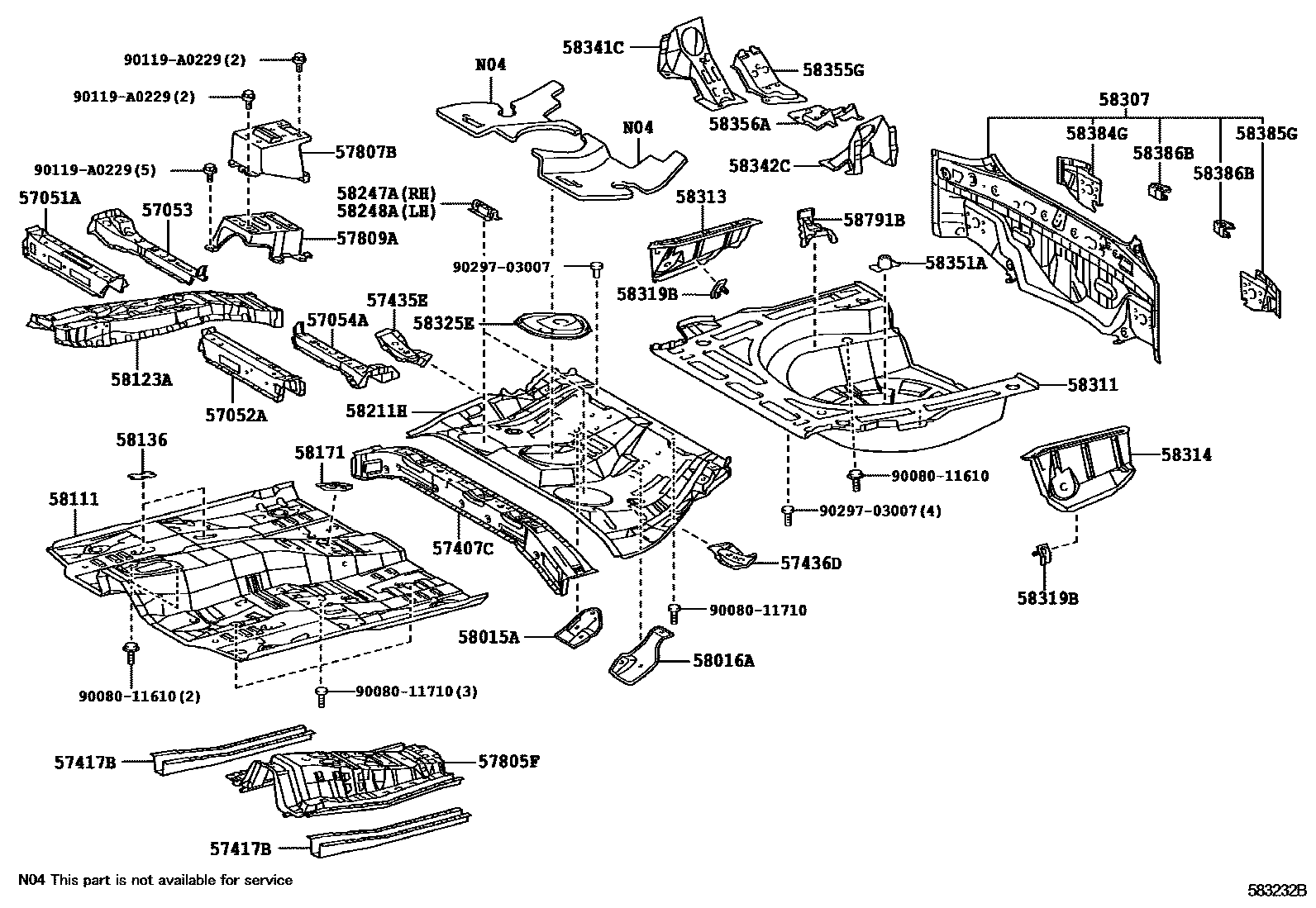

FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
(L)
(J)
58171REINFORCEMENT, PARKING BRAKE BASE
58211HPAN, CENTER FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58319BBRACKET, REAR FLOOR SIDE PANEL
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58351ABRACKET, SPARE WHEEL CARRIER
58355GREINFORCEMENT, FLOOR SIDE PLATE, RH
58356AREINFORCEMENT, FLOOR SIDE PLATE, LH
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58791BCARRIER, JACK
9008011610
main90080-11610
9008011710
main90080-11710
90119A0229
main90119-A0229
9029703007
main90297-03007
39 parts on this diagram · 1 diagram in section
