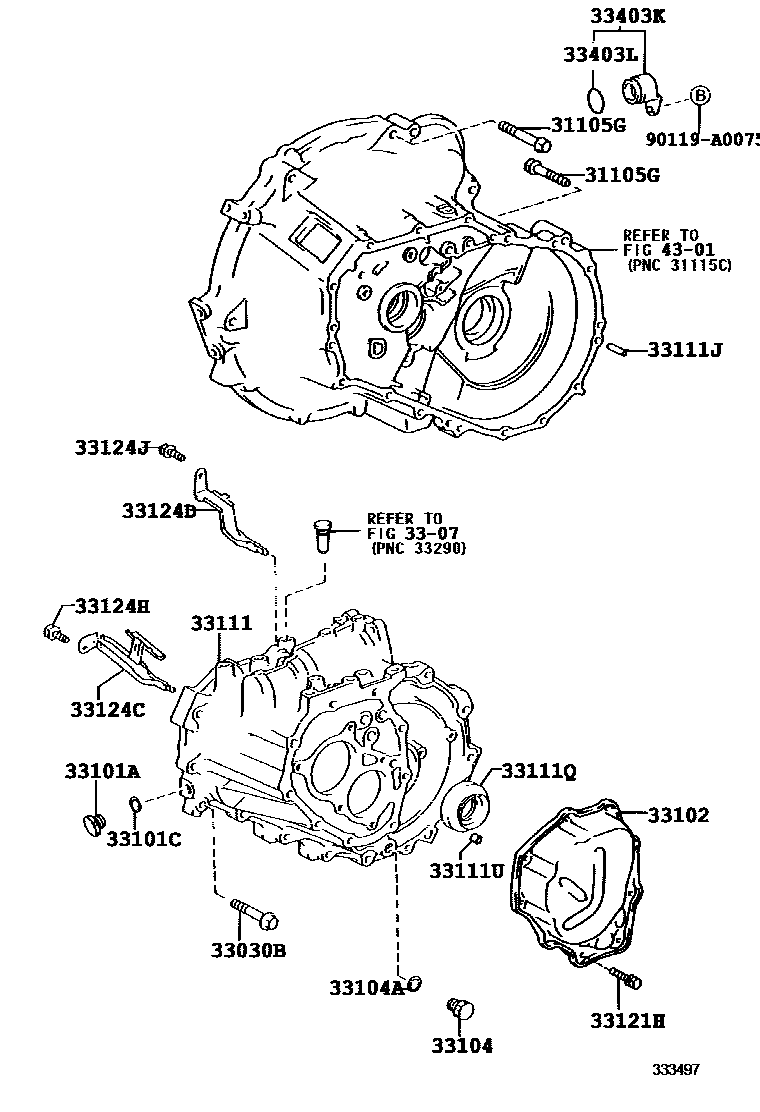

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C59 0002 1E351

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90080-10133iAZE141..NAP..5F200801-201012

*12-1.25PX74.5-25

main90080-10207iAZE141..NAP..5F200801-201012

*10-1.25PX65-30

main90080-11417×2iAZE141..NAP..5F201012

*12-1.25PX60-30

main90119-A0140×7iZRE142..NAP..5F200801-201012

*10-1.25PX45-30

main91512-61060×2iAZE141..NAP..5F201012

*10-1.25PX60-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×14iAZE141..NAP..5F200911-201012

*8-1.25PX45-27.5,NO.2

main90105-08126×17iAZE141..NAP..5F200801-200911

*8-1.25PX45-27.5,NO.1 & NO.2

main90105-08353×13iZRE142..NAP..5F200801-201012

*8-1.25PX50-30

main90105-08430×3iZRE142..NAP..5F201012

*8-1.25PX45-27.5

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iAZE141,ZRE142..NAP..5F201012

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iZRE142..NAP..5F200801-201012

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iZRE142..NAP..5F200801-201012

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAZE141..NAP..5F200801-201012

main90341-18033iZRE142..NAP..5F200801-201012

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iZRE142..NAP..5F200801-201012

33111CASE, MANUAL TRANSMISSION

main33101-42040iAZE141..NAP..5F200801-201012

main33111-12260iZRE142..NAP..5F201012

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iAZE141..NAP..5F; ZRE142..NAP..5F201012

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-35058iZRE142..NAP..5F200801-201012

main90311-35064iZRE142..NAP..5F201012

main90311-50035iAZE141..NAP..5F200801-201010

main90311-50047iAZE141..NAP..5F201101

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iZRE142..NAP..5F200801-201012

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×10iAZE141..NAP..5F201012

main90119-08429×9iZRE142..NAP..5F200801-201012

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iZRE142..NAP..5F201012

main33124-28050iAZE141..NAP..5F200801-201012

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iZRE142..NAP..5F200801-201012

main33124-28060iAZE141..NAP..5F200801-201012

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iAZE141..NAP..5F200801-201012

main91611-G0820iZRE142..NAP..5F200801-201012

33124JBOLT, W/WASHER

main91611-G0820iZRE142..NAP..5F200801-201012

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iAZE141..NAP..5F200801-201012

main33403-35230iZRE142..NAP..5F200801-201012

33403LRING, O

main96711-24018iAZE141..NAP..5F200801-201012

main96711-24030iZRE142..NAP..5F201012

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

90119A0075

main90119-A0075

21 parts on this diagram · 2 diagrams in section
