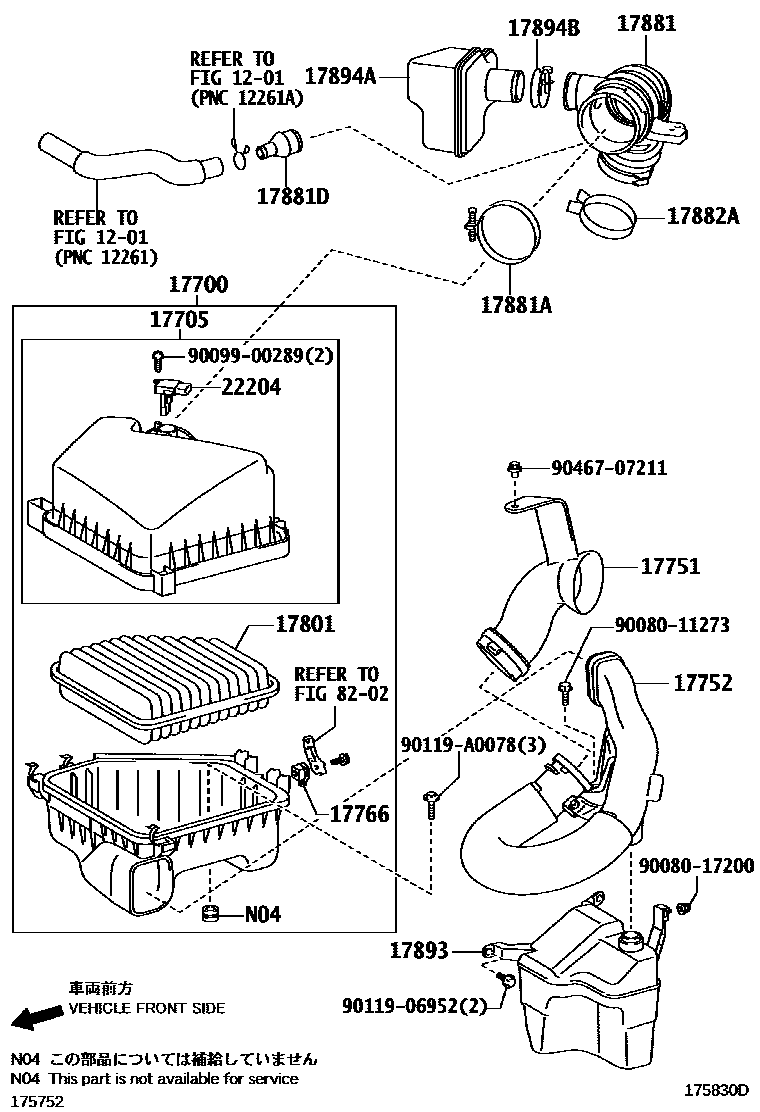

AIR CLEANER
1201
17705CAP SUB-ASSY, AIR CLEANER
sub17705-0H151
sub17705-0H152
sub17705-0T041
sub17705-0T042
sub17705-0T043
17751INLET, AIR CLEANER, NO.1
17752INLET, AIR CLEANER, NO.2
17766STAY, AIR CLEANER, NO.2
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0H010
MARK 22204-0P010
MARK 22204-0V020
MARK 22204-28010
MARK 22204-31020
8202
9008011273
main90080-11273
9008017200
main90080-17200
9009900289
main90099-00289
9011906952
main90119-06952
90119A0078
main90119-A0078
9046707211
main90467-07211
22 parts on this diagram · 3 diagrams in section
