Toyota COROLLA NAP155 — VENTILATION HOSE

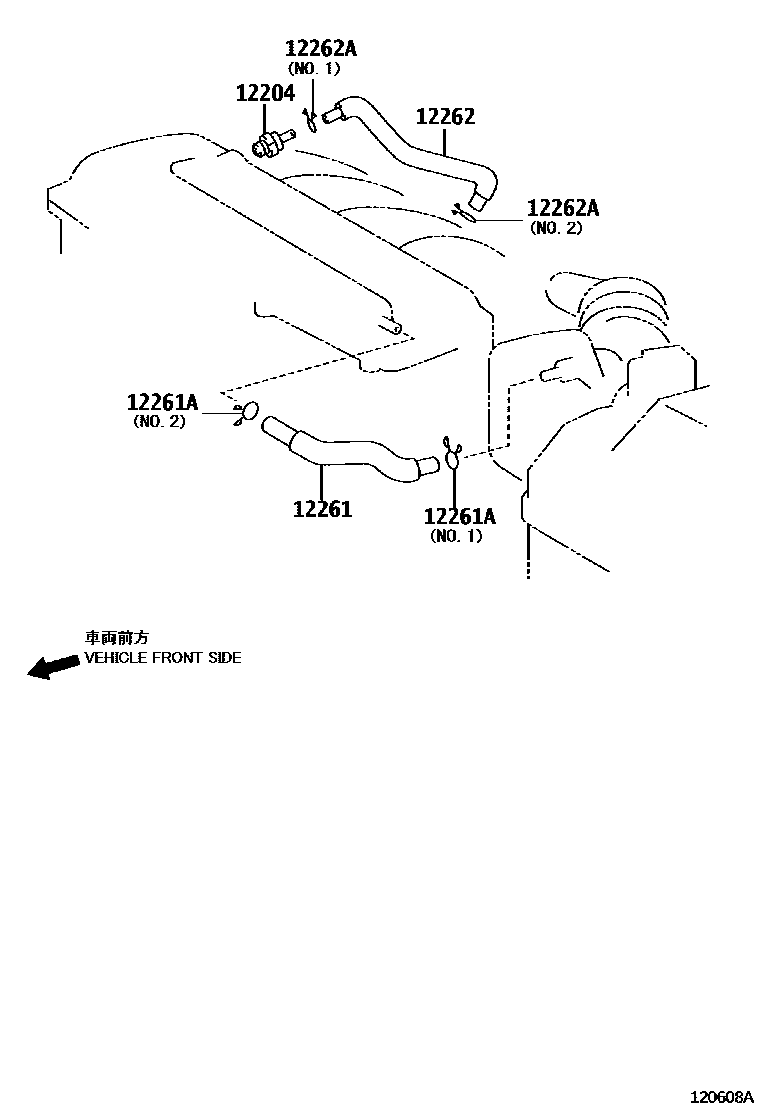

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

5 parts on this diagram · 2 diagrams in section

VENTILATION HOSE for Toyota COROLLA NAP155

This section contains 13 genuine Toyota parts for the VENTILATION HOSE system of the Toyota COROLLA NAP155. Key components include: VALVE SUB-ASSY, VENTILATION, CASE, VENTILATION, NO.1, HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE), HOSE, VENTILATION, NO.2.
