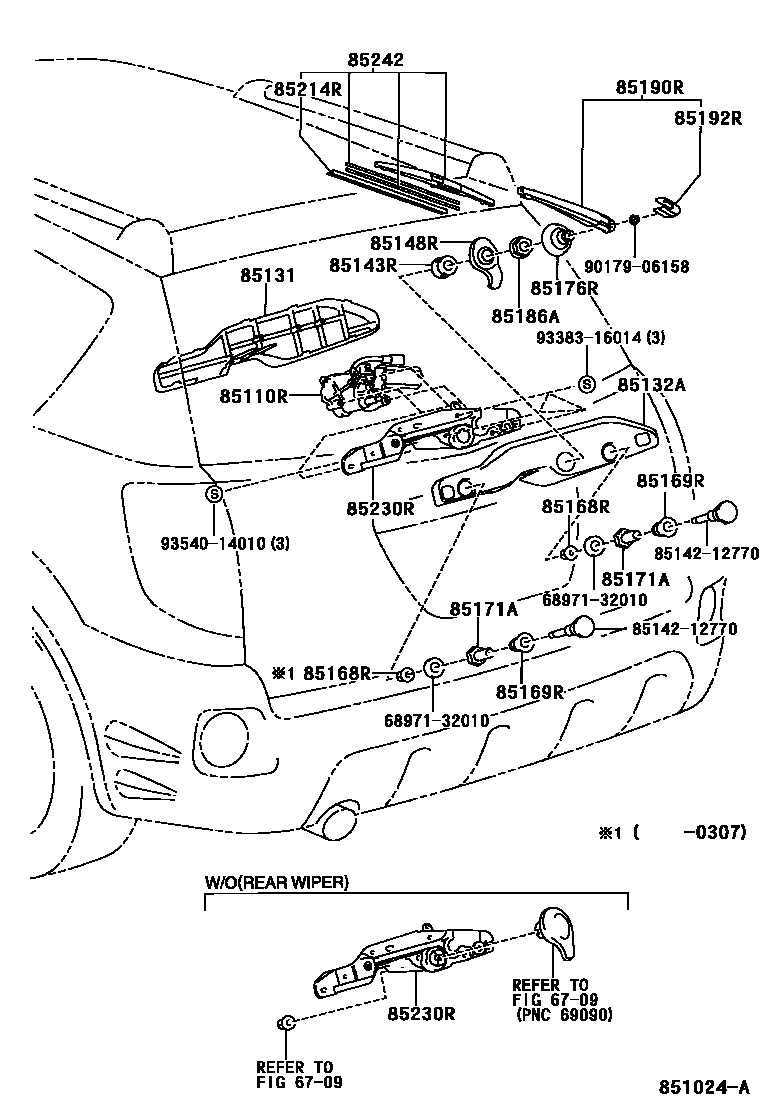

REAR WIPER
6709
85110RMOTOR ASSY, REAR WIPER
85131COVER, REAR WIPER MOTOR
85132ACOVER, REAR WIPER SHAFT
85143RGROMMET, REAR WIPER MOTOR
85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
85171AFRAME, REAR WIPER LINK
85176RCAP, REAR WIPER LINK
85186ANUT, REAR WIPER LINK PIVOT
85190RARM ASSY, REAR WIPER
85192RCOVER, REAR WIPER ARM
85214RRUBBER, REAR WIPER
85230RBRACKET ASSY, REAR WIPER
W(INTERMITTENT REAR WIPER)
W/O(REAR WIPER)
85242BLADE, RR WIPER
6897132010SPRING, BACK DOOR UPPER BALANCER
main68971-32010
8514212770SEAT, WINDSHIELD WIPER MOTOR RUBBER
main85142-12770
9017906158
main90179-06158
9338316014
main93383-16014
9354014010
main93540-14010
21 parts on this diagram · 1 diagram in section
